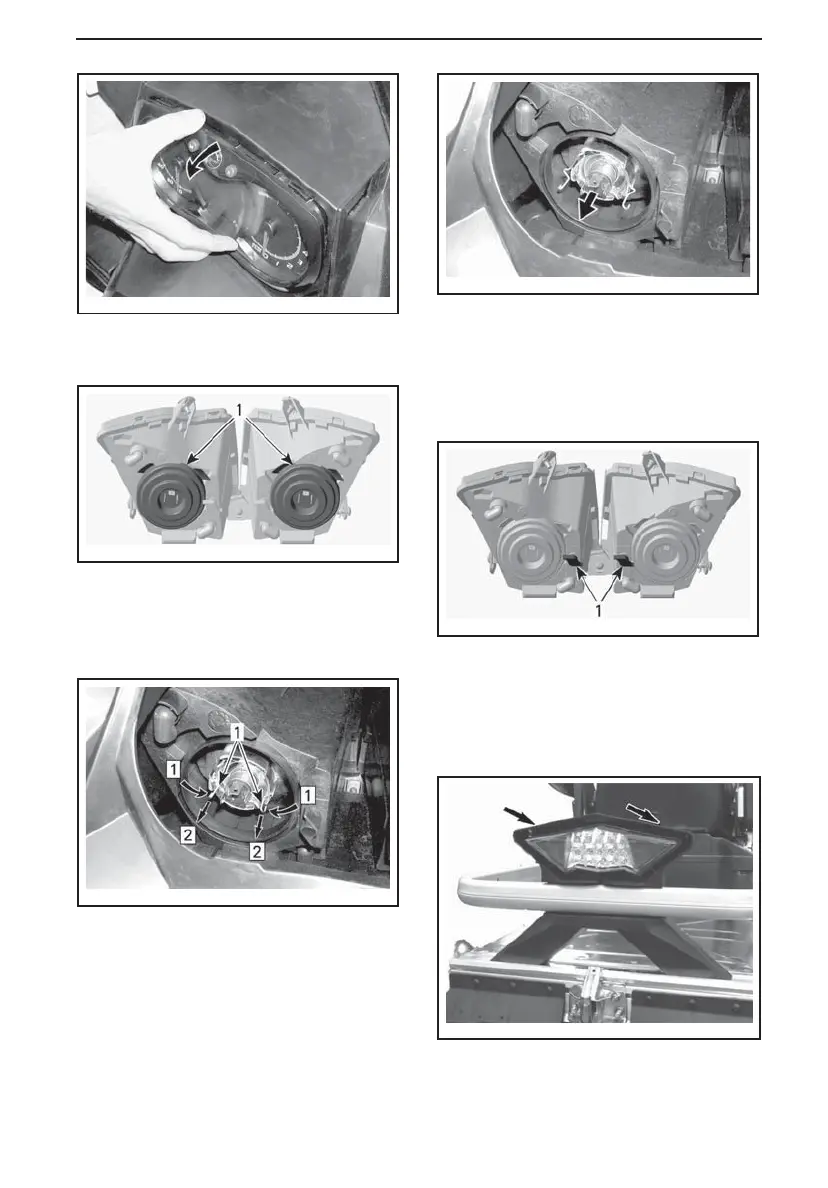

MAINTENANCE PROCEDURES
mmo2007-009-062_a
3. Unplug burnt bulb connector. Re-
move the rubber boot.
mmo2007-009-022_a
1. Rubber boots
4. Press and pull both sides of the re-
tainingclipatthesametimetore-
lease it from bulb support.
mmo2007-009-063_a
Step 1: Push both sides
Step 2: Pull to release
1. Retaining clip
5. Pull bulb and replace. Properly rein-
stall parts.
mmo2007-009-064_a
PULL BULB AND REPLACE
Headlights Beam Aiming
Remove multifunction gauge, refer to
HEADLIGHTS BULB REPLACEMENT
.
Turn knob to adjust beam height.
mmo2007-009-023_a
TYPICAL
1. Knobs
Taillight Bulb Replacement
1. C arefully pull taillight assembly by
both ends at the same time.
fmr2011-001-003
_______________
99
