PARTSTOBEINSTALLED
tbl2014-007
-133

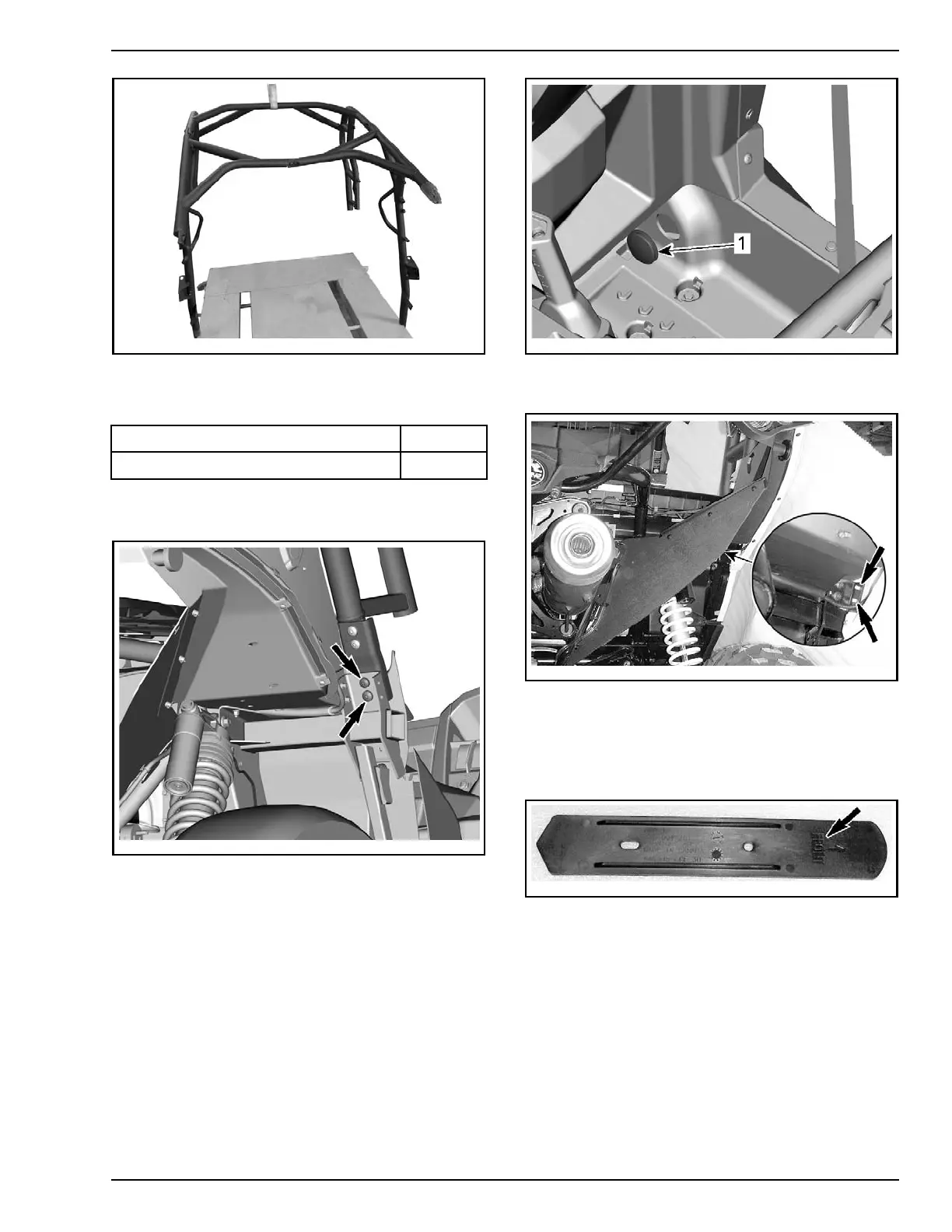

LIFTING CAGE TO PO S ITIO N IT A BO VE VEHI CLE
9. Loosely install the rear and middle cage sub-
assembly to vehicle.
PDI KIT PARTS QTY
M10 x 30 Tor
xscrews
8
10. Install screws from the rear of vehicle, besides
top of s hock absorbers.
tmr2014-117-006_a
RH REAR CAGE ATTACHMENT POINT
11. Remove plastic cap located just behind front
passenger seat and install screws and wash-
ers at the center of vehicle.
tmr2014-117
-005_a
1. Plasic cap
12. Reinstall rear lateral panels.
tbl2013-009-035_b
BESIDES
SCREWS OF REAR CAGE ATTACHMENT POINT
13. Reinstall support plates to retain the top of the
rear lateral panels.
NOTE: P
osition the "FRONT" marking on plates to-
ward fr
ont of vehicle.
tbl2013-009-037_a
"FRONT" MOLDED ON PLATE
PREDELIVERY 2014-1 13 / 34
