Technical Data MS 400‘54 Ascend
Nitrogen Level Sensor
The Nitrogen Level Sensor is inserted in the recommended nitrogen turret. 6 lights
display the nitrogen level.
Nitrogen Level Sensor Material No. Value Unit
Level Sensor Type Z122394 12/926/660
Diameter 12 mm
Overall length 926 mm
Active length 660 mm
Table A.5: Nitrogen Level Sensor

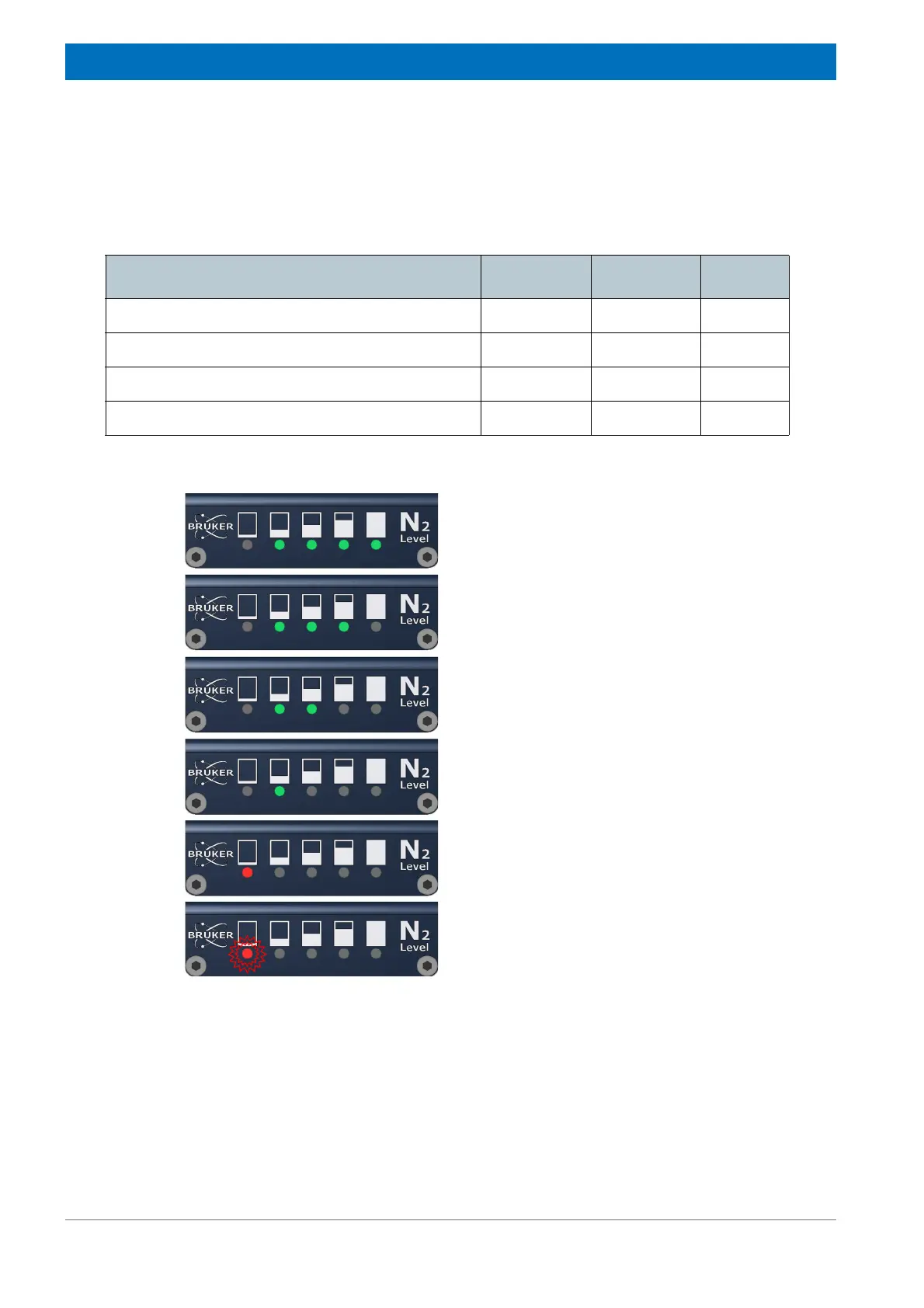

Figure A.5: Nitrogen Level Sensor
Nitrogen Level at:
more than 90 %
70 % - 90 %
50 % - 70 %
30 % - 50 %
10 % - 30 %
Schedule Refill
less than 10 %
Refill immediately
