Technical Data MS 400‘54 Ascend
Temperature Sensors
The temperature sensors (PT 100 and IBT) will be used to monitor the temperature of
the magnets during cooling and warming up of the magnet system.
PT 100
i
Measure the resistance with a maximum current of 1 mA.
Temperature Unit Resistance Unit
Room Temperature 293 K 107.8 Ω
273 K 100.0 Ω
250 K 91.0 Ω
200 K 71.1 Ω
150 K 50.9 Ω
100 K 30.0 Ω
Liquid Nitrogen 77 K 20.1 Ω

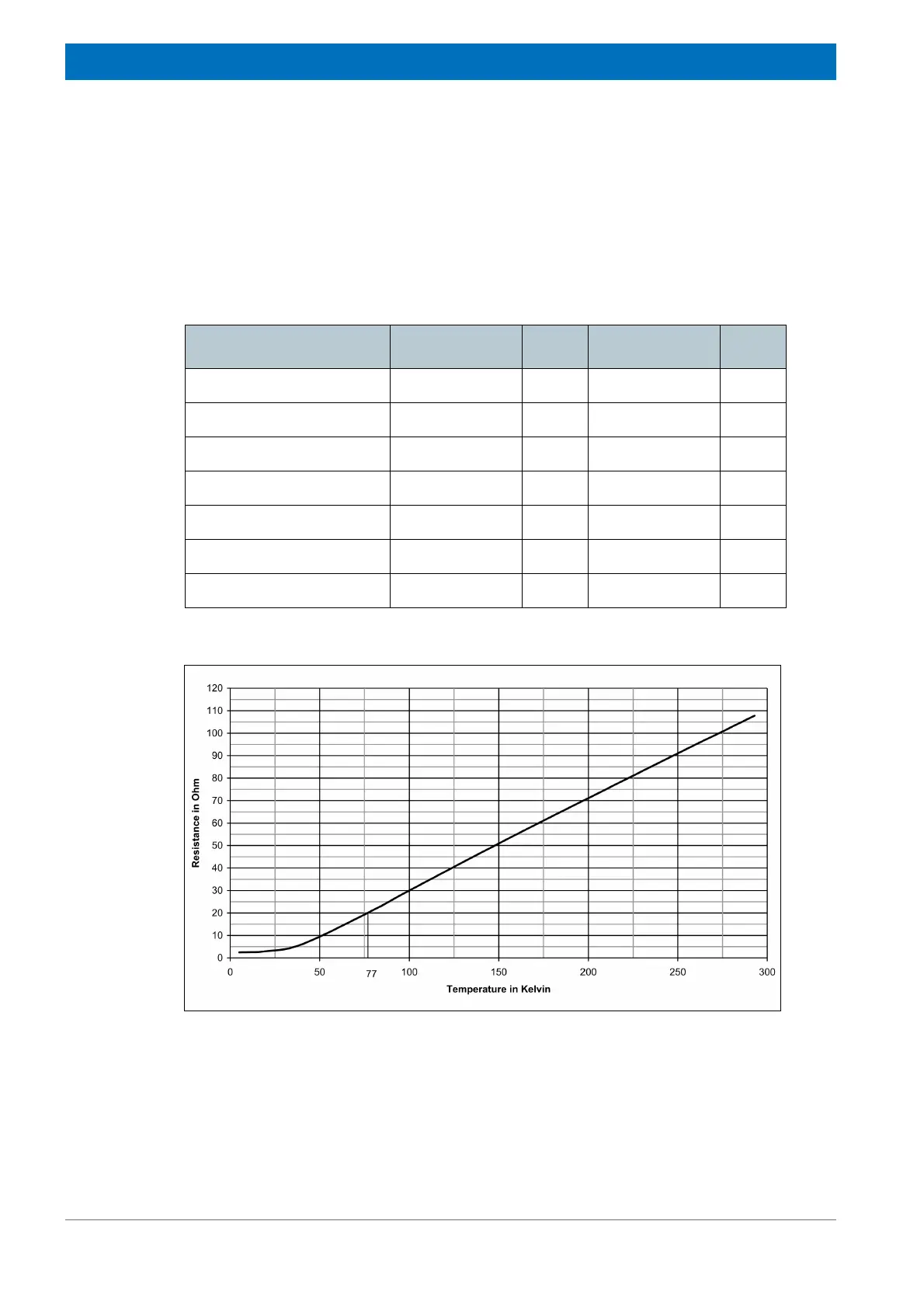

Table A.7: Characteristic Values PT 100
Figure A.7: Characteristic Curve PT 100
