Bruker BLAH1000 E - Device Rear View

Operating & Service Manual Version 002 BRUKER BIOSPIN 17 (53)
Rear Panel Description
Device Rear View 4.2.2

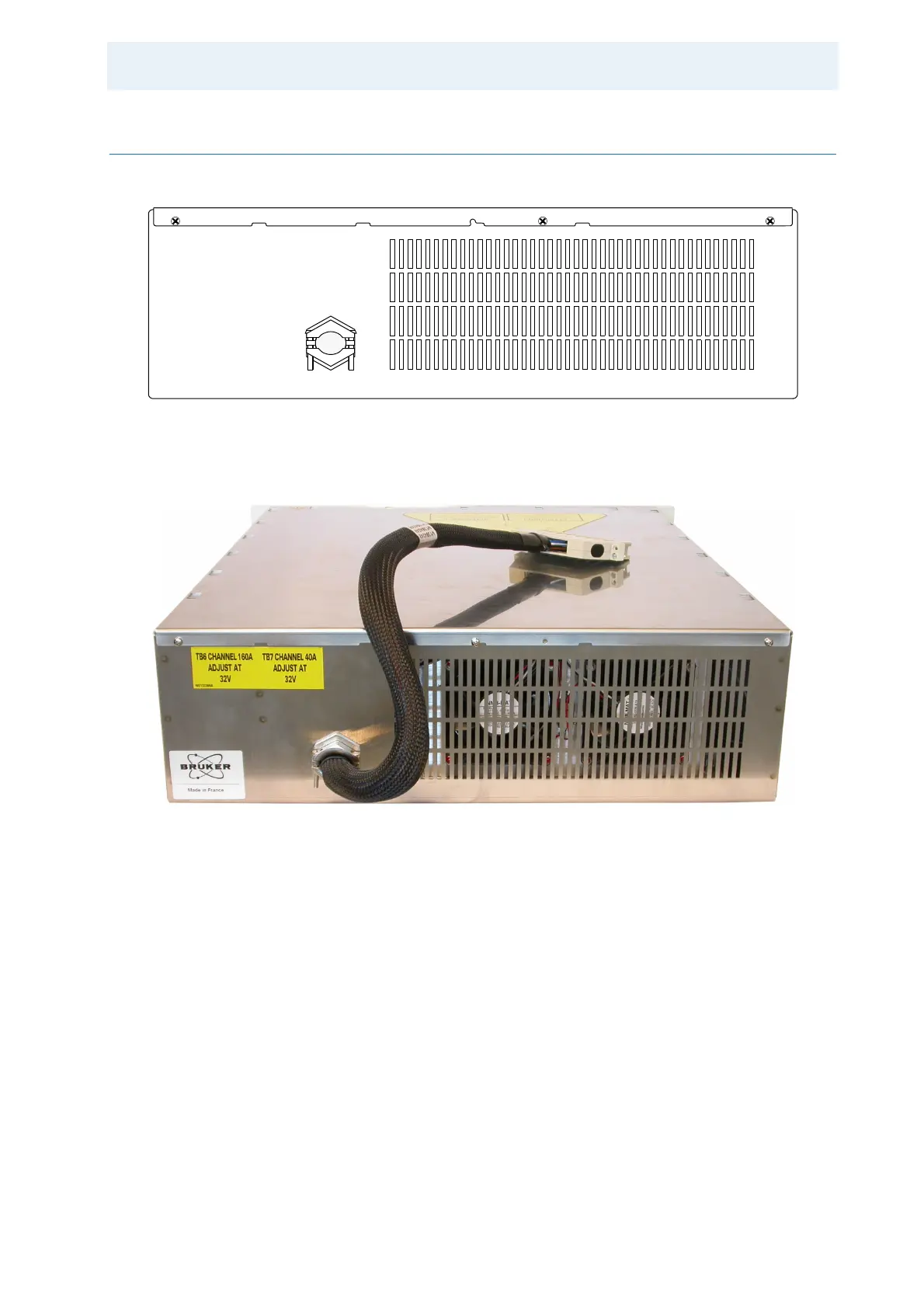

Figure 4.4. BLAH1000 E Amplifier 700-900MHz Rear Panel Design
Figure 4.5. BLAH1000 E Amplifier 700-900MHz Rear Panel View
