Operating & Service Manual Version 002 BRUKER BIOSPIN 39 (53)
Sub Toolbar Maintenance
Self-Test & Software Reset 6.4.2
Leads you to a page allowing you to do a self-test on the BLA control board
(Hardware test) and to do a software reset.
Both operations can be done if the amplifier doesn't work correctly.

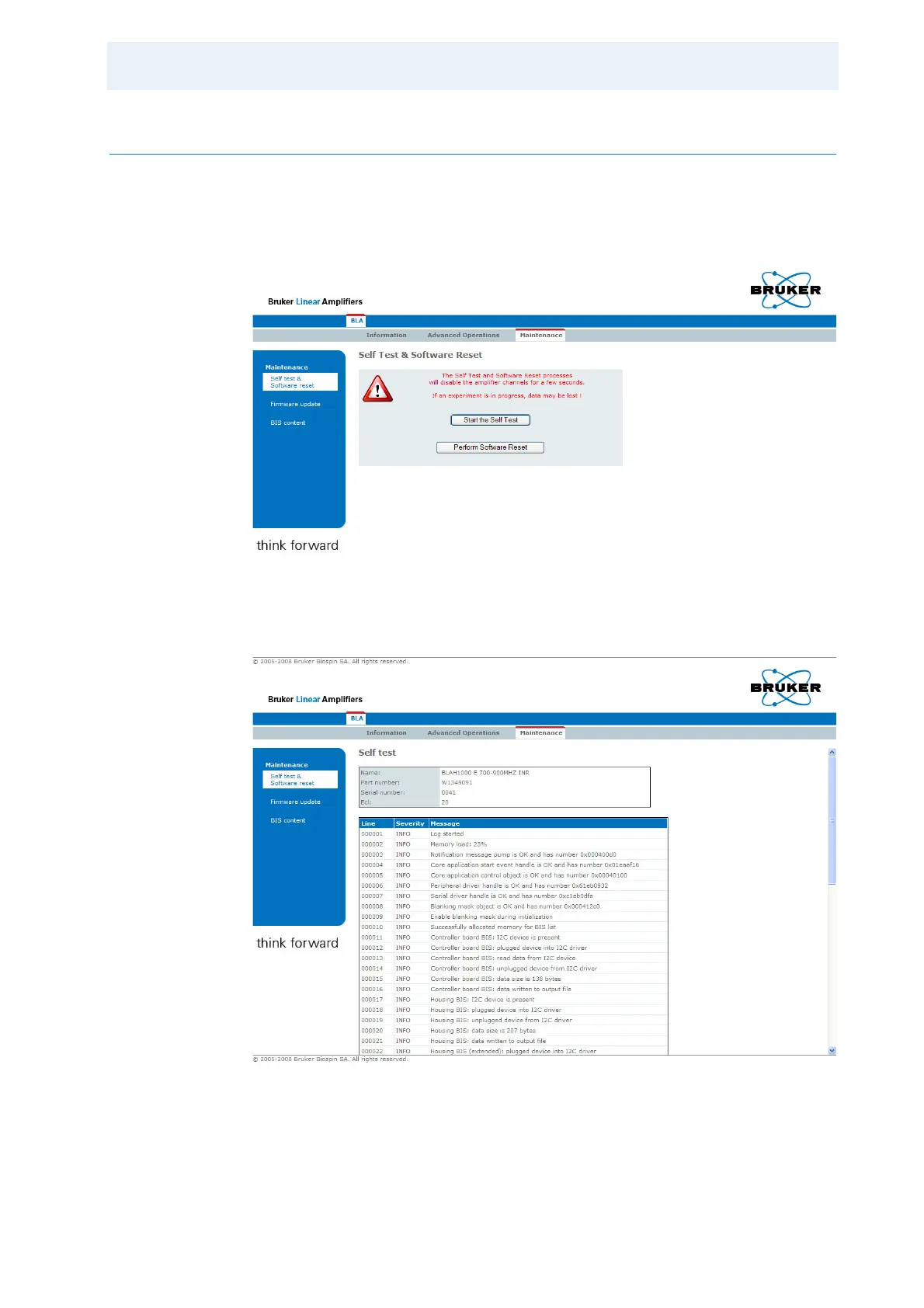

Figure 6.11. Perform Self Test and Report
Read the warnings, press Start the Self Test.
You should have only gray lines in the report.
