Bruker NMR 400 89 Ascend DNP - Cryostat Safety Devices

26
ZTKS0243 / Z31993 / 03
Safety
2.7 Safety Devices
The supplied cryostat of the magnet system is equipped with the following safety
devices:

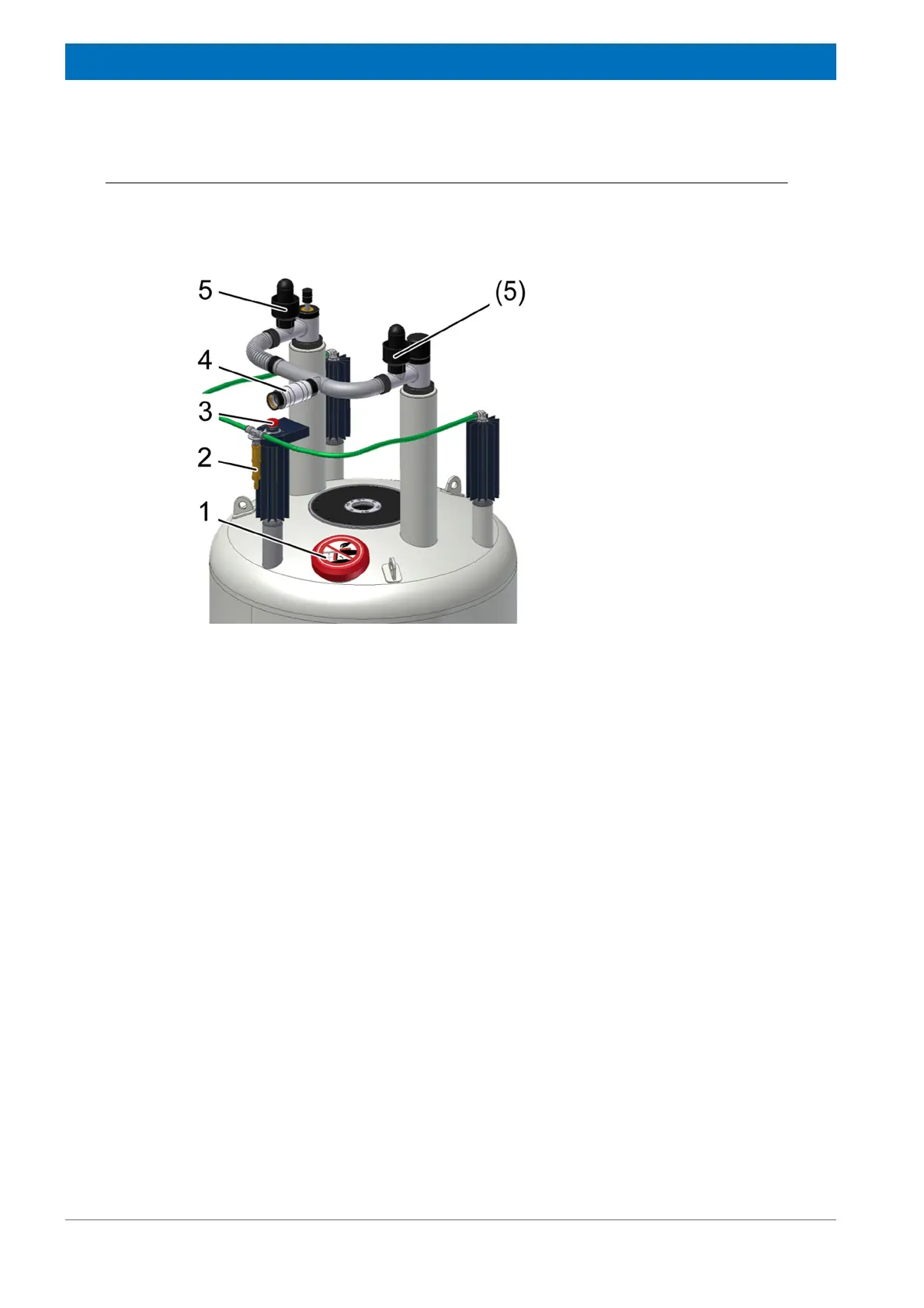

Figure 2.1: Safety Devices of the Cryostat with 2 Helium Turrets
1 Drop-off Plate
2 One-way Valve of the
nitrogen vessel
3 Safety Valve of the
nitrogen vessel
4 One-way Valve of the
helium vessel
5 Quench Valves
