Technical Data MS 400‘89 Ascend DNP
Shorting Plug
Remove the shorting plug before inserting the current lead or the sweep current lead.

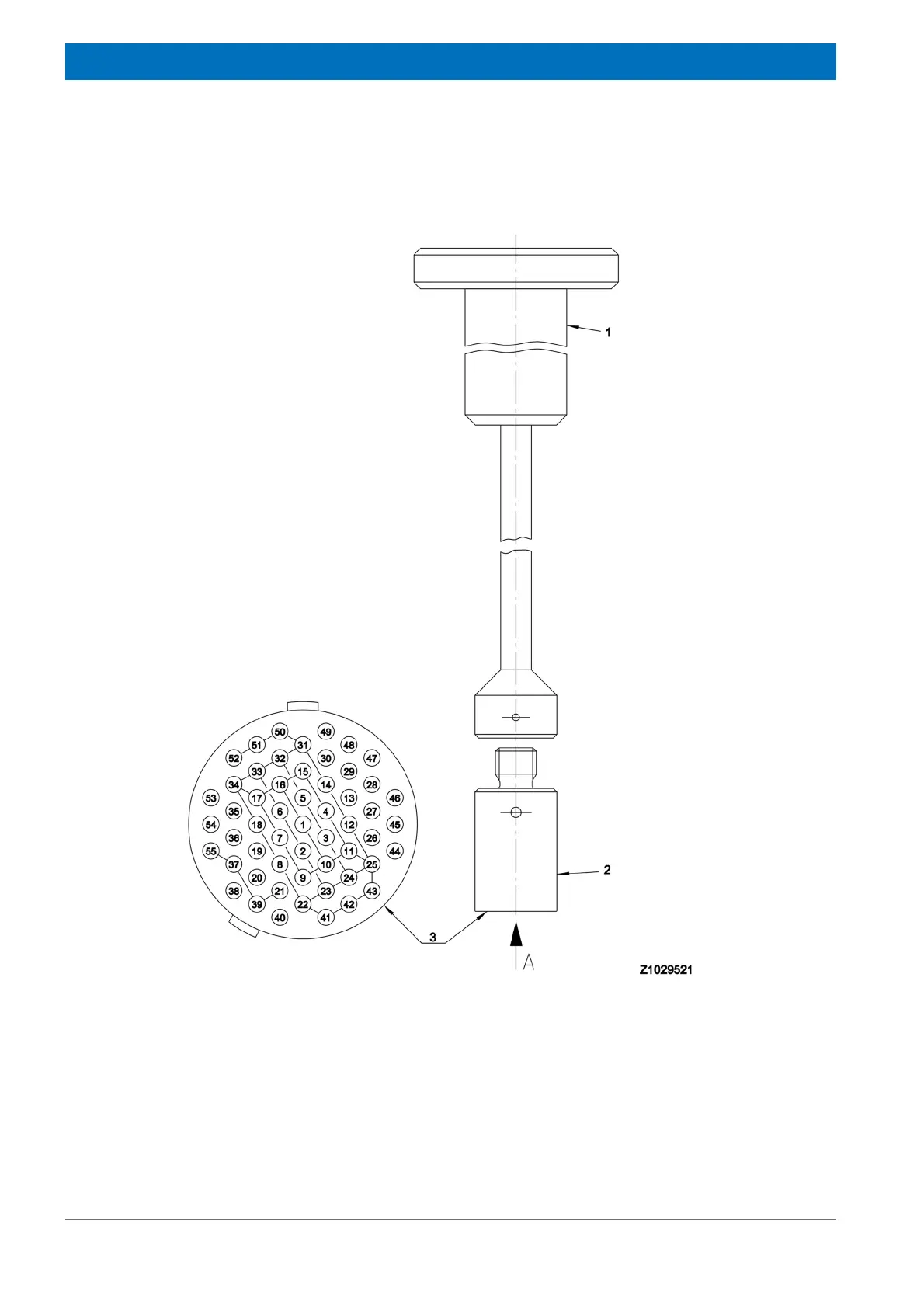

1 Shorting Plug Tool for fitting and removing the shorting plug
2 Shorting Plug
3 Shorting Plug - view from pin side
Figure A.15: Shorting Plug 55 pins
