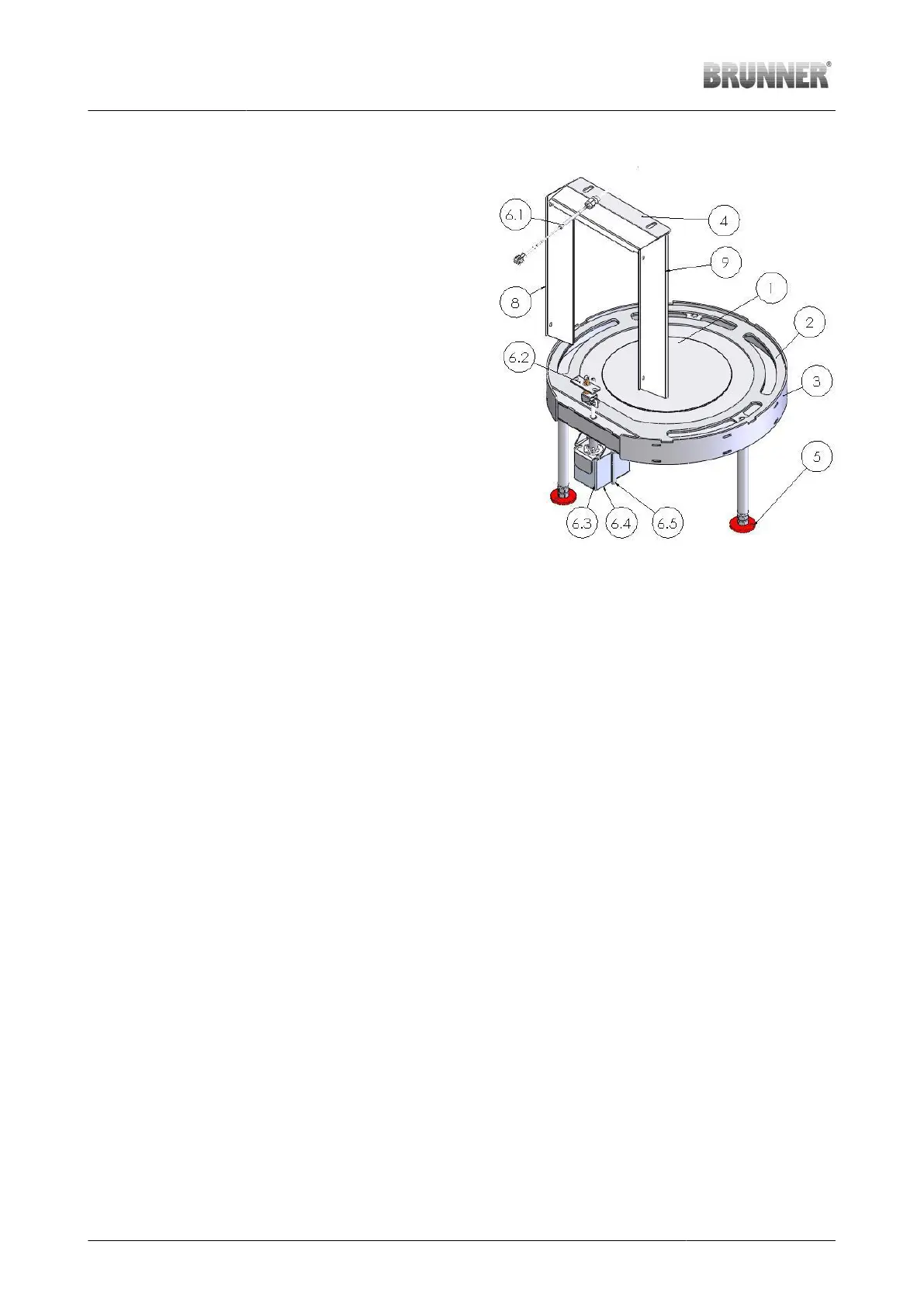

Base frame KSO 33 EAS - G022056-02
Pos Art.-No. Designation
1 G020250 Revisionsdeckel Boden
2 G022057 Fibrous material bottom plate
3 G022061 Bottom frame d 540
4 G022092 Upper air distribution
5 N002085 Adjustable feet with hexagon
nuts
6 G020288 Control components (only part
of wiring shown)
6.1 in G020288 Thermocouple
6.2 in G020288 Door contact switch
6.3 in G020288 Gear motor
6.4 in G020288 Case cover
6.5 in G020288 Screws for motor
8 G022164 Protective cover, left side
9 G022165 Protective cover, right side
The adjustable feet for base frame are painted in red, to make it easier to find them during adjusting works.
10 Installation Guide KSO 33 (1.12) © 2021 Brunner GmbH
