5. Set the door opening angle
limit - adjust the upper door
hinge
Turn up the two nuts on the upper hinge
bolt. Open the door to the desired open-
ing angle. Turn the nuts to the upper
transverse web of the front. Secure the
nuts against each other.
Check the adjustment.

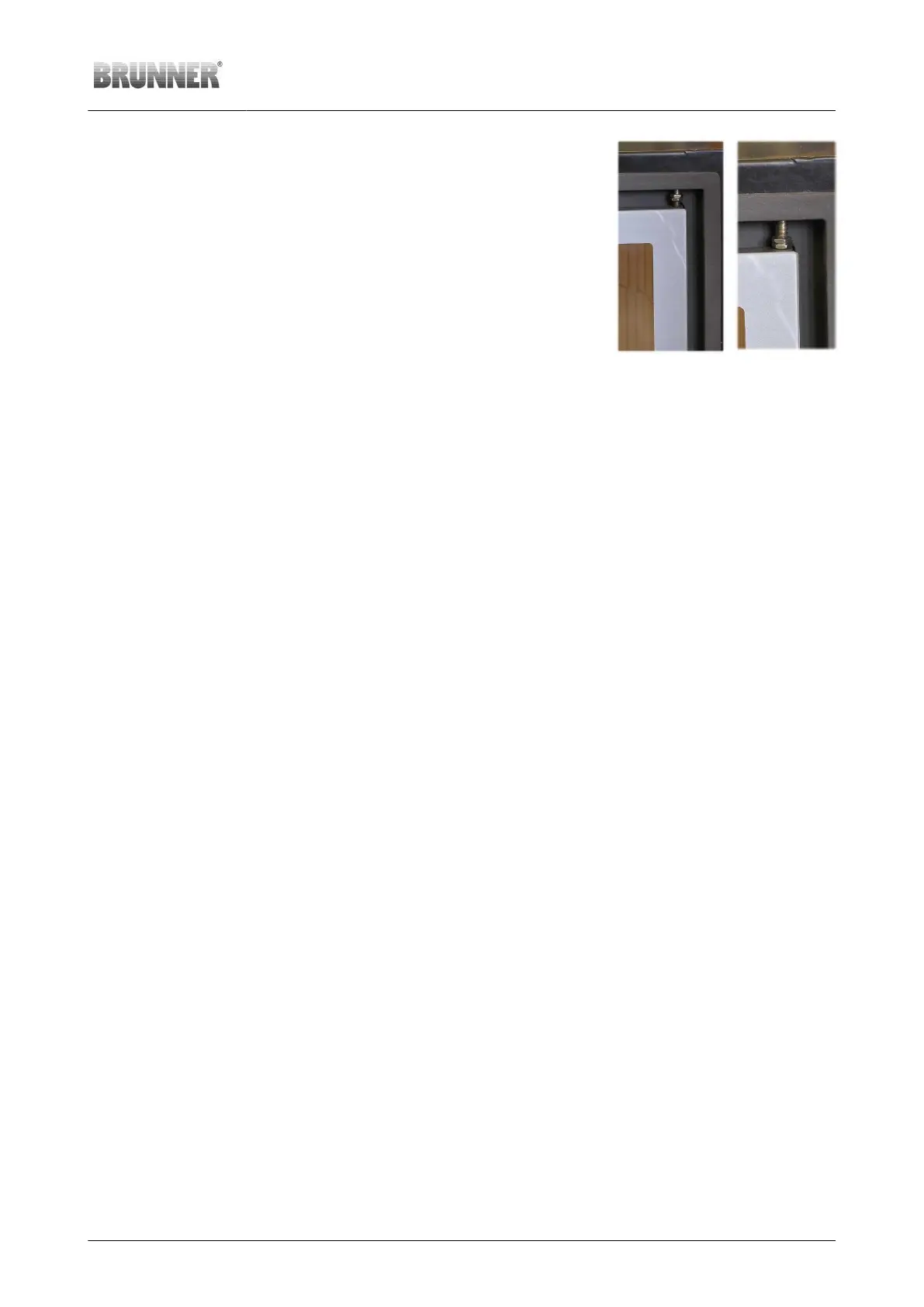

Illustration 28: Right: Nuts after
mounting the door - Left: Door
hinge after adjustment
The air adjusting lever is installed after the door frame or mounting frame is installed in place.
13.4 ASSEMBLY OF TOP-MOUNT ACCUMULATOR
The top-mount accumulator has a double-shell design, like the combustion chamber.
The inner shell consists of segment parts, which are set dry without any additional materials, and create a
triple duct reheating system. The segment parts of the first level are set on top of the combustion chamber
cover. The parts are movable due to sealing ropes in their grooves, which allows for thermal expansion.
The external shell is built from rings. The tightness of the external shell is essential for the accumulation
stove function. Therefore, all components of the external shell must be tightened with the high-temperature
sealant (in delivery contents), in addition to the existing sealing ropes. After the components are set, all ex-
ternal joints have to be filled with this sealant. The stove casing must be sealed before the external stove
cladding is laid!
The accumulator ducts can be cleaned from above. For this operation, the top cover parts must be removed.
During all works, make sure that the sealing ropes between stove casing parts fit tight and get not damaged
during assembly. The contact faces of components must be kept free from dust.
When the smoke outlet connection will be on side, check the orientation of combustion chamber cover before
the first segment part is laid.
© 2021 Brunner GmbH Installation Guide KSO 33 (1.12) 31
