7 DESCRIPTION OF PARTS

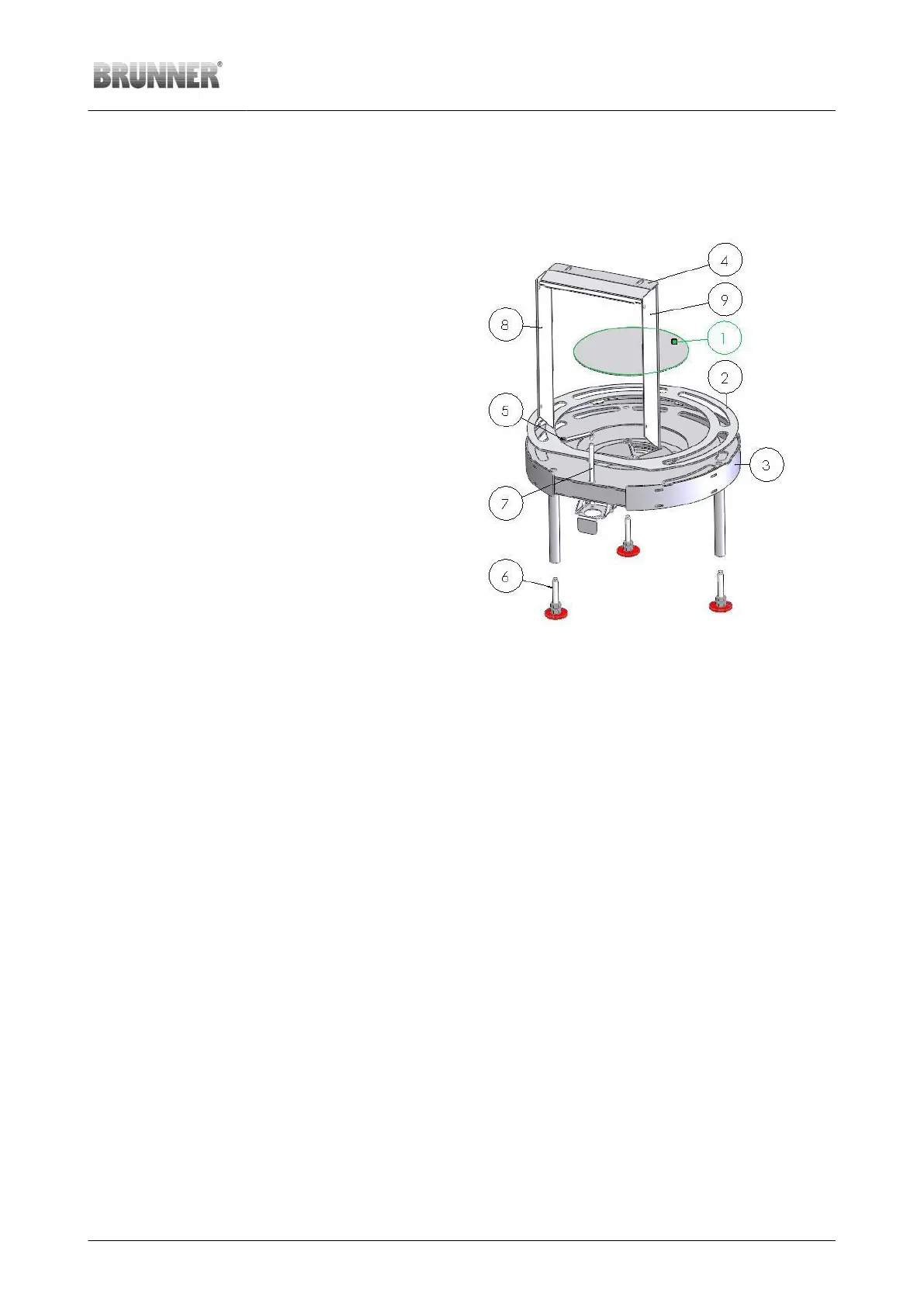

Base frame KSO 33 manual operation - G022056-01
Pos. Art.No. Designation
1 G020250 Bottom revision cover
2 G022057 Fibrous material bottom plate
3 G022061 Bottom frame Ø 540
4 G022092 Upper air distribution
5 G022186 Air adjusting lever
6 N002085
Adjustable feet with hexagon
nuts
7 G020357 Air adjuster
8 G022164 Protective cover, left side
9 G022165 Protective cover, right side
The adjustable feet for base frame are painted in red, to
make it easier to find them during adjusting works.
