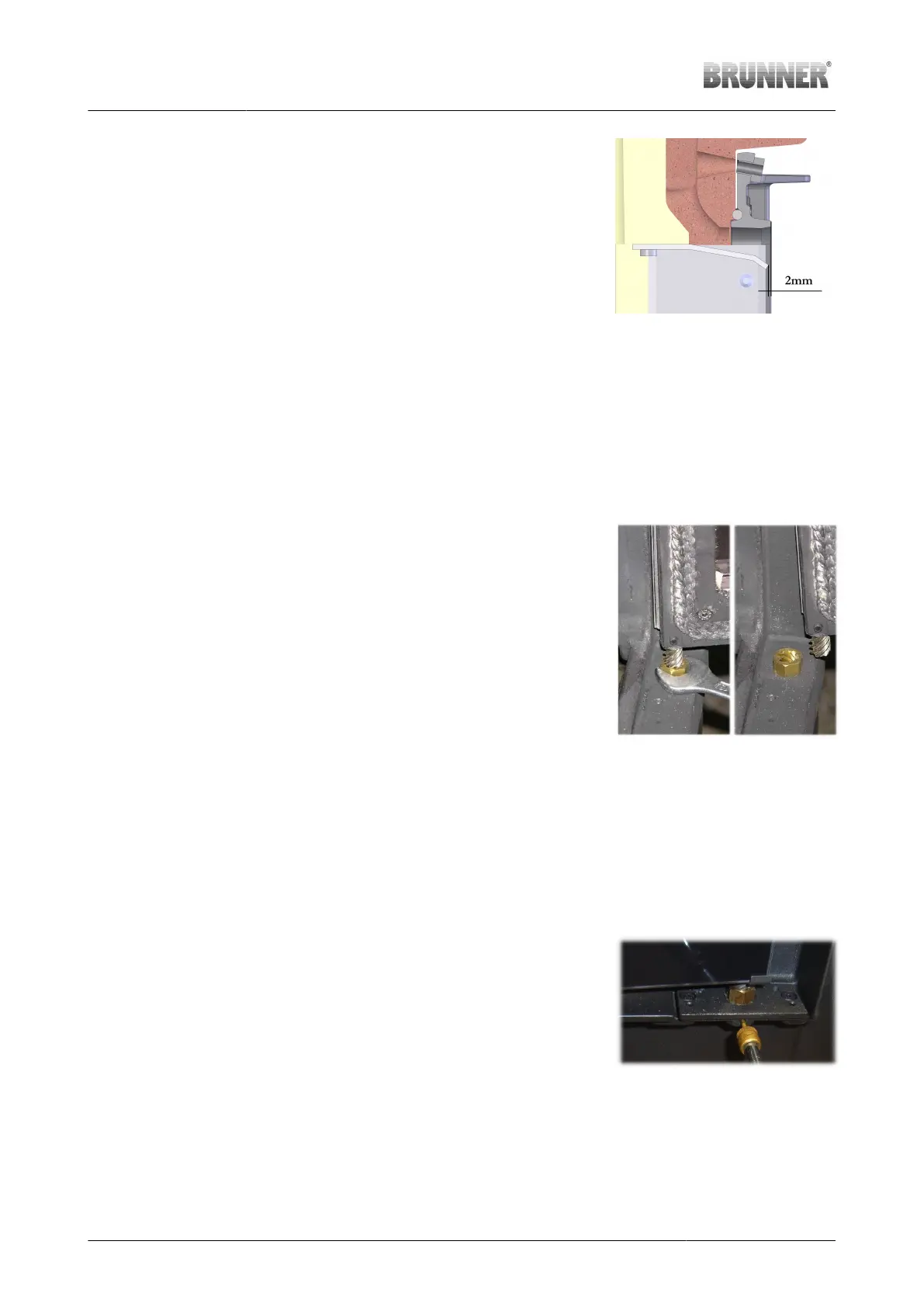

2. Adjust the air distribution The air distribution can be moved towards
combustion chamber. The desired set-
ting is a distance of 7 mm to the internal
glass pane. This will be reached, when
the frontal edge of air adjuster stays 2
mm behind the front edge of cast iron
front. The distance to the front should be
the same over the entire width of stove
front.
Stove door installation
Note for stove casing with one-piece base ring:
Before the stove door is installed, the base ring of stove casing should be mounted. The protruding door
handle can be an obstacle during base ring placement.
Working step Note
1. Put in the upper door hinge Place the door hinge bolt onto the hole in
stove front frame and lift the door up a lit-
tle.
2. Set the lower door hinge Place the threaded bolt onto the threaded
sleeve
3. Door height adjustment When the threaded sleeve is turned with
a hexagon spanner, the trapezoid thread-
ed bolt engages into the threaded sleeve,
and the door lowers. Close the door care-
fully and check the height position. The
door sealing rope must fit evenly on the
entire circumference of the stove front
sealing web, the door lock must engage
smoothly.
Illustration 26: Set the hinge bolt
onto the threaded sleeve and ad-
just in height by turning the thread-
ed sleeve
4. Secure the threaded sleeve Turn in the threaded pin - this will secure
the threaded sleeve against turning.
Illustration 27: Securing of thread-
ed sleeve
