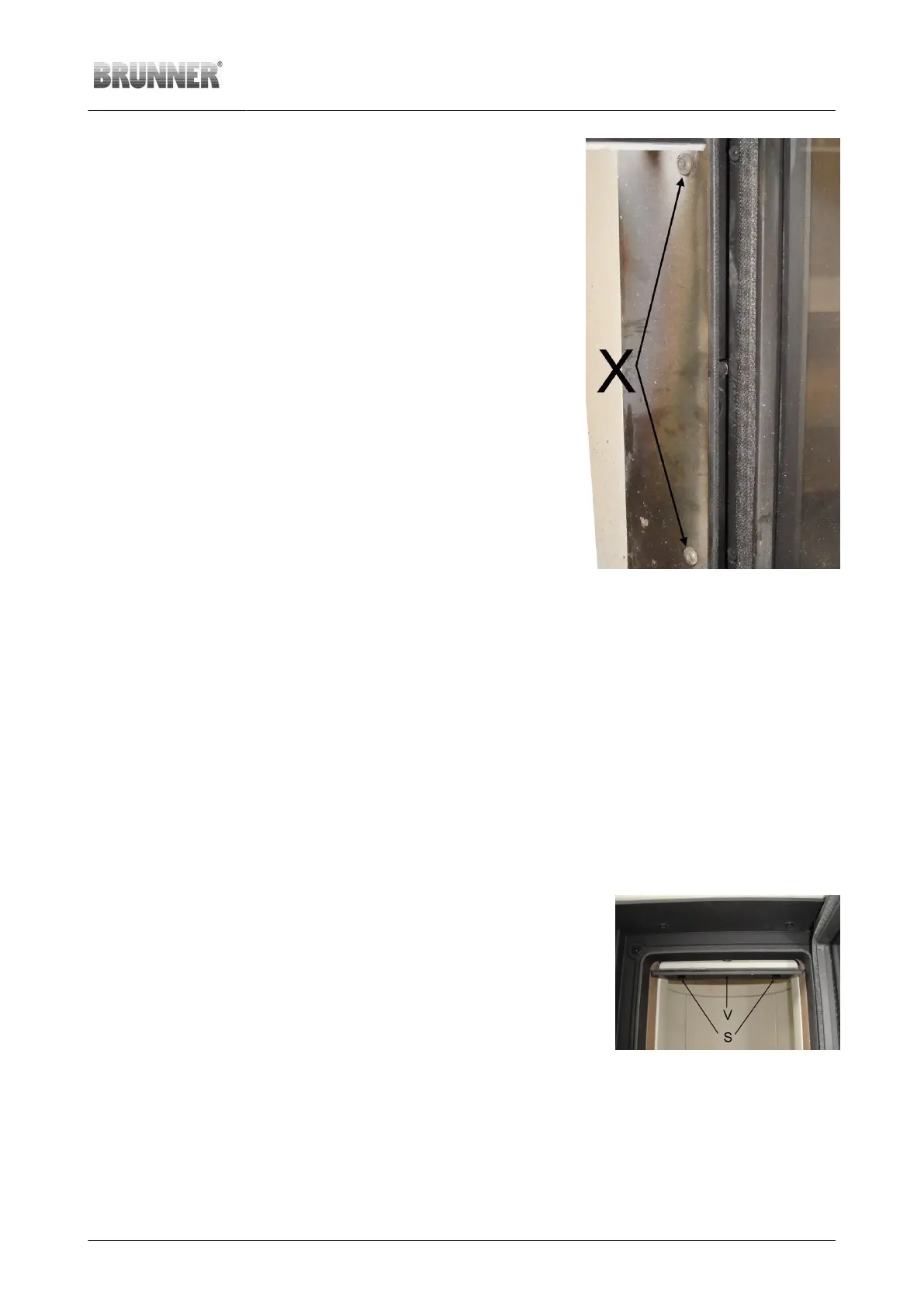

6. Mounting of protective panels Remove two screws (X) M5x8

(TORX25) from each side of the

front internal part. Put the protec-

tive panel on the front internal part

and affix it with screws. Tighten

the upper screw fully. The lower

screw should be only slightly tight-

ened (to allow for thermal expan-

sion of sheet metal).

Illustration 25: Mounting of protective

panels

7. Seal off the combustion cham-

ber

All joints of the external shell com-

ponents, between the external

shell and base ring, as well as be-

tween the external shell and front

must be filled with high-tempera-

ture sealant.

Mounting and adjustment of air distribution

The position of air distribution determines the volume of air supplied to the combustion chamber, and there-

fore, it has an important influence on combustion. Thus it is necessary to perform appropriate adjustment.

Working step Note

1. Install air distribution The air distribution (V) is attached with

two screws M8x25 (S) from the screw kit

to the combustion chamber parts. Before-

hand, remove both screws which are al-

ready mounted at delivery - these screws

will be no longer needed.
