Assembly of accumulator first level
Working step Note
1. Set the first segment
part with web
mind the heating gas duct
2. Set the second seg-
ment part with web
mind the heating gas duct

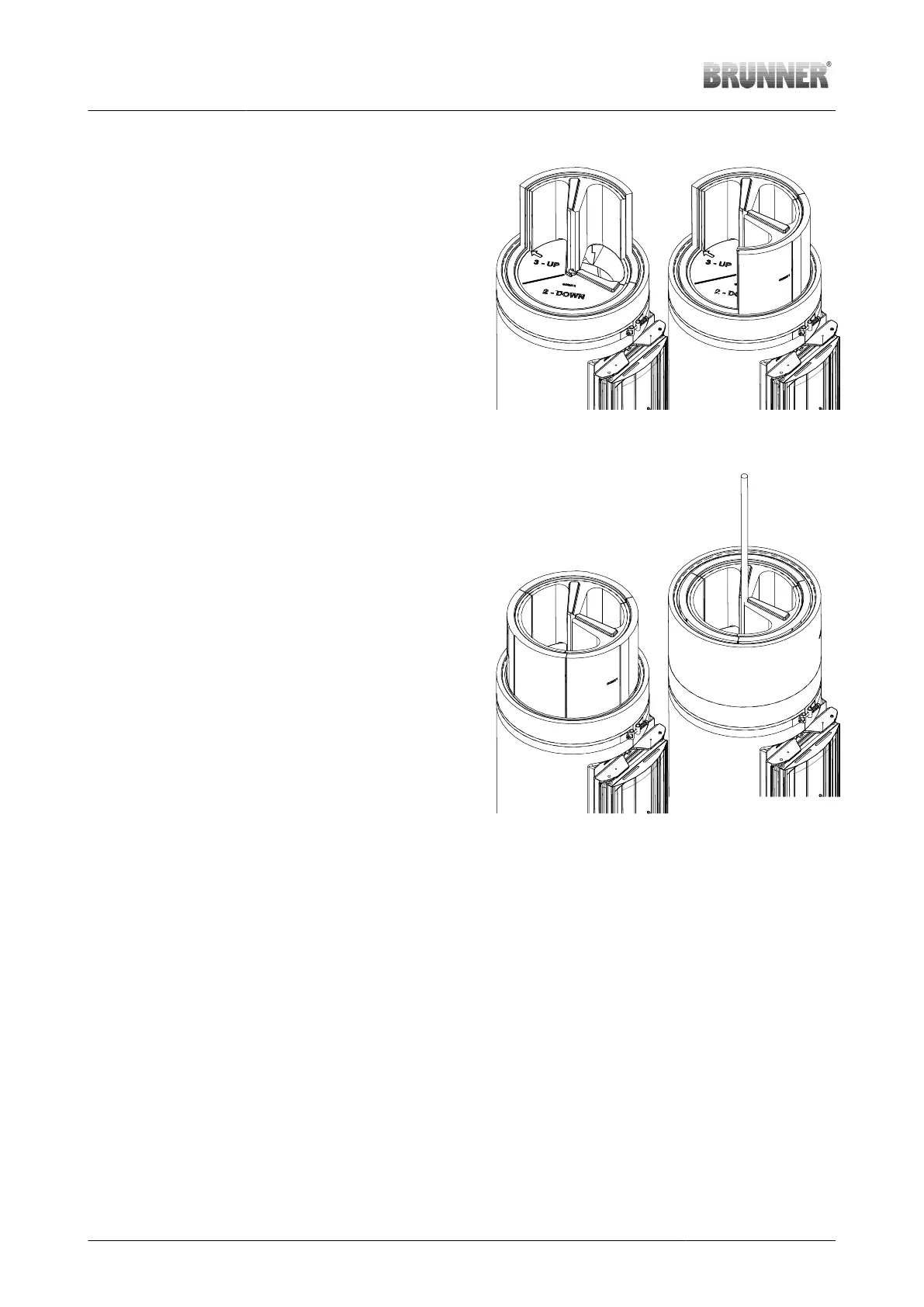

Illustration 29: First seg-
ment part laid and oriented
Illustration 30: Second
segment part laid
3. Set the third segment
part without web
the available space provides
the connection of the down-
ward flue duct into the second
riser duct
4. Set the external ring The external ring engages into
the external ring of combustion
chamber
5. Put the sealing rope
in
Starting from the depression
on the combustion chamber
cover, put the sealing rope be-
tween the webs and put it up
The sealing rope can be found
in the attached accessory kit
Illustration 31: Segment
part without web is laid
Illustration 32: External
ring and sealing rope as-
sembled
