Assembly of accumulator second level
Working step Note
1. Set the first segment
part with web
mind the first level segment
position
2. Set the second seg-
ment part with web
put against the first segment
part
3. Put the sealing rope
in
Put the sealing rope from Lev-
el 1 into the groove between
parts 1 and 2
4. Set the third segment
part with web
Make the circle complete -
align the parts and check the
sealing rope position

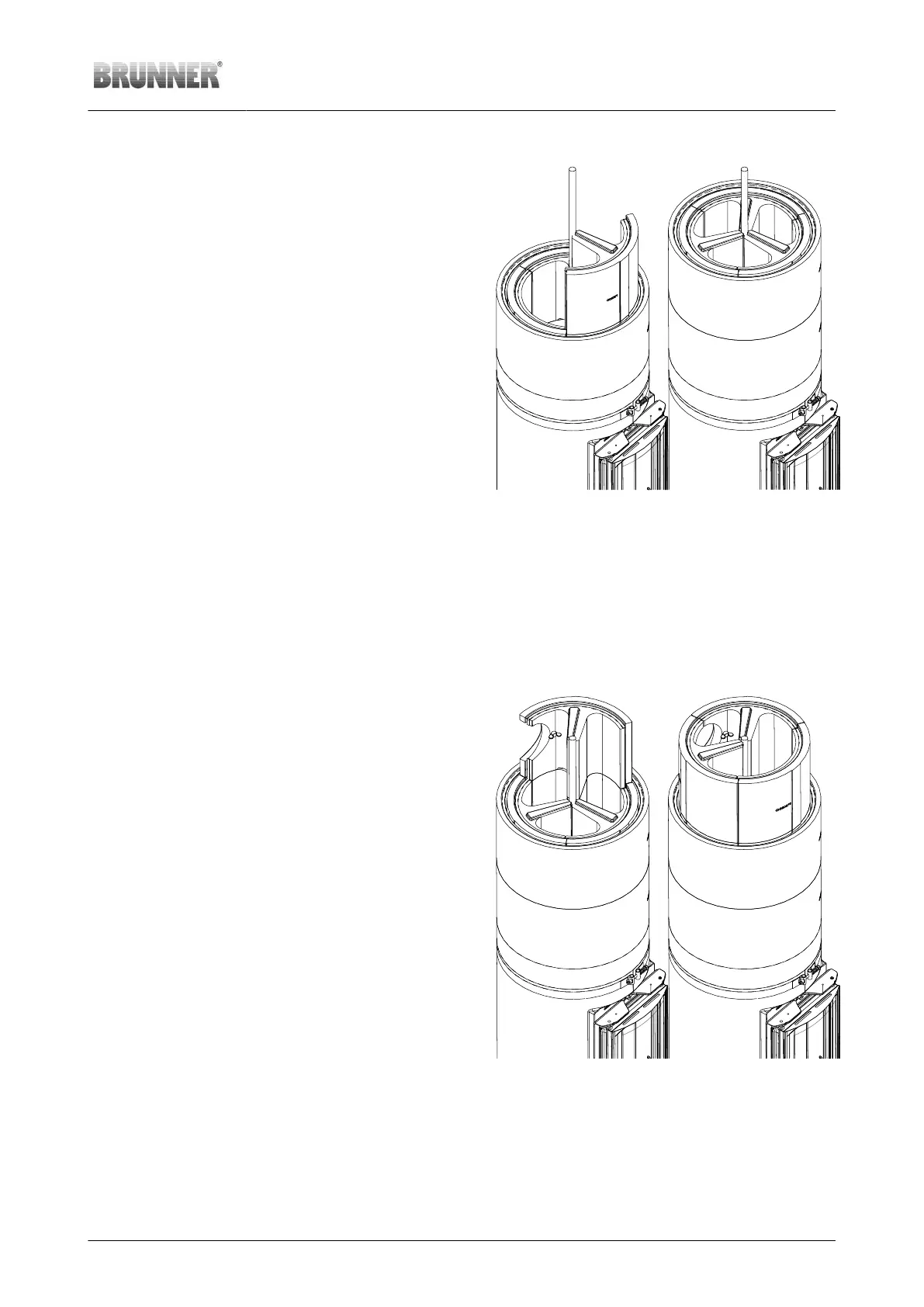

Illustration 33: First seg-
ment part of the 2. Level
Illustration 34: 2. Level
completed
5. Set the external ring
The top-mount accumulator can be made with more than three levels. The required ‘top-mount accumulator
supplementing kit’ is assembled the same way as Level 2.
Assembly of accumulator top level with cover for vertical smoke outlet connection
Working step Note
1. Set the segment part
1 with smoke pipe con-
nection
mind the position of second
riser duct
2. Set the segment part
2 with smoke pipe con-
nection
mind the position of second
riser duct
3. Set the segment part
without web
The available space provides
the passage from the 1. riser
into the downward flue duct
4. Put the sealing rope
in
Put the sealing rope between
the webs and affix it
Illustration 35: Segment
part with smoke outlet con-
nection on second riser
duct
Illustration 36: Passage
from the first riser to the
downward flue duct
