5. Set the top-mount ac-
cumulator blind cover
Close the smoke pipe connection with the blind cov-
er. Tighten around the gap with the high-temperature
sealant. Affix in position with aluminium adhesive tape
6. Fit the blind cover in-
to the external ring
Put the blind cover into the ex-
ternal ring from inside and affix
from inside with aluminium ad-
hesive tape.

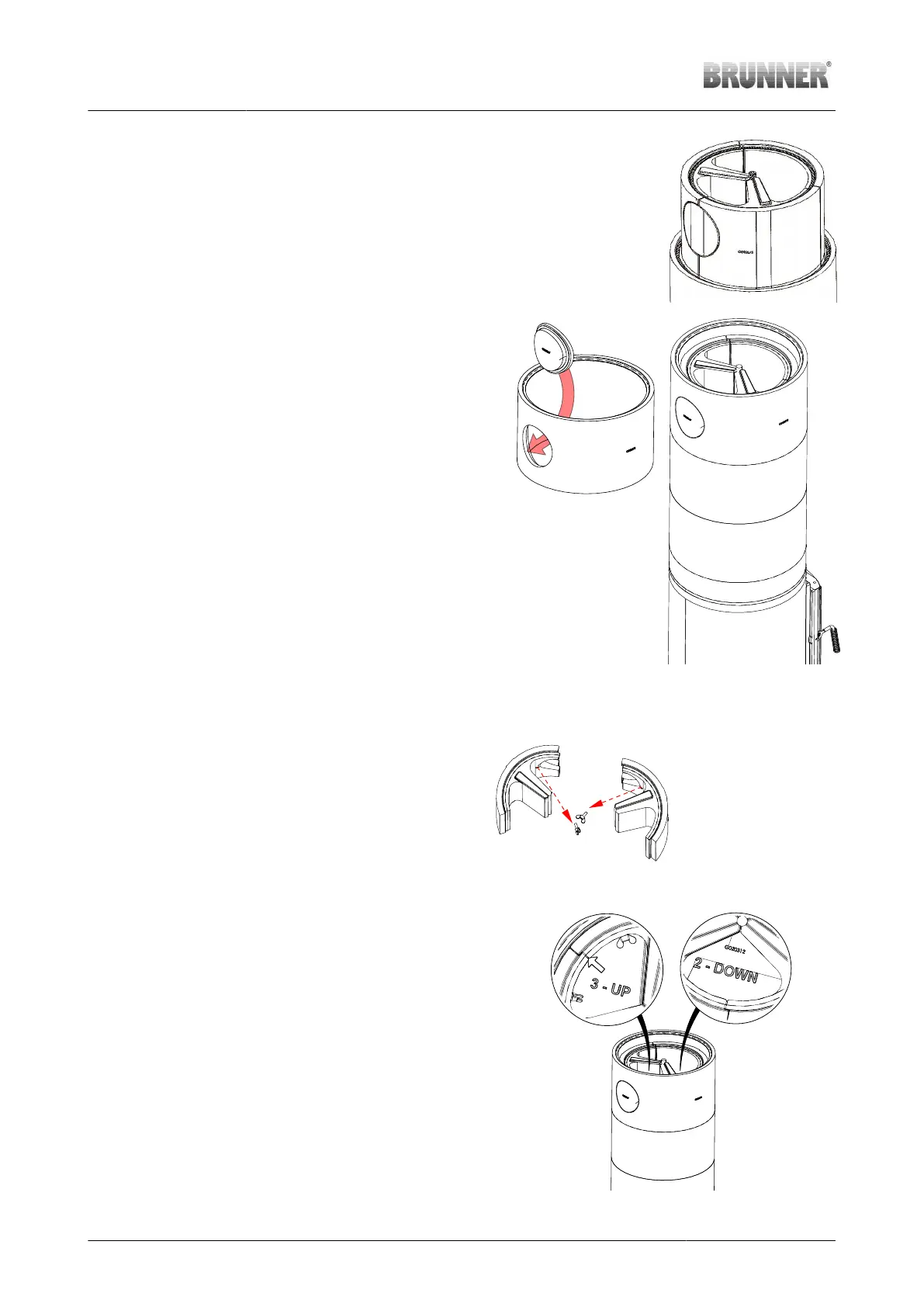

Illustration 37: Blind
cover into the exter-
nal ring
7. Set the external ring
After the external ring is laid, seal the blind cover with
high-temperature sealant.
Illustration 38: External
ring with blind cover after
assembly
8. Remove the butterfly
nuts from the segment
parts
The butterfly nuts are used for
smoke outlet mounting on the
top cover part
Illustration 39: Butterfly nut
9. Set the internal top
cover part
The breakthroughs are locat-
ed above the downward flue
duct and the second riser duct.
The recess in the top cover
part provides the necessary
gas slot
