10. Put the blind cover
in
The blind cover is placed on-
to the downward flue duct
(DOWN). The blind cover pro-
vides access for cleaning pur-
poses.
11. Set the external top
cover part
Mind the smooth fit of the cir-
cumferential sealing

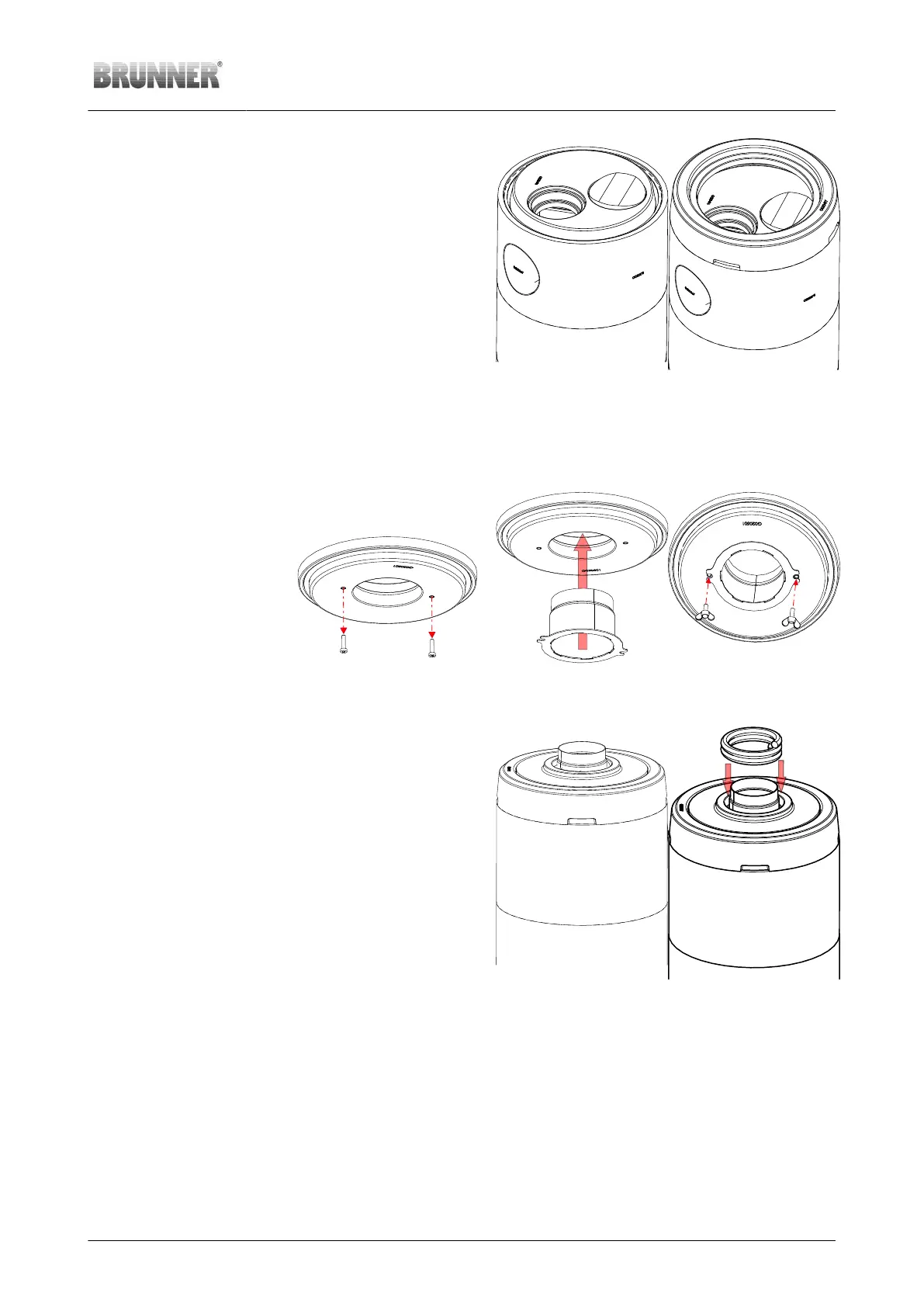

Illustration 40: Put the
blind cover in
Illustration 41: Setting of
external top cover part
Put the smoke outlet from inside through the top cover opening and affix with
butterfly screws
12. Attach the smoke
outlet to the top cover
part
Illustration 42: Put in the
smoke outlet
Illustration 43: Affix the
smoke outlet
13. Set the intermediate
ring cover
Put in the sealing rope
(d20mm) Put the top-mount
accumulator sealing rope into
the gap around the smoke out-
let and press firmly
Illustration 44: Set the in-
termediate ring
Illustration 45: Put the
sealing rope in
Fill the external joints of the top-mount accumulator with the high-temperature sealant, however, do not ap-
ply on the intermediate ring cover, because it must be available for removal during cleaning.
