Assembly of accumulator top level with cover for smoke outlet connection on side
Working step Note
1. Set the segment part
1 with smoke pipe con-
nection
mind the position of second
riser duct
2. Set the segment part
2 with smoke pipe con-
nection
mind the position of second
riser duct
3. Set the segment part
without web
The available space provides
the passage from the 1. riser
into the downward flue duct
4. Remove the butterfly
nuts
5. Put the smoke outlet
in
Put the smoke outlet loose in
place and push it inwards. As
soon as the external ring is
set, the outlet is placed in posi-
tion and affixed with screws

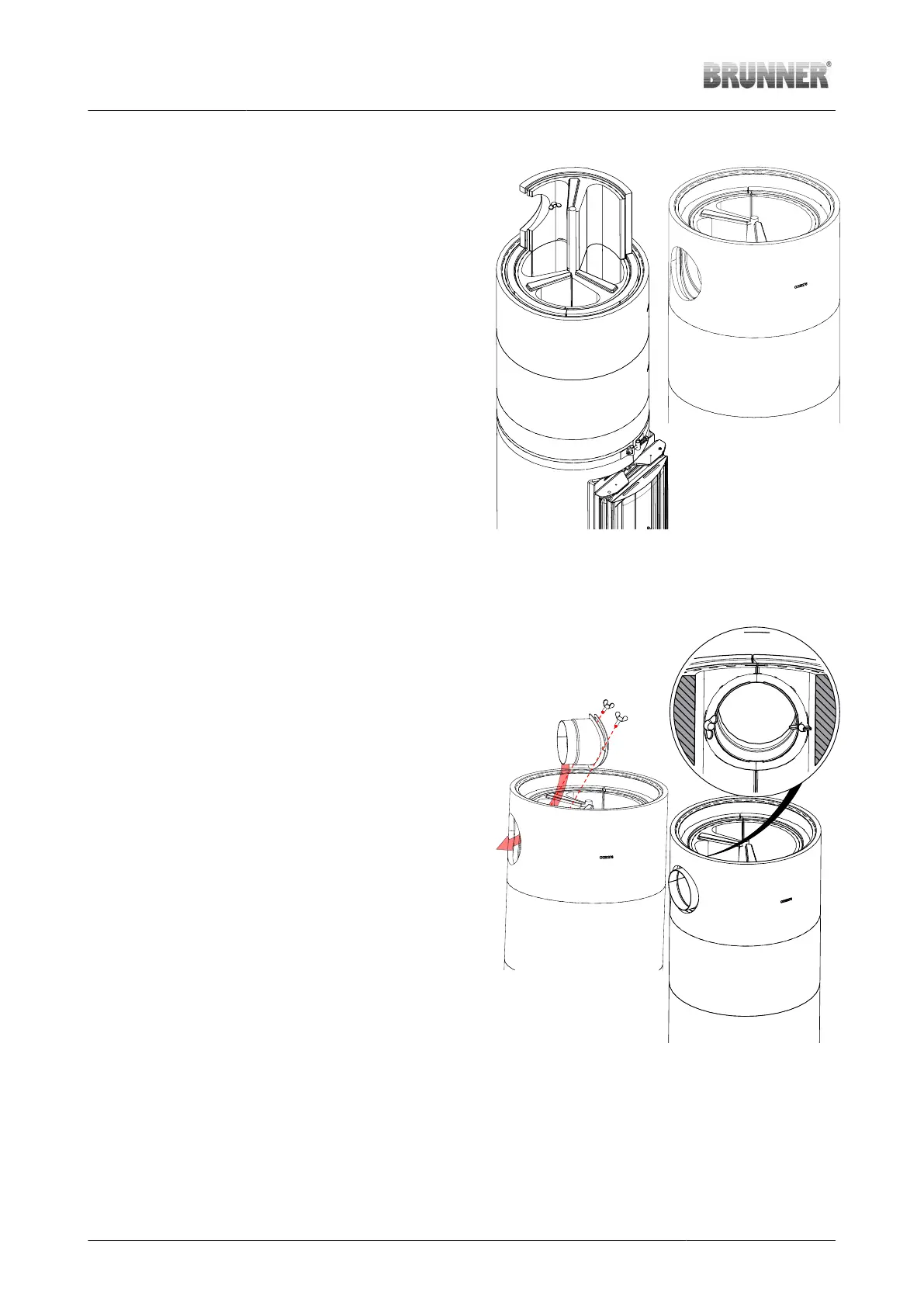

Illustration 46: Segment
part with smoke outlet con-
nection on second riser
duct
Illustration 47: Smoke out-
let placed loose
6. Set the external ring
7. Smoke outlet mount-
ing
Push the smoke outlet outside
and affix on the segment part
with M8 butterfly screws
8. Put the sealing rope
in
Put the sealing rope between
the webs and affix it
Illustration 48: Inner shell
complete and sealing rope
is fitted
Illustration 49: External
ring is laid and the smoke
outlet affixed
