Brunner KSO 33 - Page 11

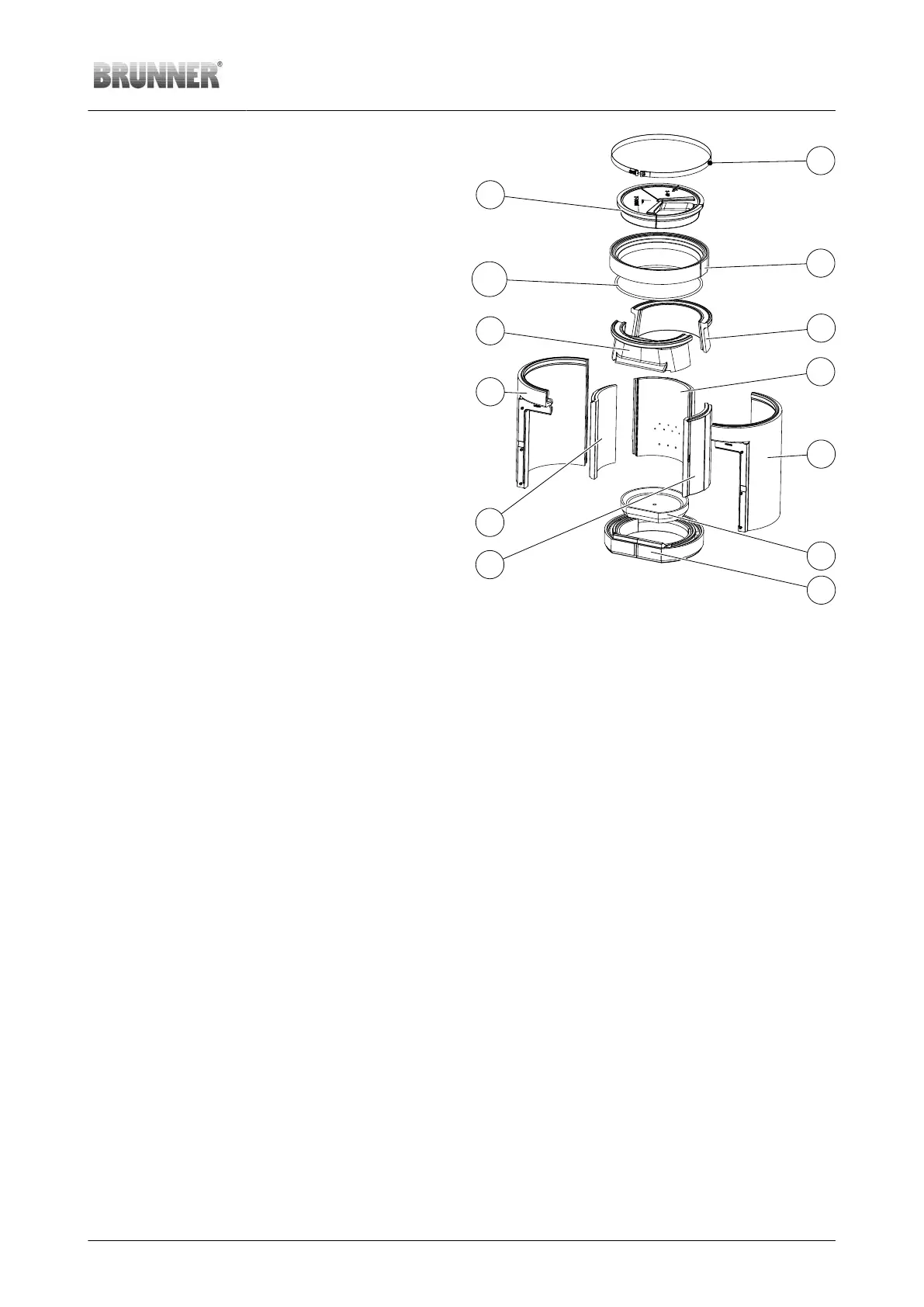

Combustion chamber KSO 33 - G022001
Pos Art.No.: Designation
1 G022022 Combustion chamber base ring
2 G022006 Back plate
3 G022002 External shell right side
4 G022015 Internal shell
5 G022008 Bottom plate
6 G022004 External shell
7 G022013 Internal ring front part
8 G022019 irebox top cover
9 G022016 Internal ring rear part
10 G022009 External ring
10-1 G022012 Combustion chamber seal Ø12
mm
11 G022124 Steel clamping strap
2
4
1
5
6
4
9
3
7
10.1
10
8
11
© 2021 Brunner GmbH Installation Guide KSO 33 (1.12) 11
