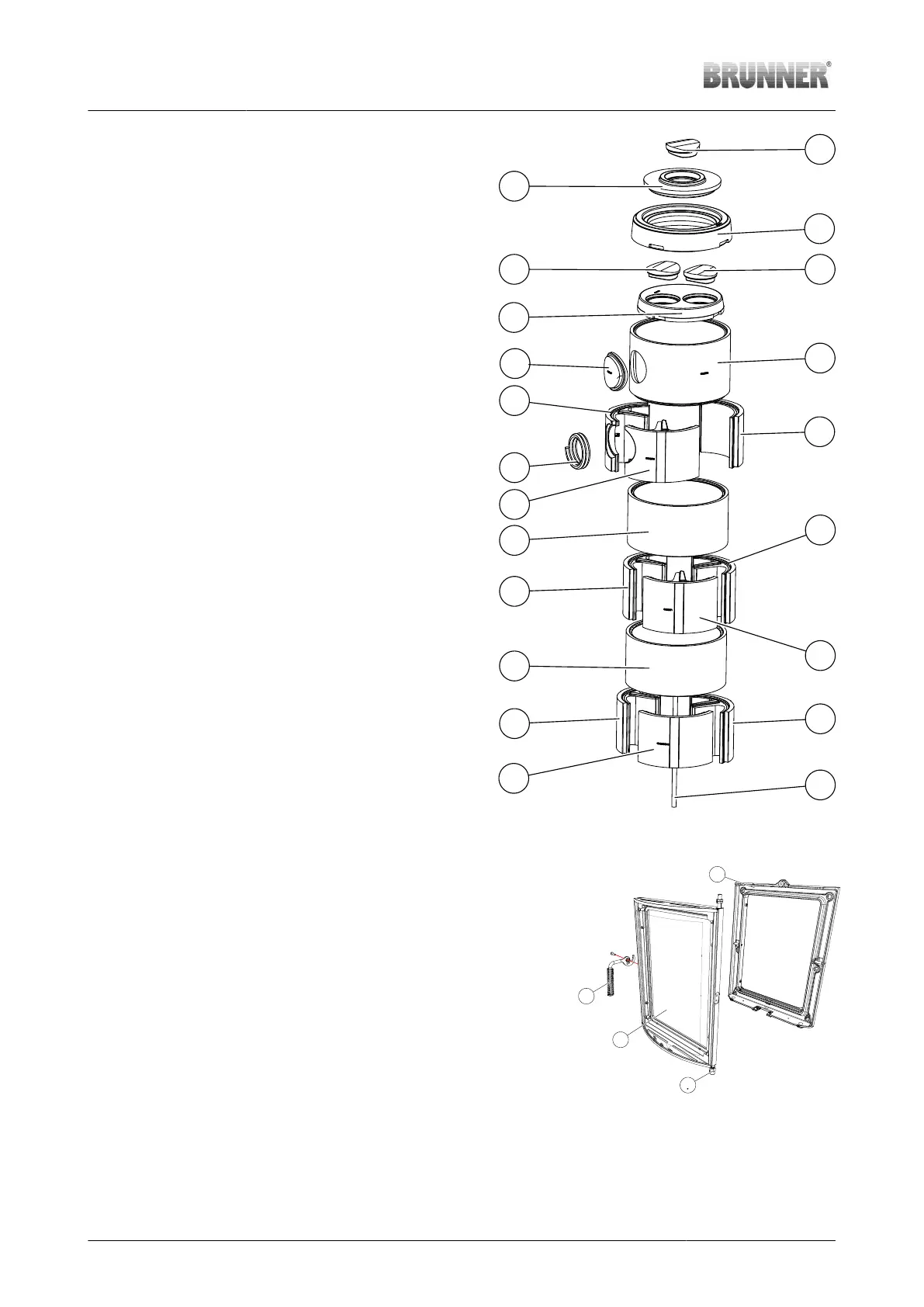

Top-mount accumulator KSO 33 - G022182
Item Art. No. Designation
1 G022185 Internal top cover part
2 G022184 External top cover part
3 G022051 Segment part with web
4 G022049 Segment part
5 G022095 Segment part 1 with smoke pipe con-
nection
6 G022097 Segment part 2 with smoke pipe con-
nection
7 G022042 External ring KSO 33
8 G020315 Top-mount accumulator with seal
Ø 20 mm, l=738 mm
9 G020318 Smoke pipe connection with seal
Ø 20 mm, l=1000 mm
10 G020366 Top-mount accumulator blind cover
11 G022045 External ring with connection
12 G020369 Blind cover external ring for top-
mount accumulator (in 11)
8
3
3
3
4
3
7
3
4
7
6
9
11
10
5
10
1
2
12
10
1
2
Stove front KSO 33r (with round cladding) - G022080
Pos Art.-No. Right side
door G022080-01
Art.-No. Left side
door G022080-02
Designation
1 G022082-01 G022082-02 Stove front 44x33
2 02056 02056 Door handle M16
3 G022067-01 G022067-02 Door 44x33 R330
3.1 D009347 D009349 Trapez. threaded
sleeve
1
2
3
3
1
