Set the inner shell and rear wall
parts
Put the parts in place and align to each other. Make sure that the width
of joints is small as possible. The inner shell parts are aligned on both
sides to the base frame edge.

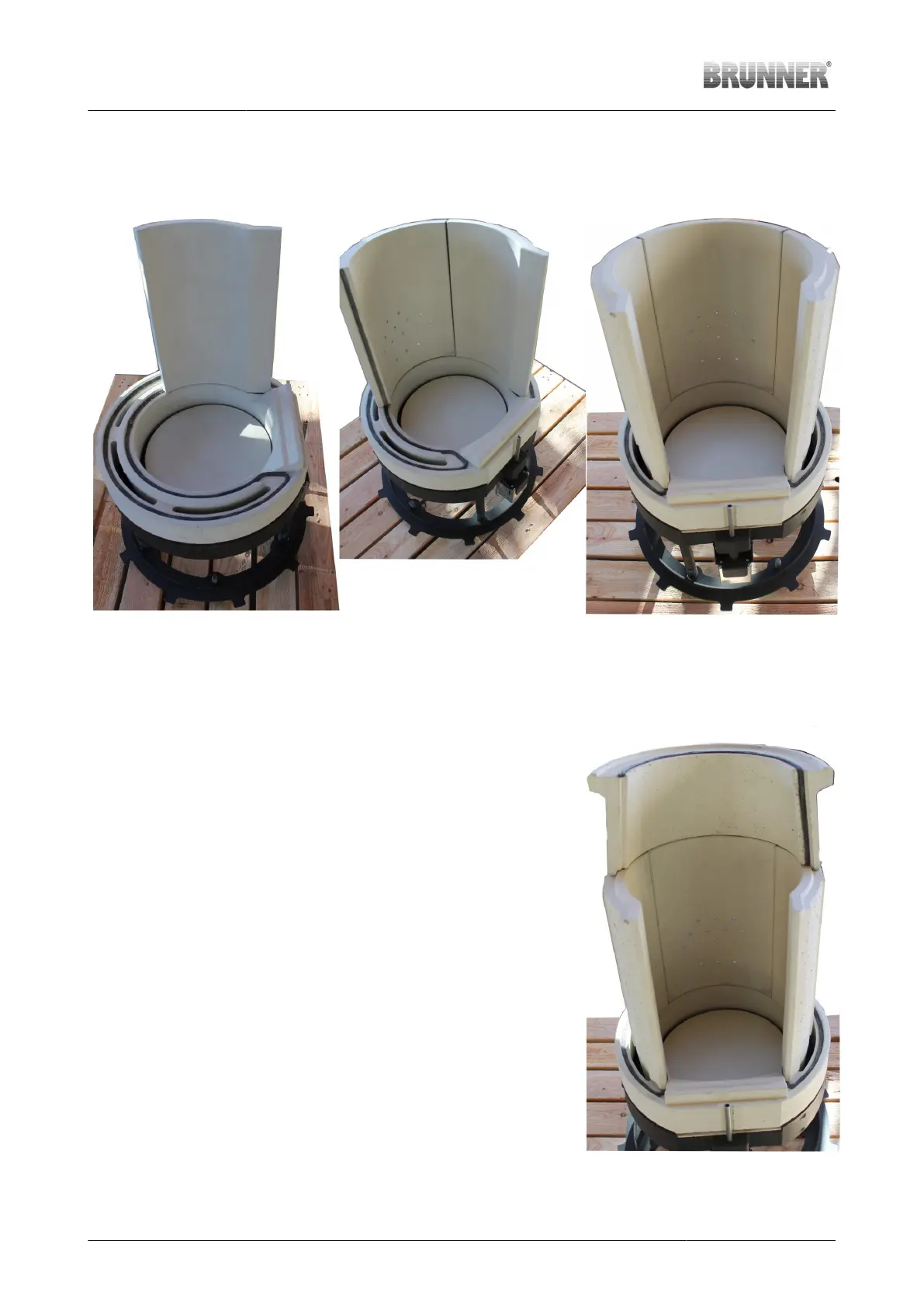

Illustration 14: Right side inner shell
part
Illustration 15: Inner shell and rear wall
parts
Illustration 16: Completed combustion
chamber wall
Completion of inner shell
Working step Note
Put the ‘rear inner ring’ in place The inner ring embraces the rear
wall and inner shell parts and
holds these parts in position.
Illustration 17: Rear intermediate part
laid and aligned
