Procedure for making a custom one-piece rail
You WILL cut off the rail-joint end.
1. Remove the gear rack from the rail using the #5
and #2.5 Allen wrench.
2. Save the M6 x 1 x 25 mm screw!!!!!!
3. Measuring from the NON-JOINT PLATE END, mark
the desired length for the installation.
4. Cut at the joint end.
5. Using the end cap and the drill templates, drill the
end cap holes and charge strip holes as instructed
on the previous page.
6. Cut the end of the gear rack that does NOT have
threaded holes.
NOTE: The nished length of the gear rack must be
3" to 4" shorter than the cut length of the
rail.

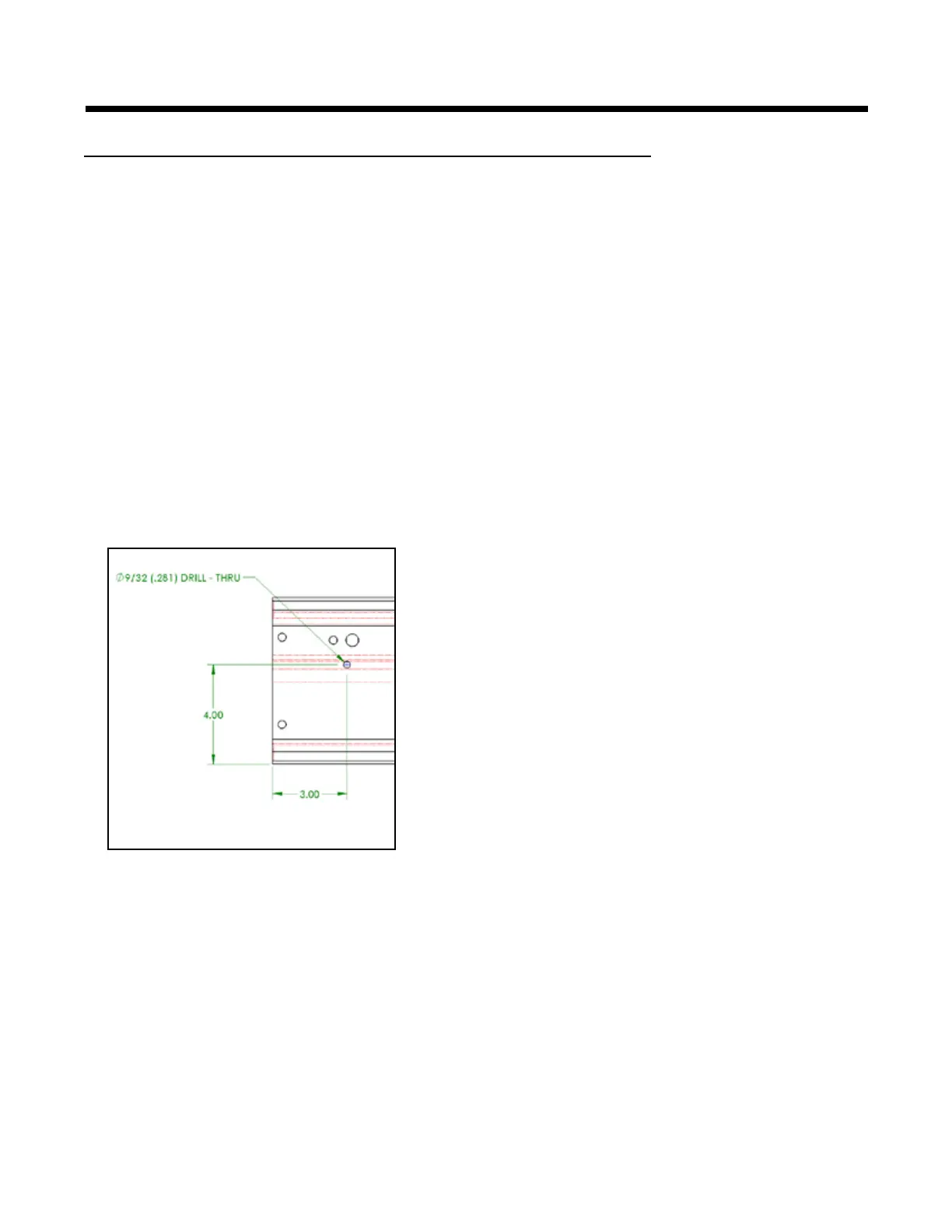

7. Mark and drill a .281 (I drill bit) hole in the rail as
shown.
8. Reassemble the gear rack onto the rail by lining up
the threaded hole in the gear rack to the .281 hole
in the rail.
9. Tighten the M6 x 1 x 25 mm screw into this hole.
10. Tighten all M5 set screws.
11. THE M6 X 25 MM MUST BE THREADED
COMPLETELY INTO THE GEAR RACK.
