RIGHT-HAND INSTALLATION: REVERSING OPERATION
As shipped from the factory, the Electra-Ride
TM
LT is set up for
left-side installation (as viewed from the bottom of the stairs).
To convert the unit for right-side installation:
1. Make sure the circuit breaker switch on the rear of the
carriage is in the OFF position.
2. Remove the back carriage cover and the left side cover.

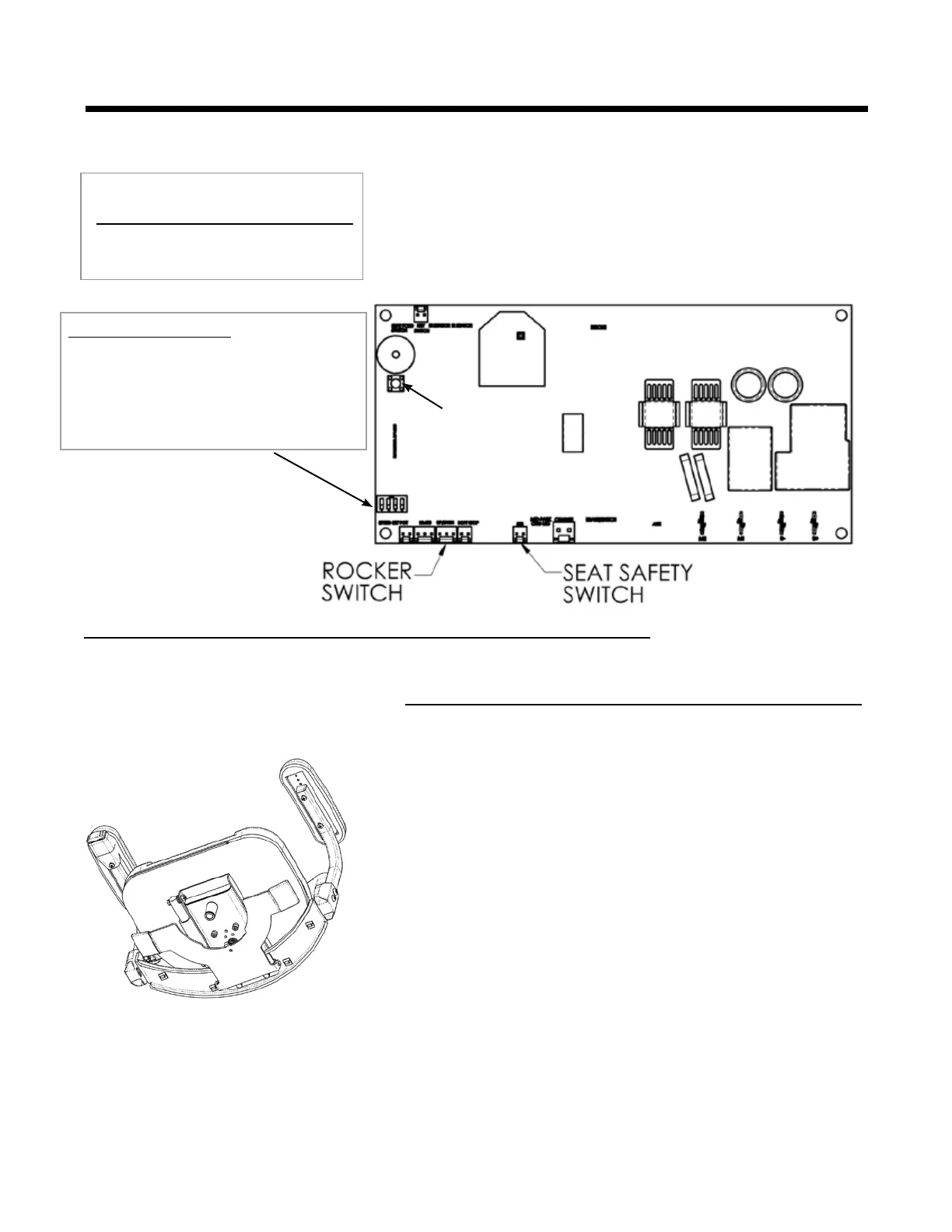

3. Set the No. 3 DIP Switch on the 4-ganged dip switch to the
ON position.
It is imperative that the
circuit breaker be turned OFF
while changing from left-hand
to right-hand installation.
4-ganged DIP switch
• switch 1 = diagnostic
• switch 2 = diagnostic
• switch 3 = right-hand install
• switch 4 = coast delay
LEARN switch
MOVING THE ROCKER SWITCH TO THE LEFT ARMREST
1. Remove 1/4" Phillips screw securing the rocker switch
bracket to the right-hand armrest tube.
2. NOTE WIRE COLOR LOCATIONS AND SWITCH ORIENTATION.
3. Disconnect the (3) wires from the rocker switch.
4. From the bottom of this arm, gently pull the cable out of
the arm.
5. Reinsert and tighten the 1/4" Phillips screw into the right
arm pad.
6. Unclip the wire harness from the right side and reclip the
harness on the left side.
7. Remove the front 1/4" Phillips screw from the left arm
pad.
8. Place the wire harness connects one behind the other (in
line).
Use masking tape to hold the connectors in this in-line
position.
9. Push the taped end of the wire harness through the arm
cover slot, and up through the left arm tube.
10. Untape the wire harness connectors and connect, in the
correct orientation as noted above, to the rocker
switch.
11. Carefully screw the rocker switch cover onto the left arm
(1/4" Phillips screw).
12. Press the rocker switch to verify that the unit moves in
the correct direction.
