Bruno SRE-2750 - DRILLING FOR CHARGE STRIPS

13
©2011,2005 BRUNO INDEPENDENT LIVING AIDS, INC.®
SRE-2750 INSTALL 05-17-2011

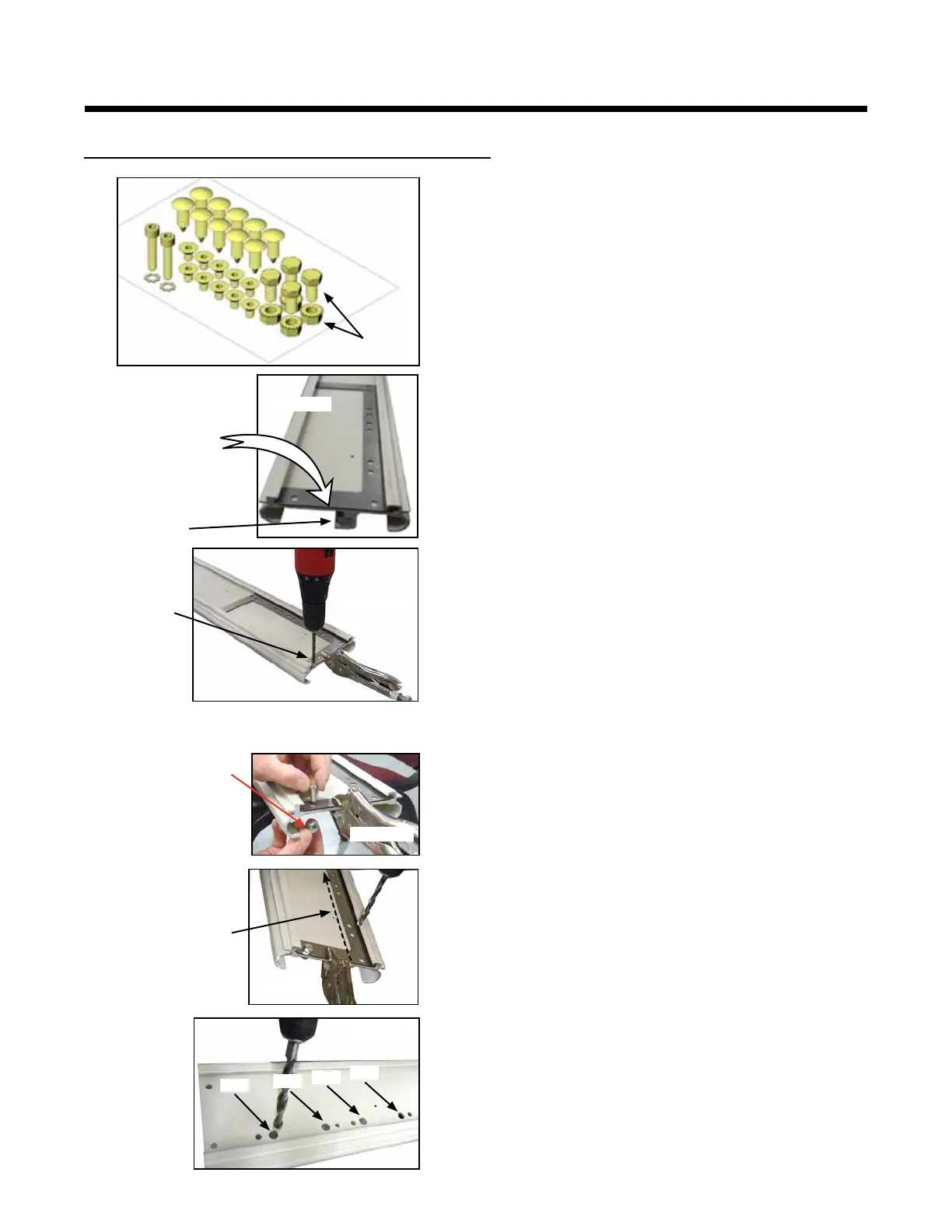

On the skin pack parts board, locate the drilling
template (SRE-27204) and the nut and bolt from
hardware kit (SRE-K-2723) (Fig. 1).
1. Slide the template onto the rail (Fig. 2).
NOTE orientation of template to gear rack!
2. Secure the template with a Vise-Grip
®
(Fig. 3).
3. Using a 5/16” bit, drill one hole in the template
(Fig 3).
4. Insert one M8 x 16 bolt and FINGER TIGHTEN the
nut to hold the template in place while drilling the
remaining holes (Fig. 4).
5. Using a 5/16” bit, drill the remaining (9) holes
(Fig. 5).
6. Remove the Vice-Grip, hardware and template.
7. Using the 1/2” bit, redrill (enlarge) the 3rd, 4th,
7th and 8th holes (Fig. 6).
DRILLING HOLES FOR CHARGE STRIPS
SRE-K-2723
Vise-Grip holding template
while drilling
nger
tighten
INSTALLATION
x 1
gear rack
template and
end of rail ush
Drill
this
hole.
FIG. 1
FIG. 2
FIG. 3
FIG. 4
Drill
remaining
holes (9).
FIG. 5
FIG. 6
3rd
4th
7th
8th
