Bruno SRE-2750 - LEARNING REMOTE TRANSMITTERS

©2011,2005 BRUNO INDEPENDENT LIVING AIDS, INC.®
SRE-2750 INSTALL 05-17-2011
28
LEARNING THE REMOTE INFRARED TRANSMITTER
(not necessary when installing unit for the rst time)R
The operating channel of the two (2) infrared transmitters
included with the SRE-2750 is pre-set at the Bruno factory.
Reasons for relearning transmitters:
• there are multiple units in the same location;
• you have to replace transmitters.
To relearn a transmitter:
1. Turn the circuit breaker OFF.
2. Remove the CARRIAGE COVER to expose the circuit
board.

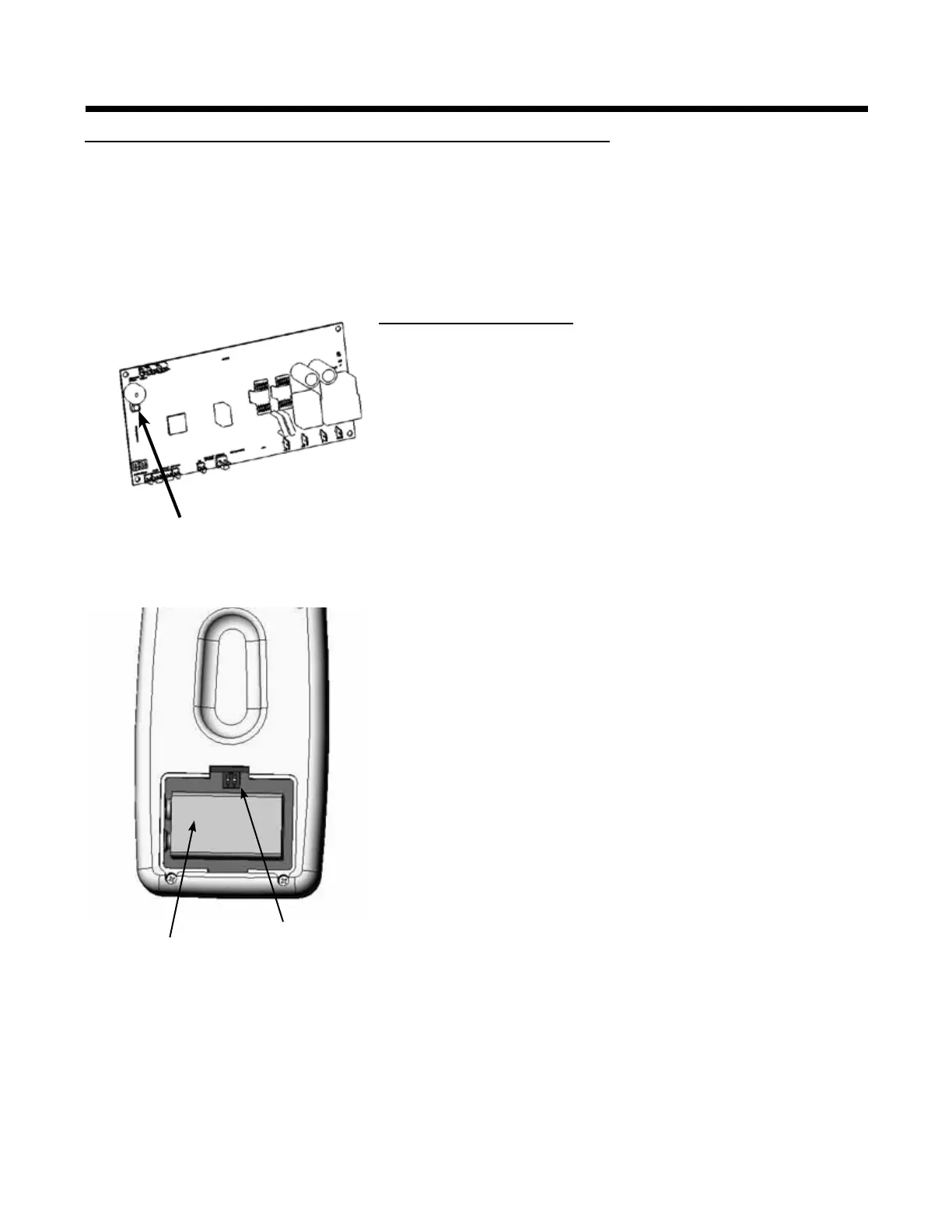

3. Locate the LEARN/ERASE button on the circuit board (see
left).
4. On one of the IR TRANSMITTERS, remove the battery
access panel.
NOTE: If the transmitter is mounted to a wall, unscrew
the (2) mounting bracket screws, turn the transmitter
over and remove the battery access panel.
5. On the TRANSMITTER board, locate the switch labelled
"SW3" (see left).
6. Change the conguration for switches 1 and 2.
Note: There are four possible congurations:
• 1 up, 2 down (default manufacturer's setting)
• 1 up, 2 up
• 1 down, 2 up
• 1 down, 2 down
7. Once you have changed the switch positions:
• turn on the CARRIAGE circuit breaker;
• wait until you hear a BEEP.
8. Clear the memory:
• Hold down the LEARN/ERASE button until the LED
goes out (approximately 12 seconds).
9. Press and hold the LEARN/ERASE button (LED is on). As
you continue to press the LEARN/ERASE button, press
either of the call/send transmitter buttons until the
LEARN/ERASE LED goes out (approximately 2-5 sec.).
10. Release both buttons (LEARN/ERASE and transmitter).
The remote is now “learned”.
11. Test transmitter operation:
• Depress either of the transmitter buttons.
• If the carriage moves, the new conguration has
been accepted and the transmitter relearned.
• If the carriage does not move, repeat Steps 8
through 10.
12. Make sure all transmitters are set to the same switch
conguration.
13. Remount the transmitter back (remount on wall if applicable).
14. Remount and secure the carriage cover.
SW3 switch
9V battery
(access panel
removed)
LEARN/ERASEbutton
ELECTRICAL
