SEAT COVER GAP ADJUSTMENT

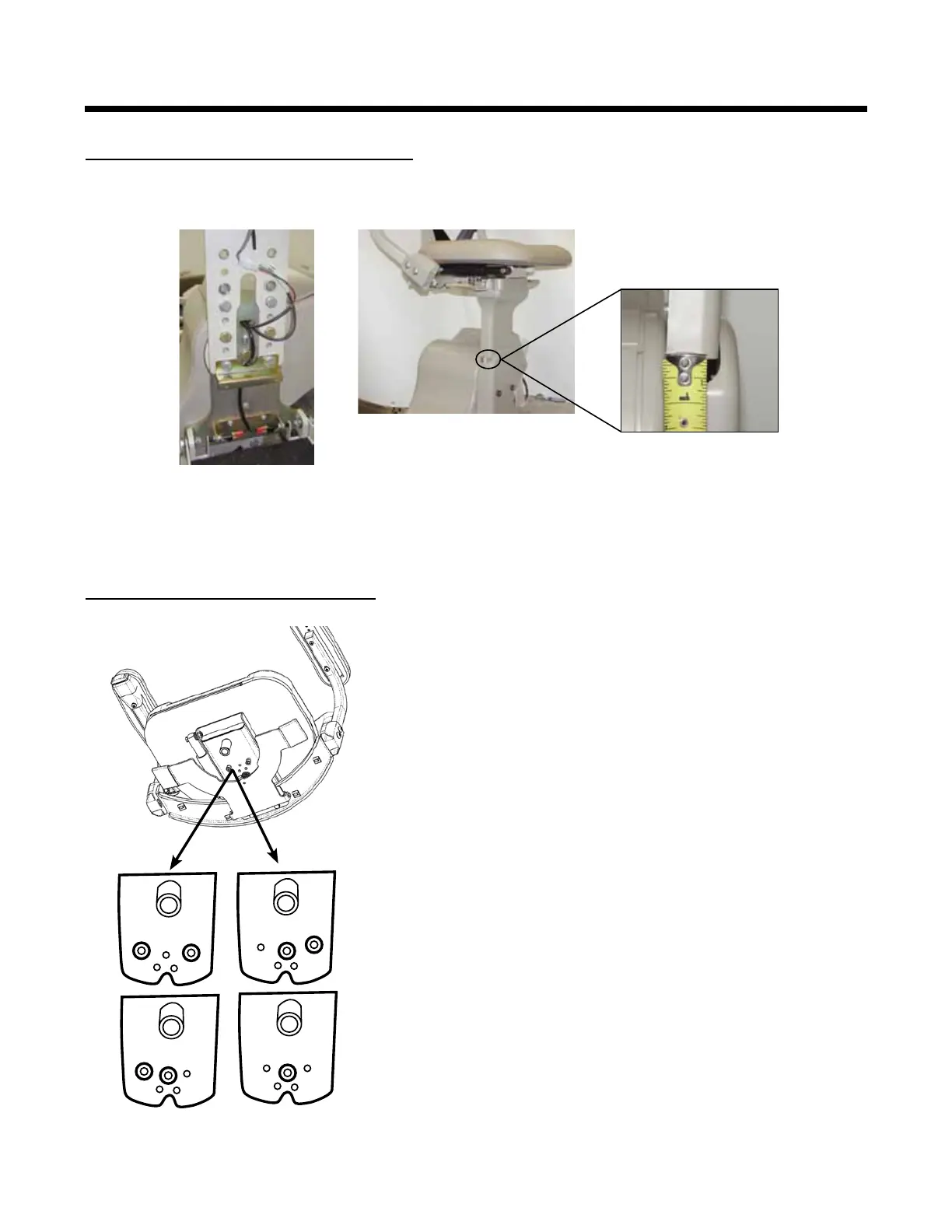

Installing the seat post in its highest position (A) will cause a gap (B) between the seat post and
footrest covers.
A
B
B
(close up)
To eliminate the gap, lower the seat post height as allowed by the installation and customer
preferences (see Seat Height Adjustment instructions on the previous page).
ADJUSTMENTS
SEAT SWIVEL ADJUSTMENT
You may set the seat for any one of (4) possible
swivel congurations. To change from the standard,
factory-set conguration (no. 1), change the position
of the M8 socket head cap screws on the bottom seat
channel, as shown to the left. For Conguration (4),
you will discard one M8 screw.
• Conguration (1):
◊ standard, factory setting
◊ swivel of 67 degrees to the right and to the left.
• Conguration (2):
◊ swivel of 90 degrees to the left (when sitting in
seat)
• Conguration (3):
◊ swivel of 90 degrees to the right (when sitting in
seat)
• Conguration (4):
◊ swivel of 90 degrees to the right and to the left.
1
2
3
4
VIEWED FROM BOTTOM OF SEAT
