Bruno SRE-2750 - CARRIAGE MOUNTING AND ANGLE ADJUSTMENT

17
©2011,2005 BRUNO INDEPENDENT LIVING AIDS, INC.®
SRE-2750 INSTALL 05-17-2011

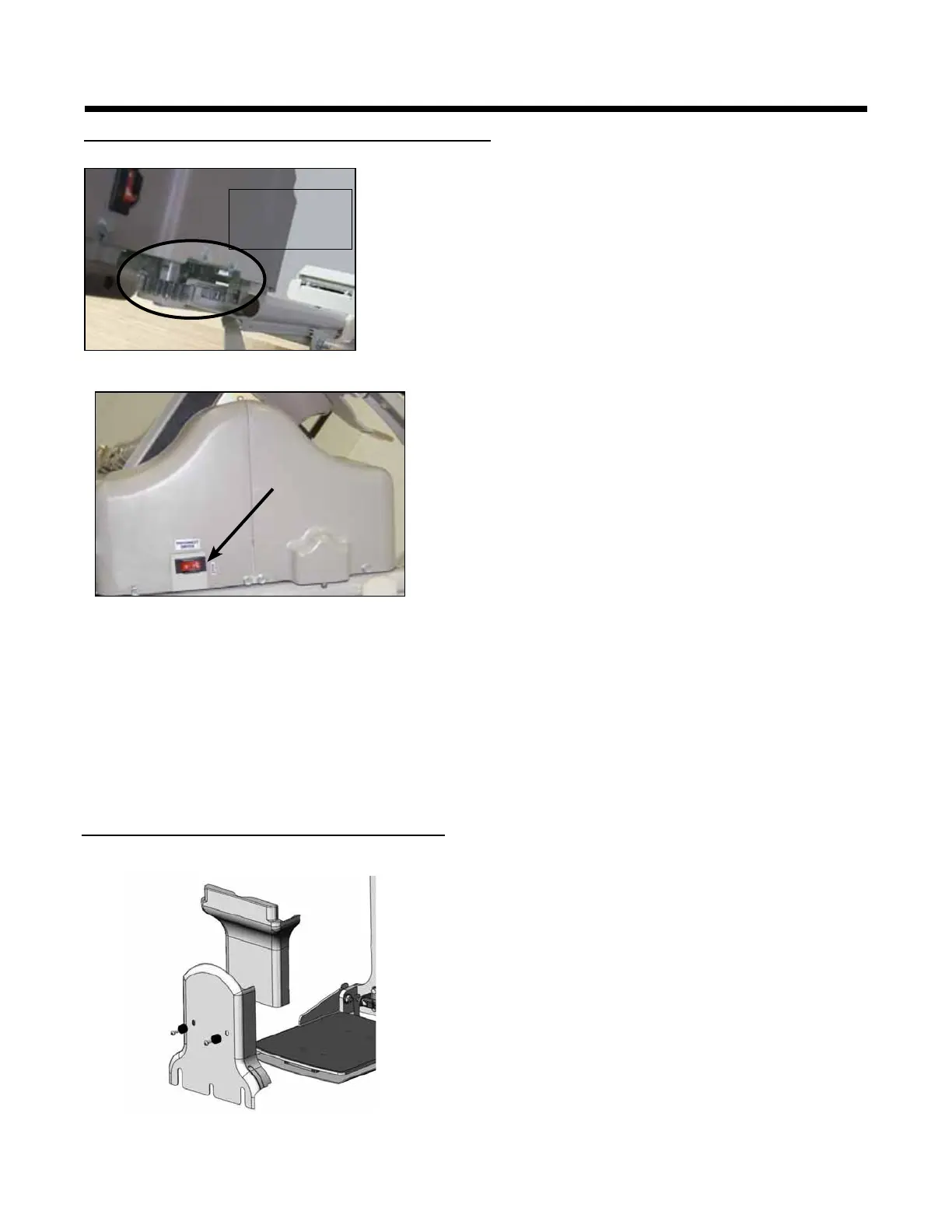

MOUNTING CARRIAGE ON UPPER RAIL
1. Remove the carriage from the shipping package.
2. Be careful of the charge contacts under the carriage.
3. Make sure the (4) guide pads are clean.
4. Manually slide the carriage onto the rail until the spur
gear rests against the gear rack.
NOTE: Make sure the gear aligns properly with the rack.
It should not catch on the rack and freely engage.
5. Cut the cable tie at the circuit breaker.
6. Turn the circuit breaker ON.
7. Run the carriage fully onto the rail by pressing the
remote button.
NOTE: During the initial power up, there will be a
delay of up to 10 seconds from the time the
remote button is pushed to the start of
carriage movement. This is normal! Hold down
the remote button until the carriage moves.
8. Continue pressing the button until the carriage reaches
the bottom of the rail.
9. Mount the upper end cap using the M8 x 1.25 x 16 mm
hex head cap screws provided.
1. Turn the circuit breaker OFF.
2. Remove the (2) Phillips screws securing the seat post
front cover.
3. Remove the front cover.
spur gear
meeting gear
rack
circuit
breaker
INSTALLATION
ADJUSTING THE CARRIAGE ANGLE
