Bruno SRE-2750 - CLAMP WEDGE LOCK INSTALLATION

©2011,2005 BRUNO INDEPENDENT LIVING AIDS, INC.®
SRE-2750 INSTALL 05-17-2011
16
Only for installations where the bottom end of the rail
does not contact the oor, Bruno has designed a rail locking
wedge.
BEFORE you begin clamp installation, determine if the bottom
end of the rail will rest on the oor.
If it does not (for example, if the stairs are carpeted but the
bottom landing is not), install the wedge lock to the CLAMPS
ON THE FIRST AND LAST STEPS ONLY.
To install the wedge lock to the top and bottom clamps
only:

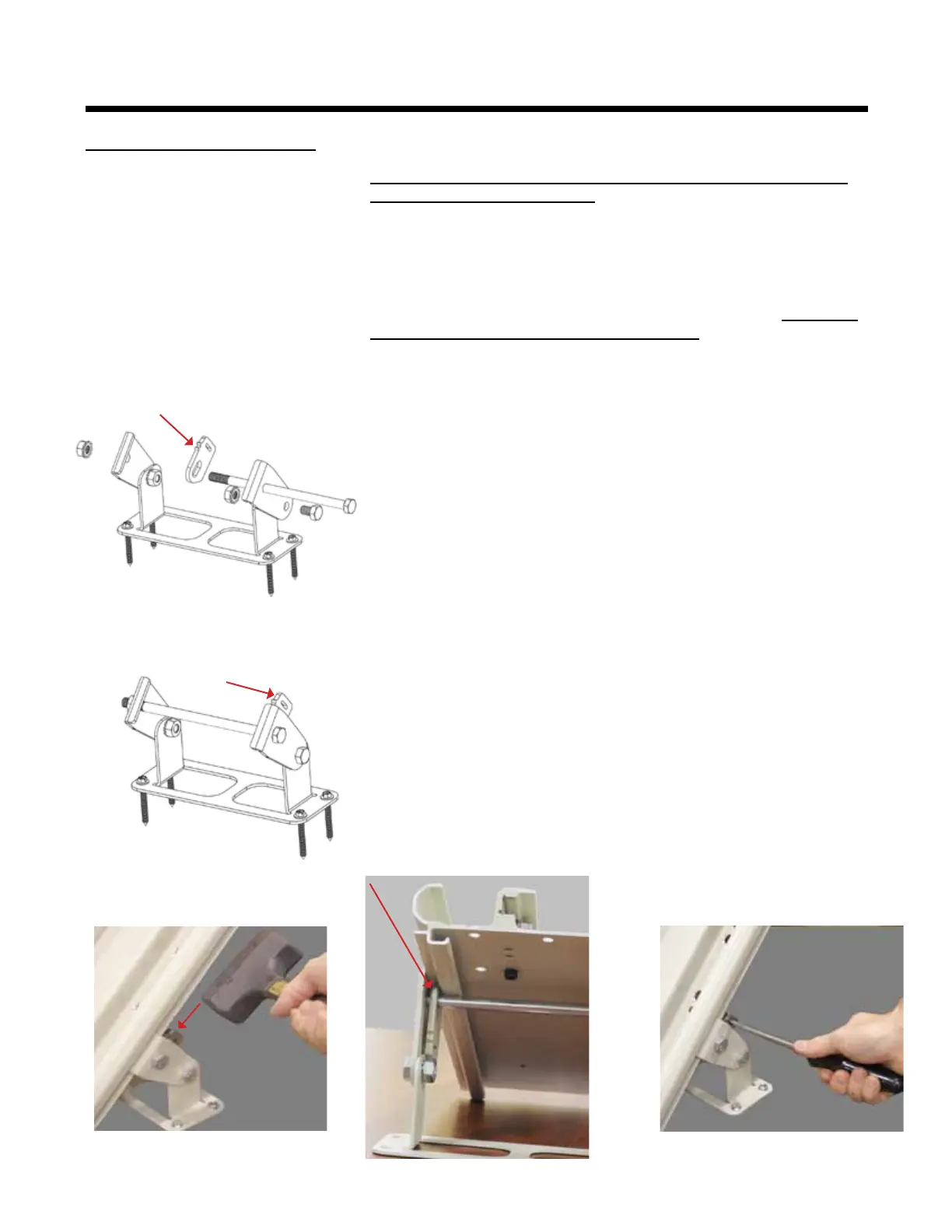

1. Loosely assemble the wedge lock to the clamps as shown. The
wedge should swing freely to allow for positioning against the
rail.
2. At the top and bottom of the rail, mount the clamp to the rail
as shown.
NOTE: The teeth of the wedge face up to contact the
rail.
3. Tighten the top clamp bolt to capture the wedge between the
clamp and the lower outside edge of the rail.
4. Tap the wedge with a rubber mallet until the wedge is rmly
seated.
5. Push down on the rail to verify that it does not move.
6. Should you need to remove the wedge, use a at head
screwdriver as shown.
Teeth face up to contact rail.
Wedge must swing in
from top side
(toward top landing)
to hold.
CLAMP WEDGE LOCKS
INSTALLATION
