CONNECTING THE BATTERY CHARGER (continued)
12. Connect the battery charger power cord to the
nearest grounded 120VAC wall or oor outlet.
NOTE: The battery charger should be plugged into
a household outlet at all times.
The only exception is when turning unit "off"
(see Long-Term Storage section).
13. Connect the battery charger wiring harness to the
elevator power cable.
14. Bundle together loose wires.
15. Turn ON the charger power switch.
16. Turn ON the unit circuit breaker.
17. Mount (1) remote at the top of the rail and (1) at
the bottom of the rail. (Refer to the Mounting the
Standard Call/Send Transmitter section later in
this manual.
+

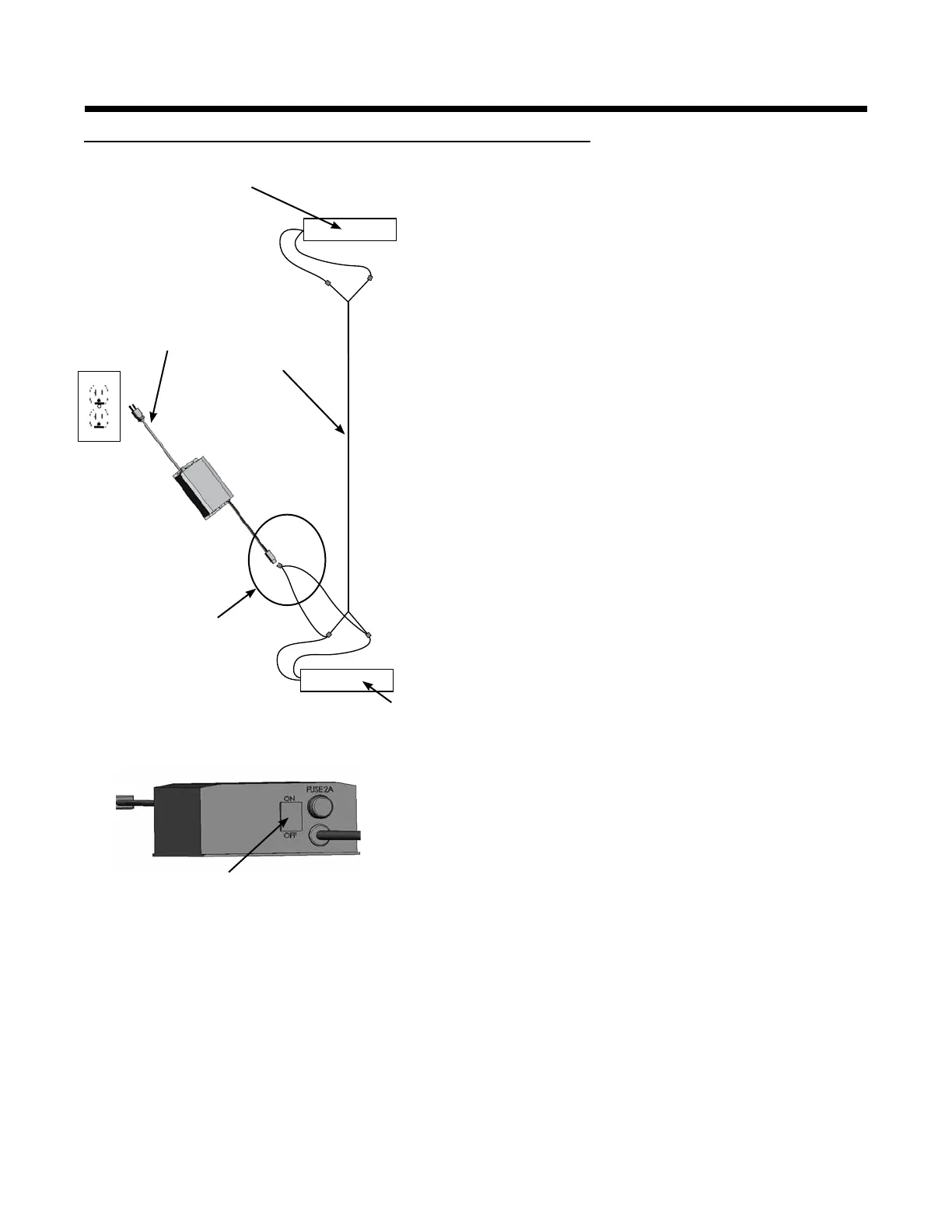

elevator
power cable
elevator charge
contact
charger
power cord
connect charger
wiring harness
to elevator
power cable
charger power switch
elevator charge
contact
ELECTRICAL
