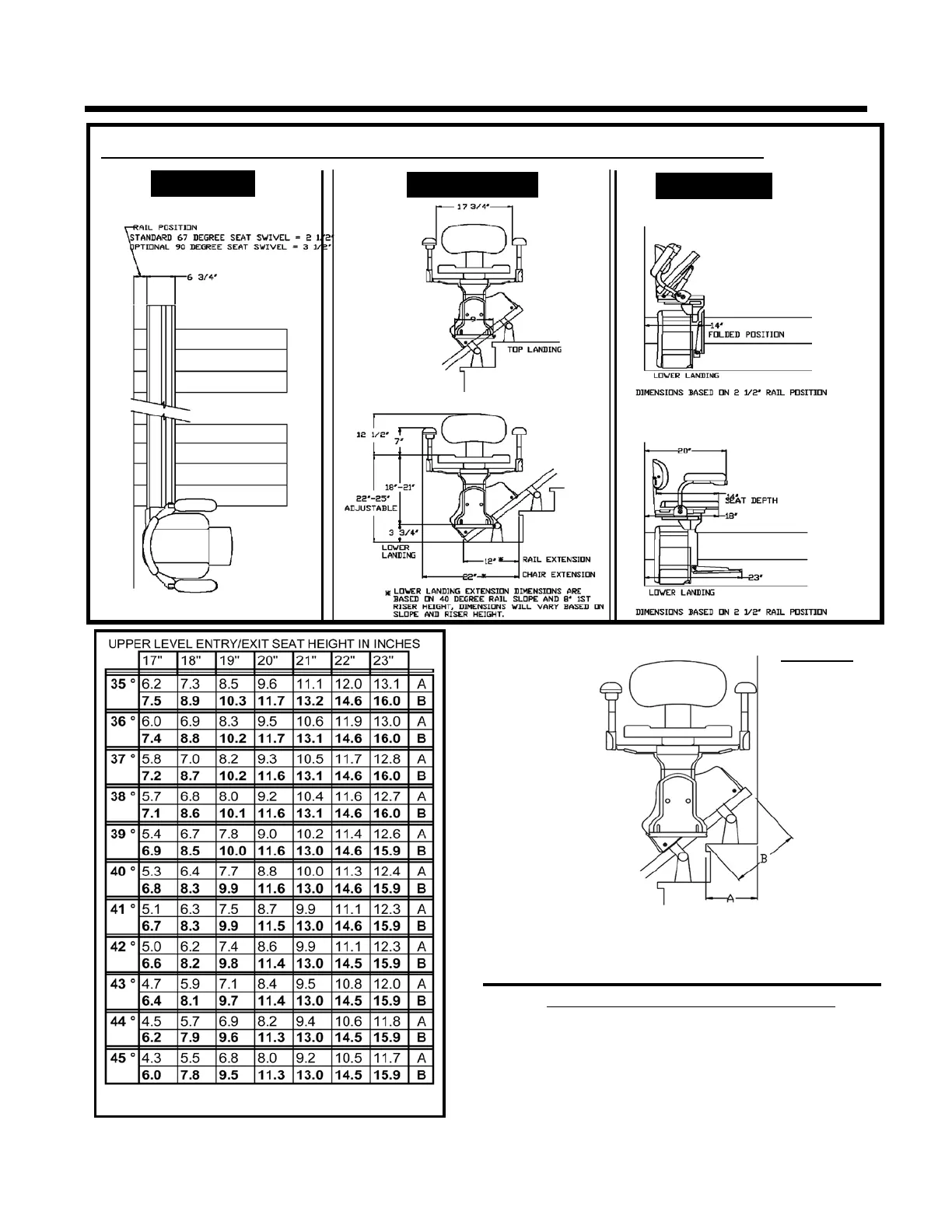

TOP VIEW
FRONT VIEWS
SIDE VIEWS
DIMENSIONS ON CHART ARE WITH THE CHAIR
IN THE LOWEST POSITION: 22”.
If A is < 3 or B is >12, then one or more adjustable clamp sets (SRE-27291) are required.
The chair extends approximately 2”
beyond the rail at the upper landing.
ALTERNATE SEAT HEIGHT DIMENSIONS
Measured @ Lower Level:
23”, 24”, 25”
Reduce B by 1.5” for each inch the
seat height is increased.
Step 4
Step 3: SRE-2750 ELECTRA-RIDE™ APPLICATION DETAILS
