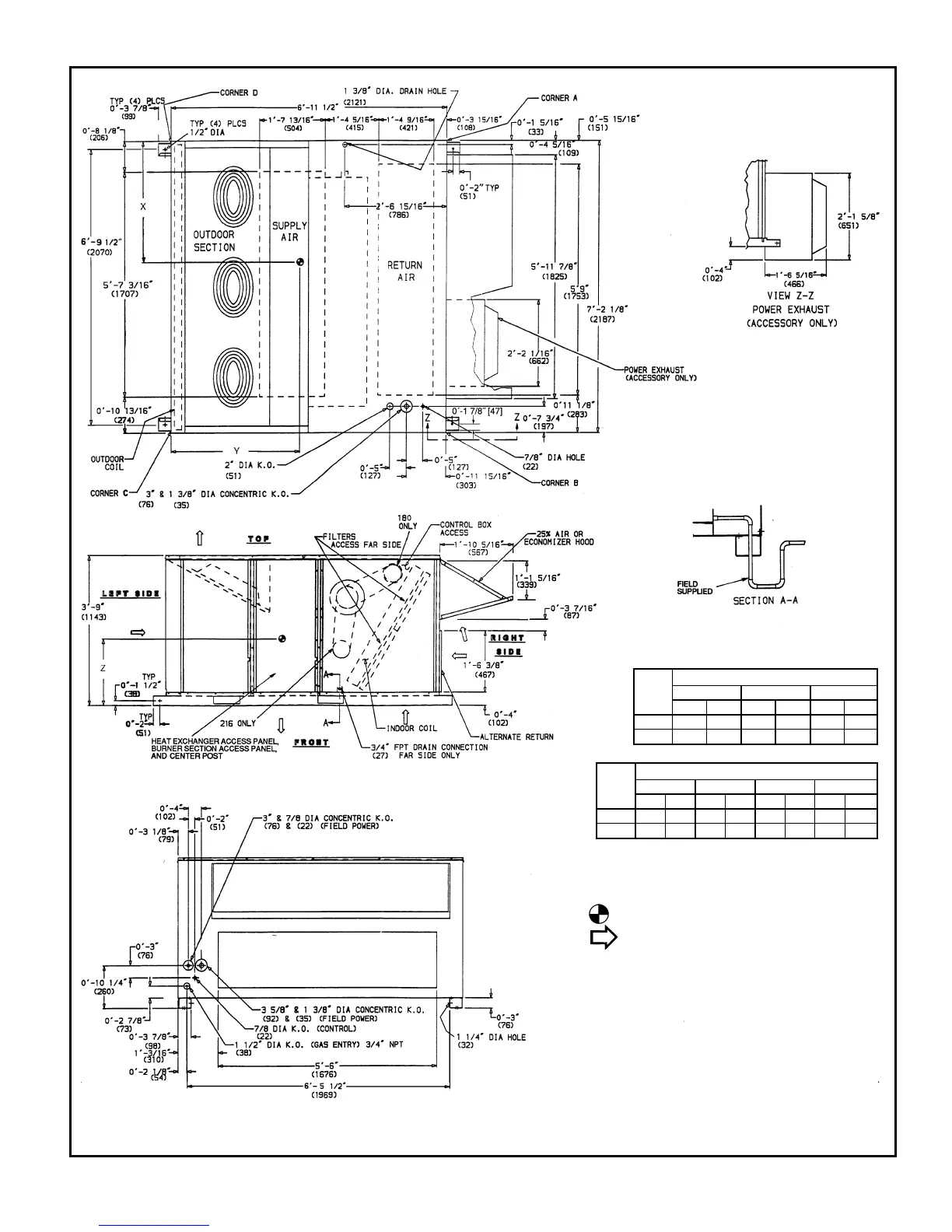

BASE UNIT DIMENSIONS — 579F180,216
UNIT
579F
DIMENSIONS
XYZ
ft-in. mm ft-in. mm ft-in. mm
180 3-2 965 4-0 1219 1-10 559
216 3-7 1090 3-2 965 1- 8 508
UNIT
579F
CORNER WEIGHT*
ABCD
lb kg Lb kg lb kg lb kg
180 384 174 370 168 358 162 538 244
216 520 235 508 230 486 220 636 288
*Weights are for unit only (aluminum plate fins) and do not in-
clude options or crating.
NOTES:
1. Dimensions in ( ) are in millimeters.
2. Center of gravity.
3. Direction of airflow.
4. Ductwork to be attached to accessory roof curb or adapter only.
5. Minimum clearance:
a. Rear: 7809 (2134) for coil removal. This dimension can be re-
duced to 4809 (1219) if conditions permit coil removal from
the top.
b. Left side: 4809 (1219) for proper condenser coil airflow.
c. Front: 4809 (1219) for control box access.
d. Right side: 4809 (1219) for proper operation of damper and
power exhaust (if so equipped).
e. Top: 6809 (1829) to assure proper condenser fan operation.
f. Local codes or jurisdiction may prevail.
6. With the exception of clearance for the condenser coil and the
damper/power exhaust as stated in Note No. 5, a removable
fence or barricade requires no clearance.
7. Dimensions are from outside of corner post. Allow 08-
5
⁄
16
9 (8) on
each side for top panel drip edge.
8. Do not locate adjacent units with flue discharge facing econo-
mizer inlet.
