68
Equipment Control Module Fan Coil Heat Pump
OO
RVS Cooling O/B W2 W2
Heat Stage 2 W/W1 W1
Remove J2
Jumper for
heat staging
Heat Stage 3 Y1 / W2 W2
Heat/Cool Stage 1 Y/Y2 Y/Y2 Y
Fan G G
24VAC Hot Heating Rh R R
24VAC Hot Cooling Rc Y1 Remove J1
Jumper for
Dehumidify
modes
Dry Contact 1 D1
Dry Contact 2 D2 DH
24VAC Common C C C
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com SRTN
Outdoor Sensor *
Humidifier Solenoid
Valve *
Remote Room
Sensor *
A08129

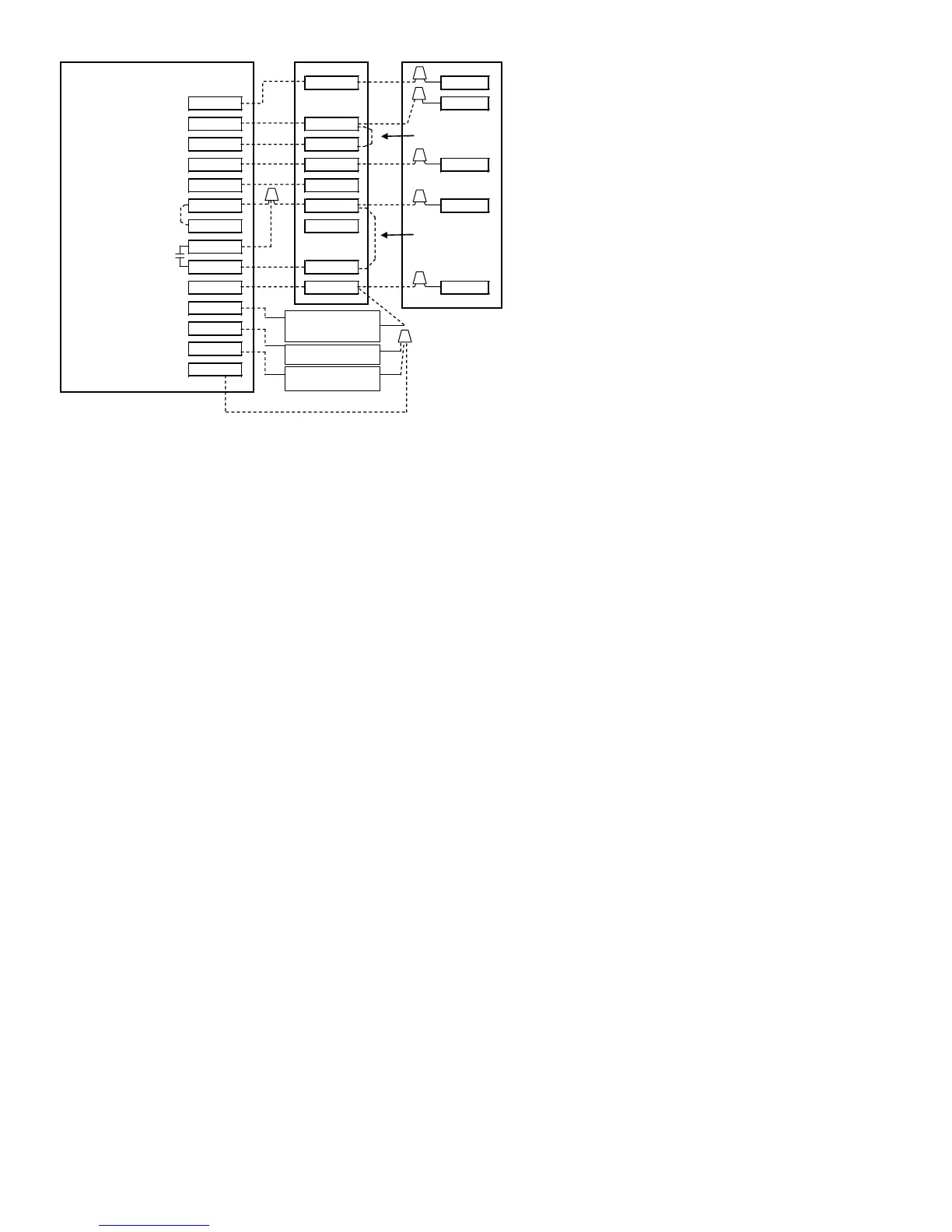

Fig. 24 -- FV/FK Fan Coil with 1 --Stage Heat Pump
* Indicates connection may not be required/available.
