Bryant PREFERRED T6-PRH-A - Thermidistat Control Location; T6-NRH-A Carton Contents

9
A07753

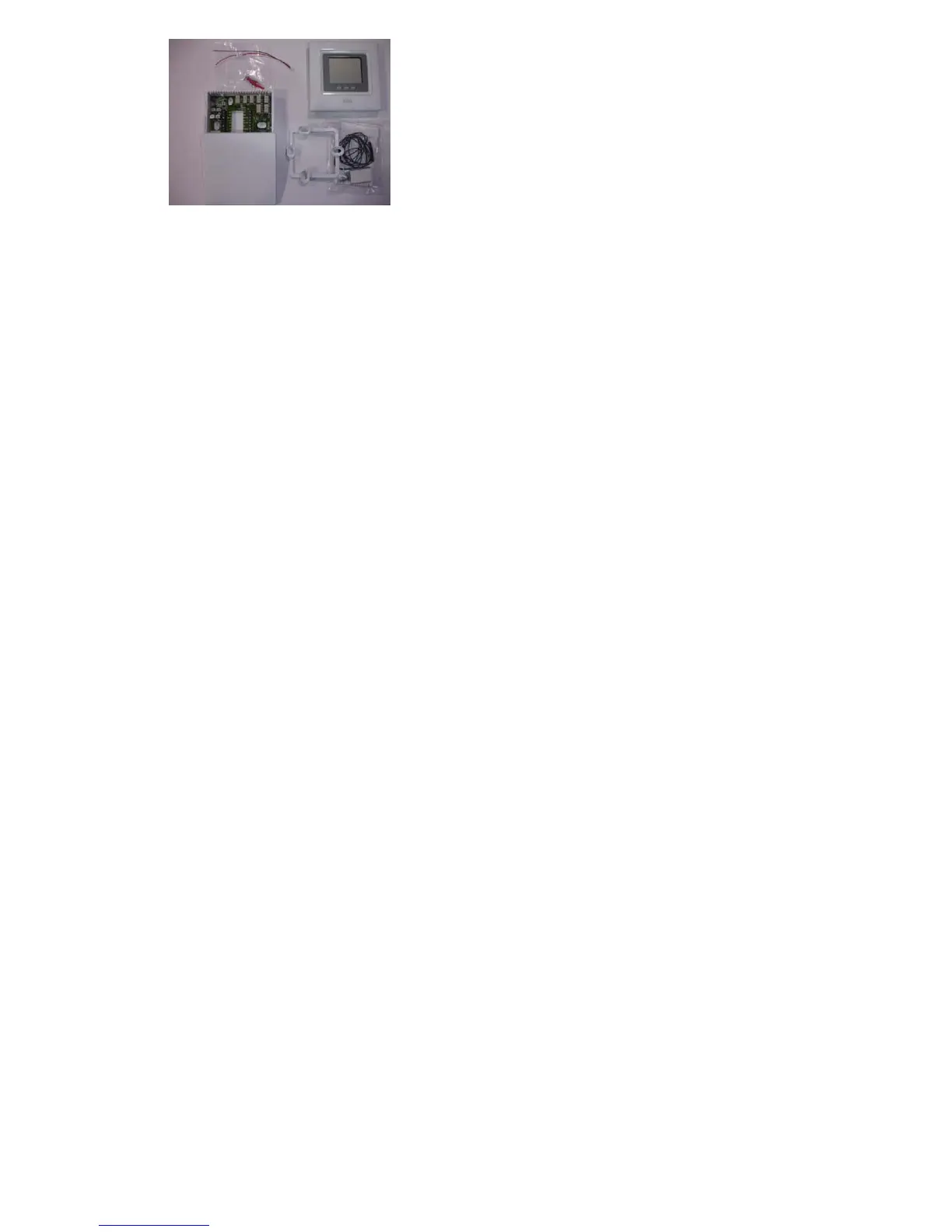

Fig. 3 -- T6 --NRH -- A Carton Contents
1. Display Module
2. Stand -- off for Equipment Control Module
3. Outside Air Temperature Sensor, screws and pigtail.
4. Equipment Control Module
Thermidistat Control Location
Thermidistat Control should be mounted:
S Approximately 5 ft (1.5m) from floor.
S Close to or in a frequently used room, preferably on an inside parti-
tioning wall.
S On a section of wall without pipes or duct work.
Thermidistat Control should NOT be mounted:
S Close to a window, on an outside wall, or next to a door leading to the
outside.
