Bryant PREFERRED T6-PRH-A - Typical Fan Coil Heating Only Diagram

69
Typical
Equipment Control Module Fan Coil
RVS/Heat Stage 2 O/B W2 E
Heat Stage 1 W/W1 W2
Compressor Low Y1 / W2
Compressor High Y/Y2
Fan G G
24VAC Hot Heating Rh R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2
24VAC Common C C
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com SRTN
Outdoor Sensor *
Humidifier Solenoid
Valve *
Remote Room
Sensor *
A08130

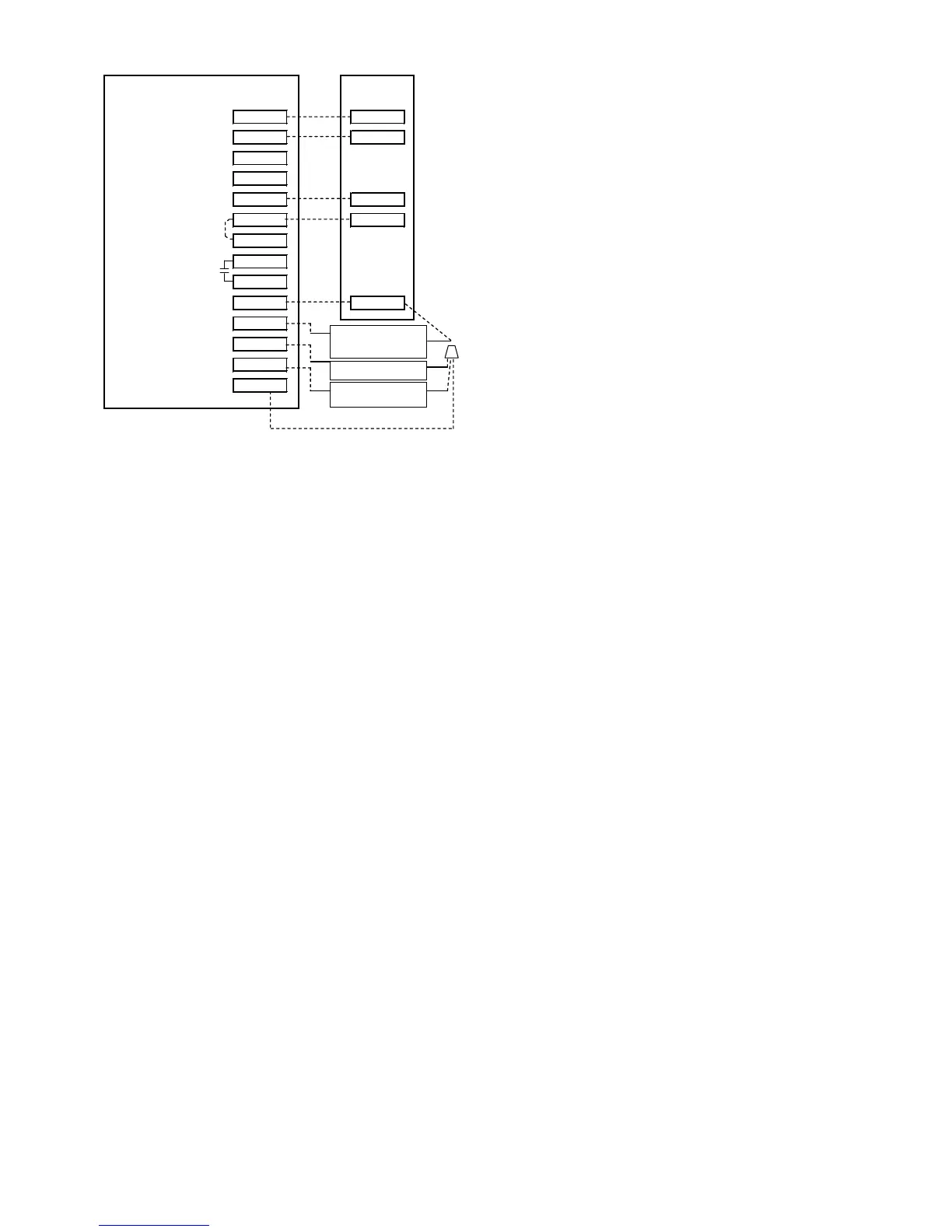

Fig. 25 -- Typical Fan Coil Heating Only
* Indicates connection may not be required/available.
