Running with the Feeder Assembly

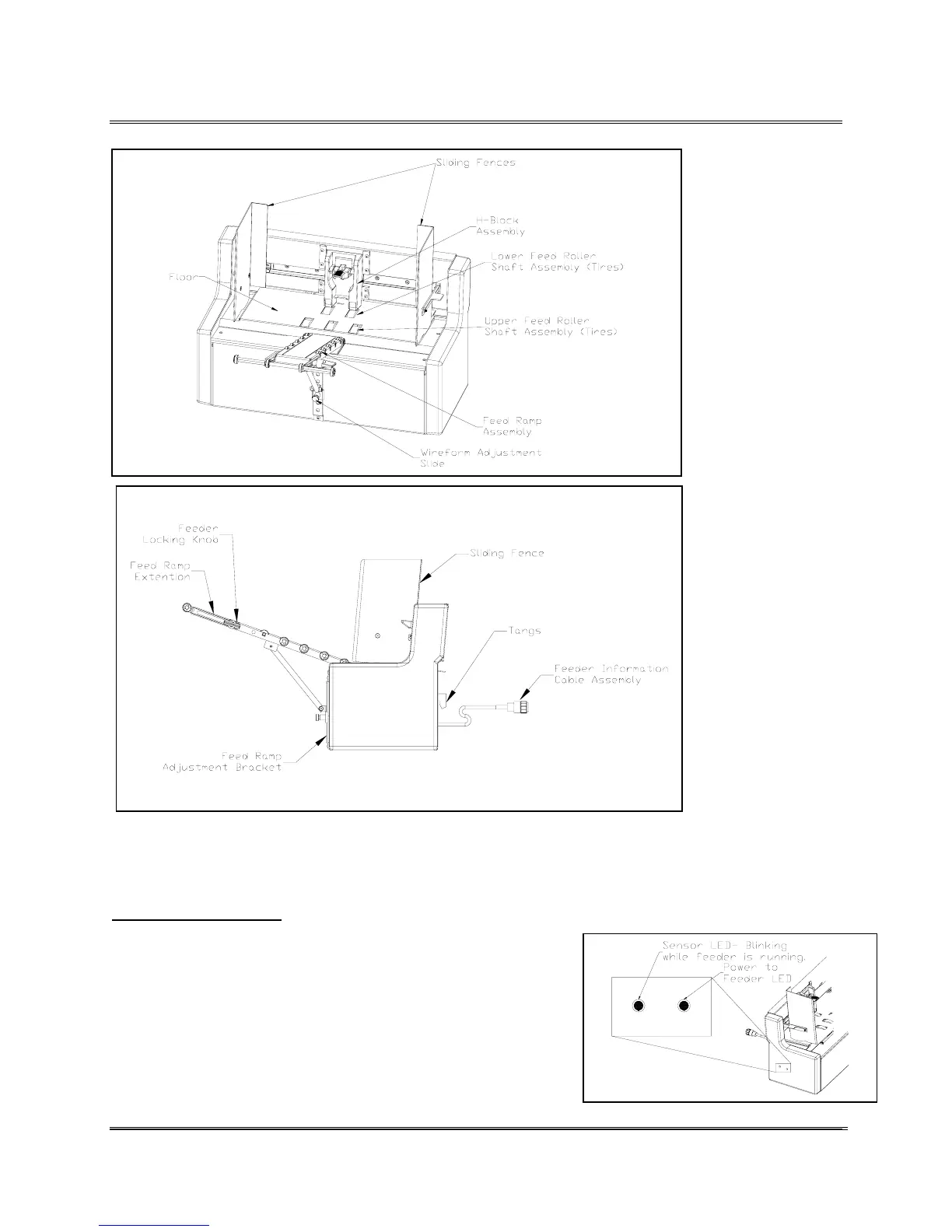

Bryce Feeder
Parts &
Locations
The red lights on the back of the feeder indicate when the
feeder is operating correctly and when they are not lit
attention to the feeder is required.
What the
LED’s Do
When the LED’s are:
Feeder LED Steadily Lit- While the Feeder has power the
LED will remain lit.
Sensor LED Blinking – When media is being fed the LED
will blink as each piece passes beneath the sensor. When
media is blocking the sensor beam the LED will remain off.
Once the media is removed from the path of the beam the
LED is lit.
Revision C 30K USERS MANUAL Section 5 -
P/N 90-00203-001
2
