Bryce 30K - Print Cartridges

Printer Tips
When lines of print start to run on top of each other the Print
Cartridges have to be synchronized vertically. Perform a
Vertical adjustment whenever the center of the Test Pattern
isn’t a solid crooked line. Work down from Head 1 on Bank A
or Head 4 on Bank B.
Vertically
Synchronizing
a Bank of
Print
Cartridges
The following steps are an example of how to synchronize
Print Cartridges for Bank A. The same steps are taken for
vertically synchronizing Bank B.
Example:
In the example below the crooked line in the center indicates
Print Cartridge #3 has to have the printer perform a vertical
print adjustment.
Use the following steps to adjust Print Cartridge #3:
• Accessing the menu can only be accomplished in the
OFF LINE mode.
• When in ON LINE mode press the [On Line] button.
Once OFF LINE the service menus are accessible.
Press and hold down the [Menu] and [-] (Minus)
button simultaneously until SERVICE MENU appears
on the LCD display (in about two seconds).
• Press the [+] plus or
[ - ] minus buttons to scroll
through the Service Menu options until the 1. ADJUST
PRINT option is displayed on the LCD panel.
• Press the [Enter] button to select this option.

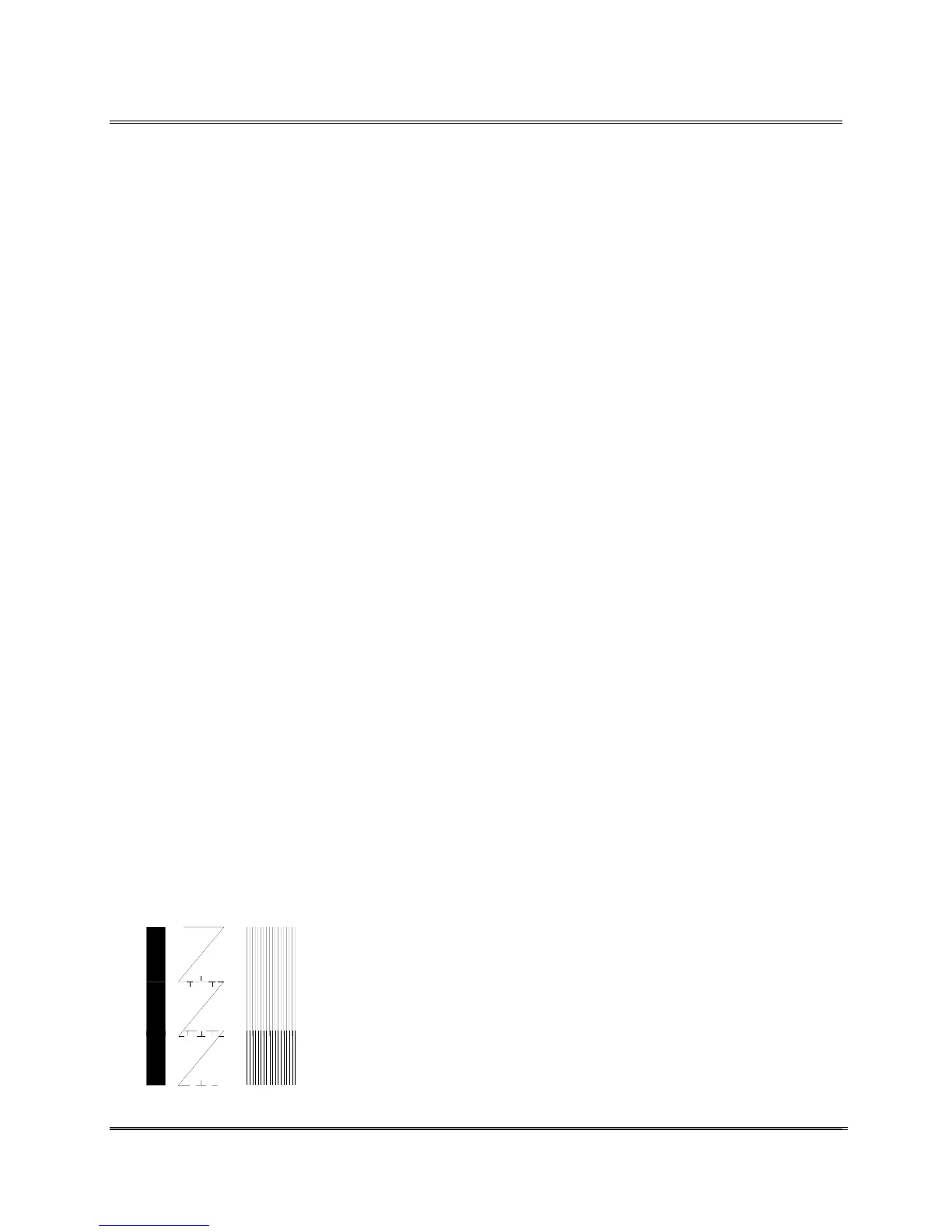

• Now print out a Test Pattern by pressing the [Test
Env] button. The printer will print a Test Pattern like
the following example:
Head 1 Bank A
Head 2 Bank A
Head 3 Bank
A
Revision C 30K USERS MANUAL Section 4 -
P/N 90-00203-001
5
