BST CLS Pro 600 Quick Reference Guide

Quick Reference Guide QRG
2.2.4 Actuator with position feed back
(EMS 17, EMS 21, EMS 22)
2.2.4.1 Determine guiding direction
for operating mode Servo-center
If you are using an actuator with position feedback the guiding
direction for operating mode Servo-center must be checked.

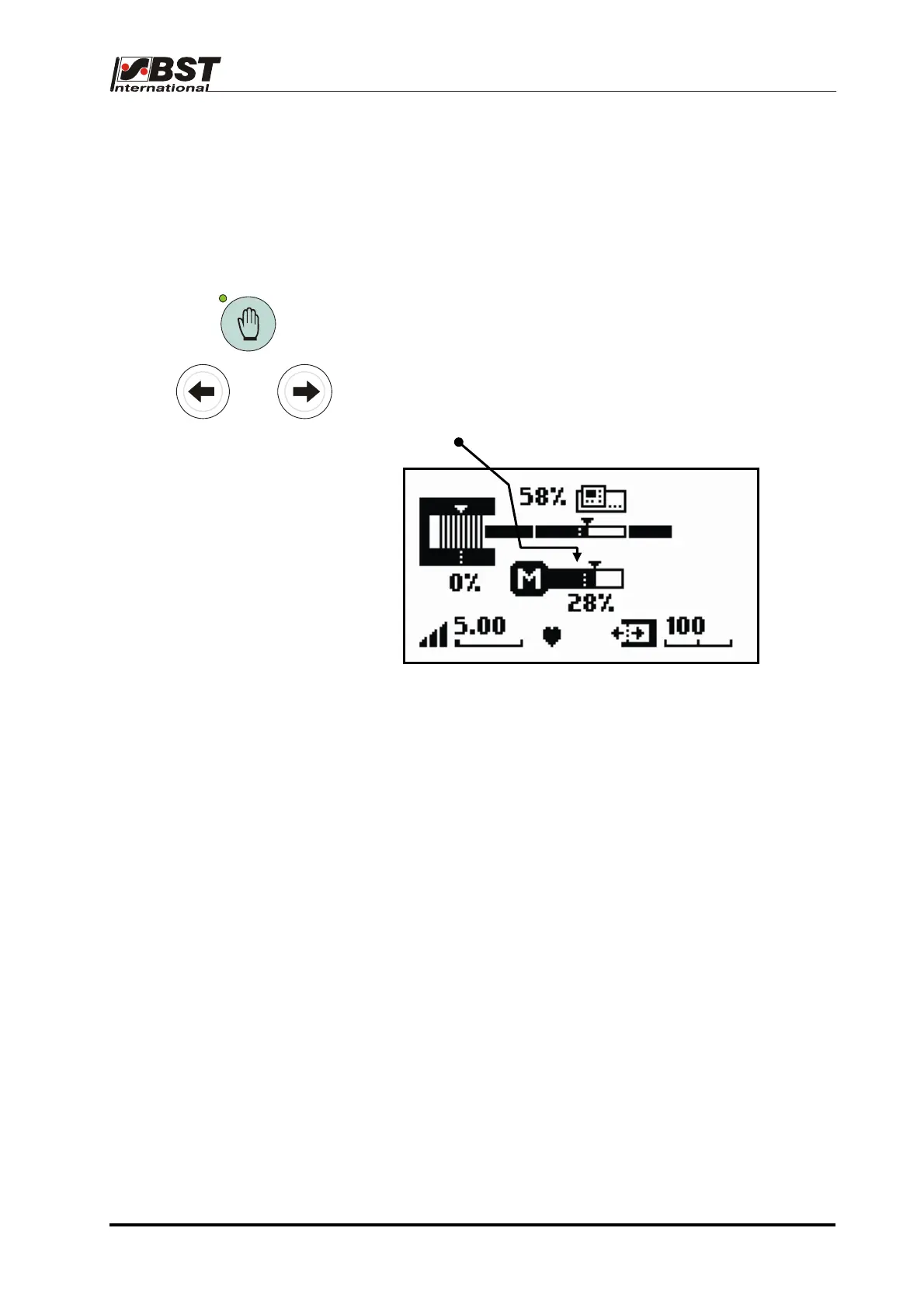

1. Press key MAN.
The controller changes to the manual operating mode.
The LED of the key lights.
2. Press arrow keys left or right.
Observe position indicator in the display!
When pressing arrow key left the bar display must move to the
left.
When pressing arrow key right the bar display must move to
the right.
If the bar display moves in the opposite direction then change
position of DIL switch S4.2 on the processor board.
oder
Quick Reference Guide EDV no.: MD.341.01.01
ekr 500 Plus with CLS Pro 600 Issue Date: 31.03.2009 Page: 7/18
