Quick Reference Guide QRG
2.2 Start-up of the EMS actuator
2.2.1 Determine sense of motor rotation
During start-up the assignment of the arrow keys to the actuating
direction (sense of motor rotation) of the actuator must be checked.

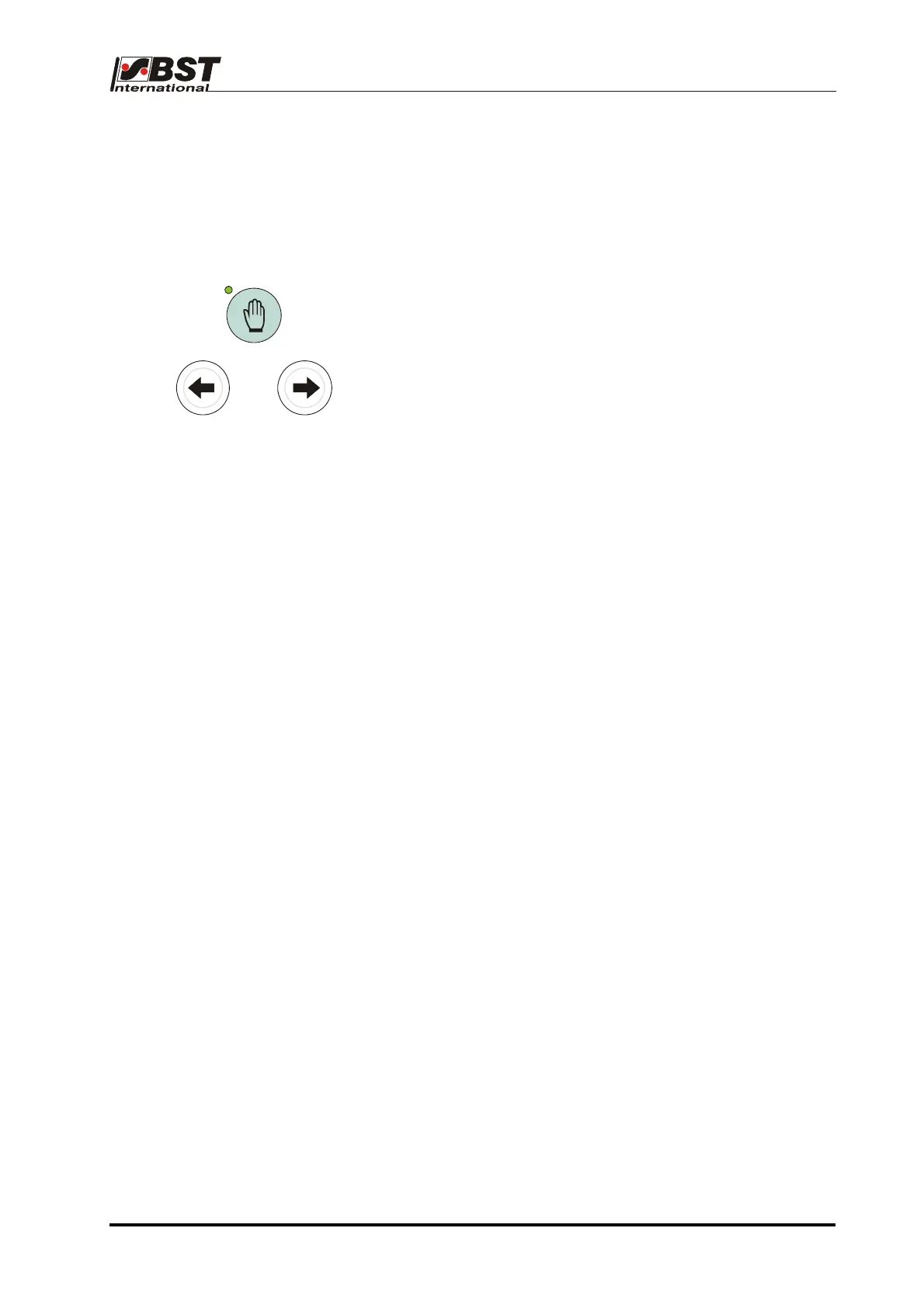

1. Press key MAN.
The controller changes to manual mode.
The LED of the key lights.
2. Press arrow key left or right.
Observe guiding device!
When pressing arrow key “right“ the guiding device must move
towards the sensor’s cable connection.
If the guiding device moves in the opposite direction then the
motor connection lines on terminal strip X7 (terminal 42 and 43)
must be swapped over. (see manual ekr 500 / ekr 500 Plus).
oder
2.2.2 Determine guiding direction
Setting the guiding direction for line or contrast guiding is carried
out on the CLS Pro 600 line and contrast sensor (see point 3.4).
2.2.3 Actuator without position feed back
(EMS 5 / EMS 10 / EMS 16)
2.2.3.1 Determine guiding direction for
operating mode Servo-center (OMG 4, OMG 8)
If you are using a servo-center component OMG 4 or OMG 8 the
guiding direction for the operating mode ‘servo-center’ must be
checked.
1. Press key Servo-center.
The LED of the key lights.
Observe the guiding device!
The guiding device must move towards its center position.
If the guiding device moves to one of its stop positions, then
change position of DIL switch S4.2 on the processor board.
Quick Reference Guide EDV no.: MD.341.01.01
ekr 500 Plus with CLS Pro 600 Issue Date: 31.03.2009 Page: 5/18
