4.3 Edge set-up mode

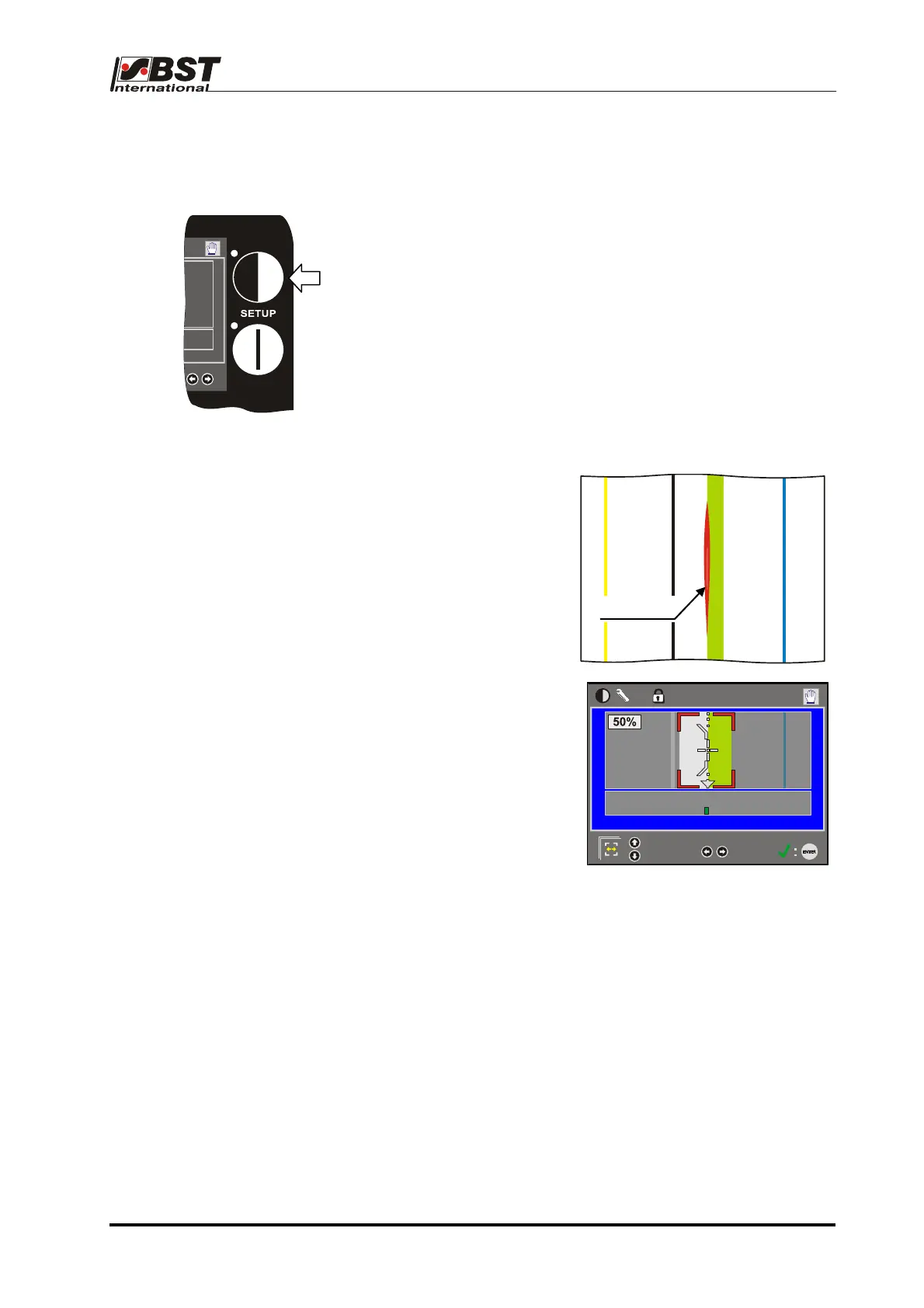

1. Press key SET-UP EDGE to call up the set-up mode.
The LEDs inside the SET-UP key will illuminate. The LED
inside the ENTER key will flash.
The sensor light will be switched on and it will flash. The laser
line will be visible simultaneously.
2. Use the laser line to position the sensor on the required edge.
Use the mechanical adjustment device to fix the position.
The screen display
of the commander is
as follows:
Laser line
3. Press the ENTER button.
The LEDs inside the ENTER nad SET-UP keys will be
extinguished.
The display will change over from set-up mode to the scanning
mode.
4. Press the ENTER button.
The system will now switch back to AUTO mode (operating
mode).
The edge set-up is finished.
Quick Reference Guide EDV no.: MD.341.01.01
ekr 500 Plus with CLS Pro 600 Issue Date: 31.03.2009 Page: 16/18
