Overview
7
AC Receptacle:
For connecting the AC power cord to the Control Unit.
Mounting Bracket:
Secures Control Unit to infusion stand or custom
EKOS™ CU 4.0 Cart.
USB Port:
Used by qualified personnel to download data and event
logs using only a USB memory stick.
Equipotential Terminal:
In the absence of adequate grounding on the A/C mains
power line, this terminal can be connected to a locally
available external equipotential line to prevent danger
caused by the difference in the potentials between this
device and other devices.
Side View

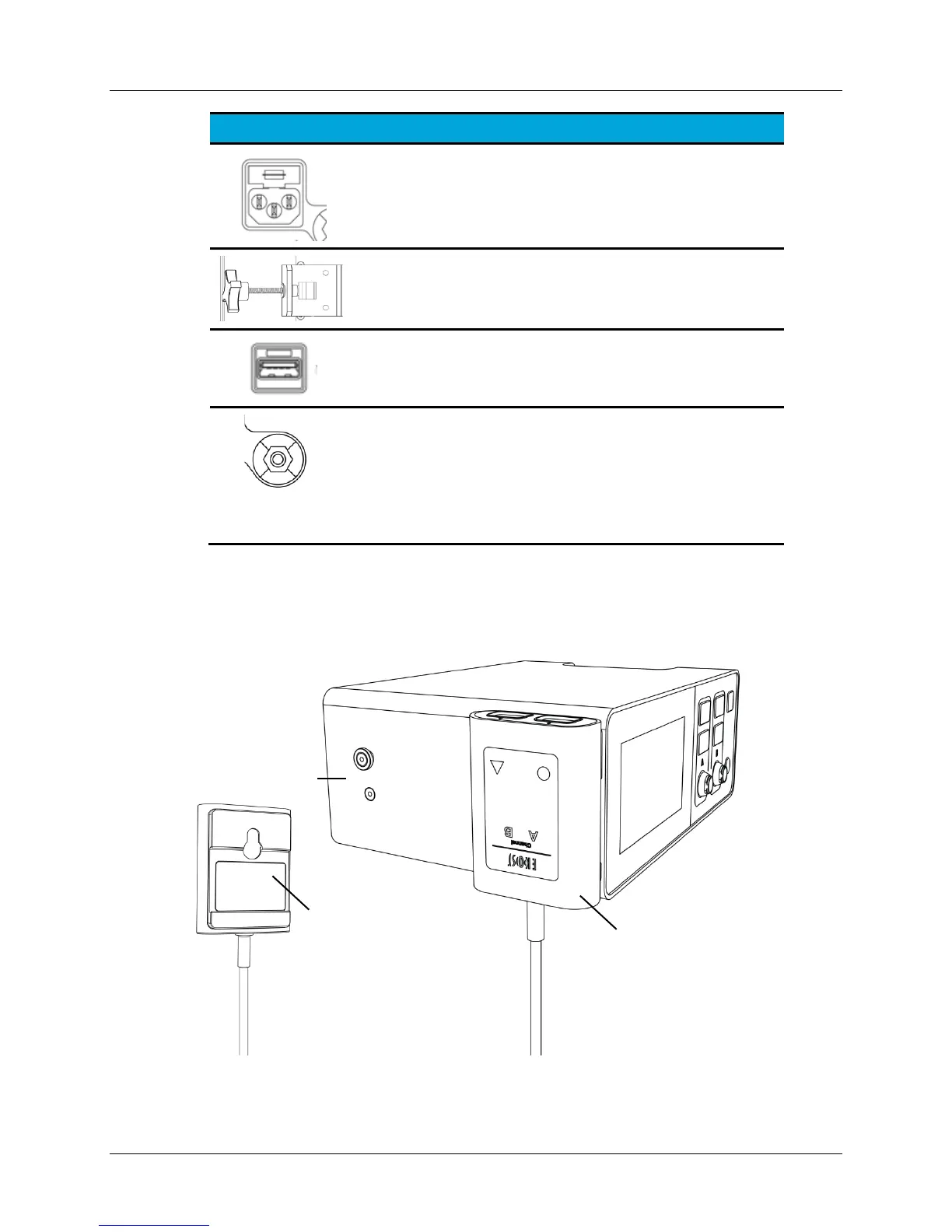

Figure 4. Side View of Control Unit
Connector Interface Cable
Attached for Storage
Cable Attachment
Bracket
