BTG EKOS - Front View

Overview
4
Component
Description
Infusion Catheter:
Connects to the Connector Interface Cable. The
Infusion Catheter is a multi-lumen catheter that delivers
physician specified fluids into the vasculature.
Note: This is sometimes referred to as the Intelligent
™
Drug Delivery Catheter (IDDC).
Ultrasonic Core:
Connects to the Connector Interface Cable. The
Ultrasonic Core incorporates up to thirty fully
encapsulated, radiopaque piezoelectric ceramic
ultrasound transducers along the distal length of the
shaft. The transducers emit ultrasound therapy radially
along the axis of the treatment zone.
Note: This is sometimes referred to as the MicroSonic
™
Device (MSD).
Front View

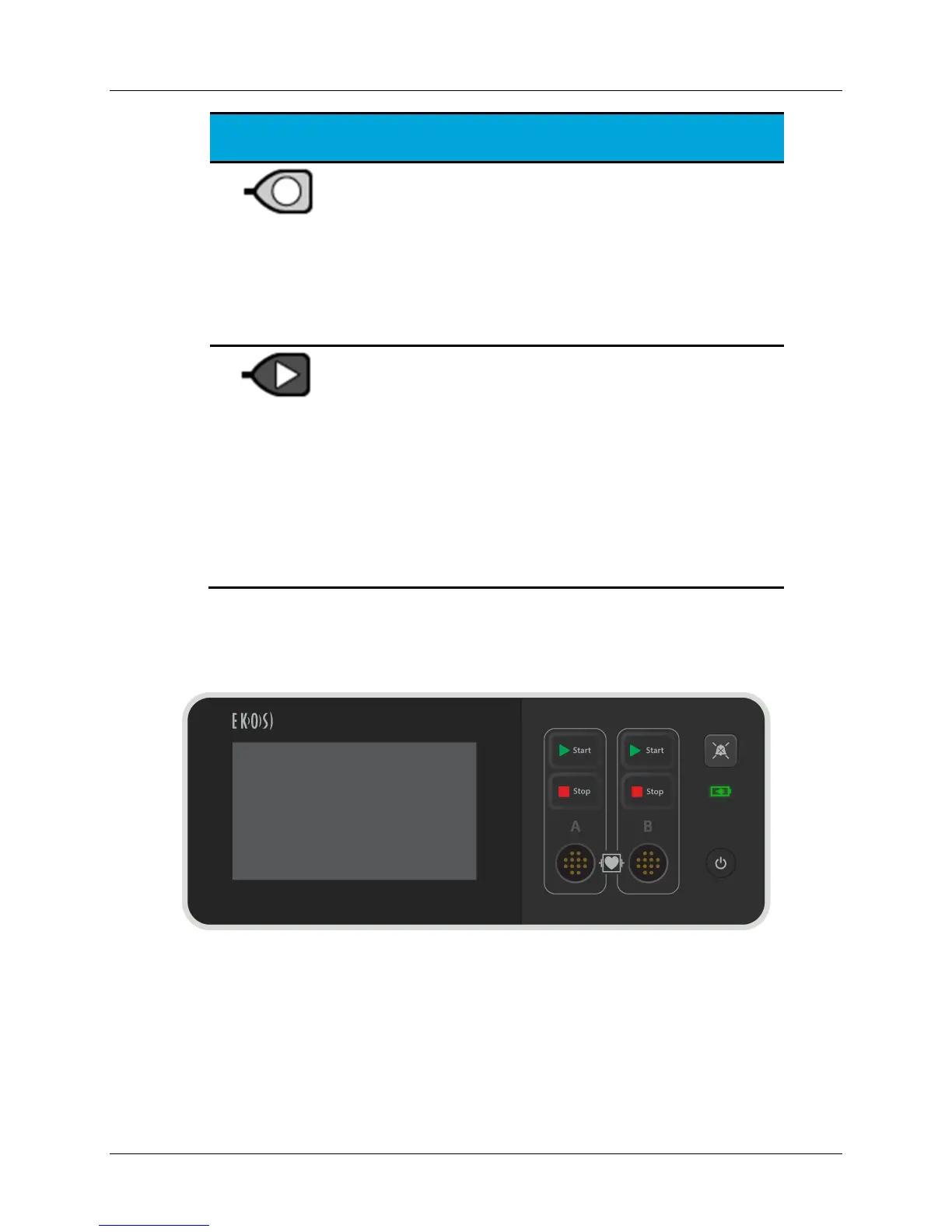

Figure 2. Front View of Control Unit
Display/Touch Screen
Channel A
Channel B
Hard Controls
