BTG EKOS - Back View

Overview
6
Control/
Indictor/
Connector
Description
battery does not start charging, a battery error
may have occurred, call EKOS Help Line.
Ultrasound Channel:
The Control Unit has two ports or channels for
Connector Interface Cable connections. The channels
are labeled A and B and can provide energy for up to
two devices at the same time.
Ultrasound Start Button:
Starts energy transmission for a specific channel when
pressed.
Ultrasound Stop Button:
Stops energy transmission for a specific channel when
pressed.
Connector Interface Cable Receptacle:
For connecting the Connector Interface Cable(s) to the
Control Unit.
Display/Touch Screen:
Shows ultrasound and battery information; and other
messages, settings and soft key buttons.
Back View

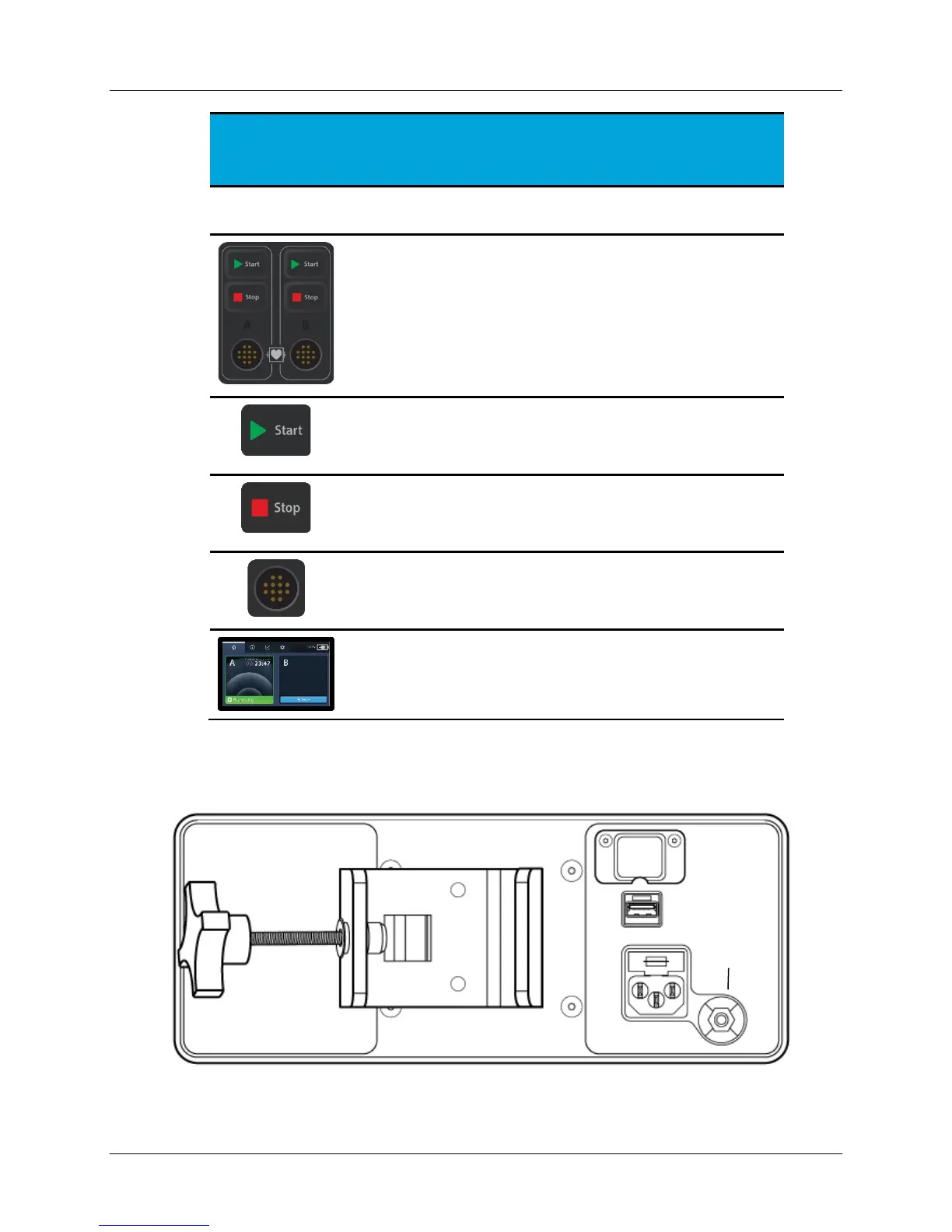

Figure 3. Back View of Control Unit
AC Receptacle
USB Port
Mounting Bracket
Equipotential
Terminal
Service
Panel/Port
