btsr SM-DIN/MULTILOOP/ETH - Page 38

Installation and Connections
SM-DIN/MULTILOOP.. - 2.18 -
TENSION LIMIT

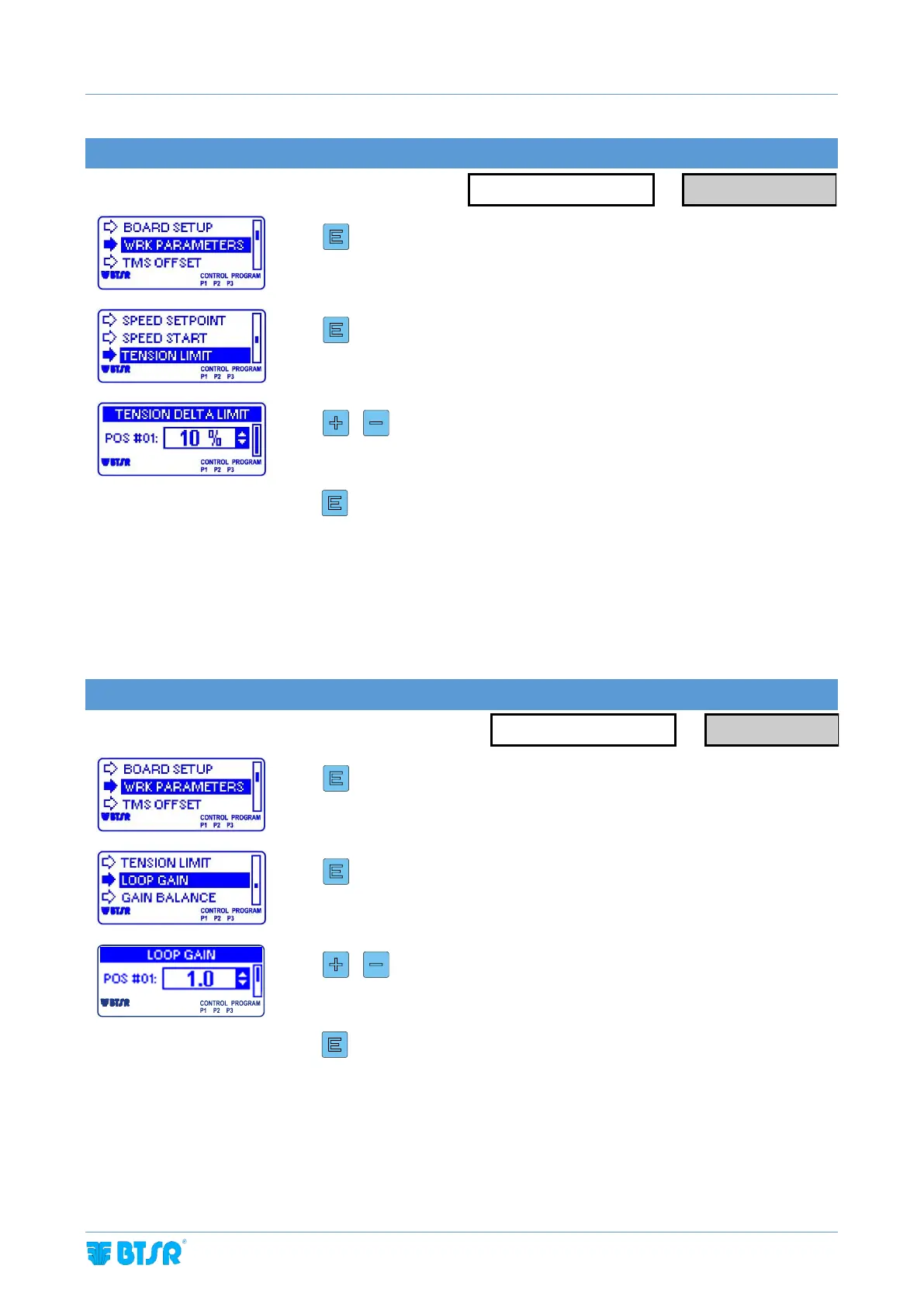

Enter the WRK PARAMETERS menu.
Select TENSION LIMIT: it indicates the tension variation percentage
allowed in order to reach the speed setpoint.
/
To change the parameter value [1 % … 100 %]
3 sec to confirm and go back to WRK PARAMETERS menu
GAIN (SYSTEM REACTIVITY)
Enter the WRK PARAMETERS menu.
Select LOOP GAIN. This parameter allows you to set the system
reactivity to reach the Set Point tension. Higher the value, higher
the reactivity.
/
To change the parameter value, available for each single position
3 sec to confirm and go back to WRK PARAMETERS menu
WRK PARAMETERS
→
LOOP GAIN
WRK PARAMETERS
→
TENSION LIMIT
