PFD GAIN

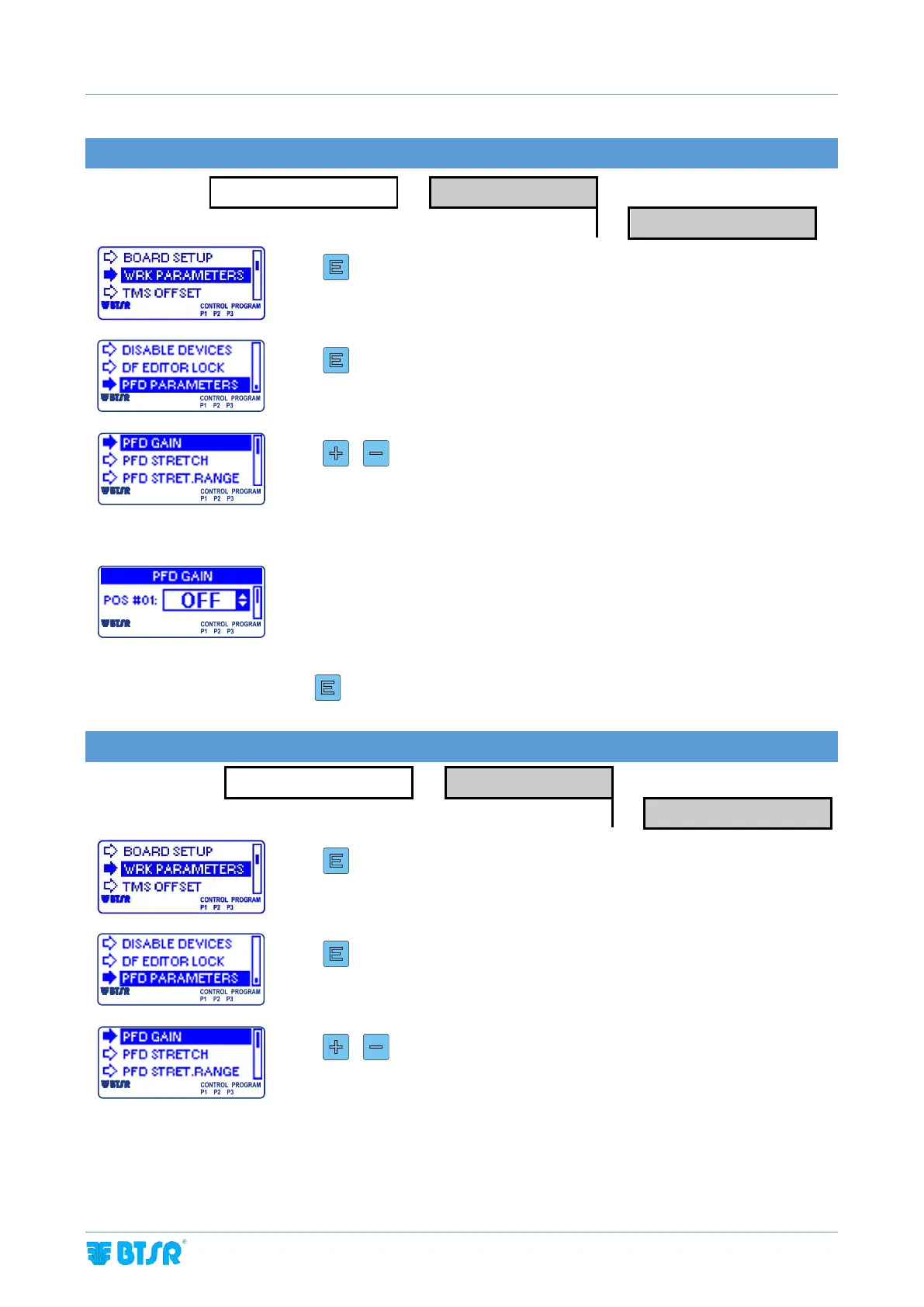

Enter the WRK PARAMETERS menu.
Select PFD PARAMETERS
/
To change the parameter value for each single position
when “OFF” the PFD device is disabled;
when enabled it controls the Prefeeder device Gain. Default value is 5. Decreasing
the parameters is decreased the system reactivity
OFF = PFD device enabled
ON = PFD device disabled
3 sec to confirm and go back to WRK PARAMETERS menu
PFD STRETCH
Enter the WRK PARAMETERS menu.
Select PFD PARAMETERS
/
To change the parameter value for each single position
Control of average stretch difference between DIAPERFEEDER and Prefeeder.
Default value is 500. E.g. with P5.1=500 the average difference of speed between
DIAPERFEEDER and Prefeeder is 50% and pre-tensioning keeps a 100% of elastic
elongation
WRK PARAMETERS
→
PFD PARAMETERS
→
PFD GAIN
WRK PARAMETERS
→
PFD PARAMETERS
→
PFD STRETCH
