8.1.4 Linking heating phases
A heating phase consists of two set points – a start and a stop point. To connect
two consecutive heating phases, place the stop point of the first heating phase
onto the start point of the next phase.
Example:
Starting from the "daytime program" for heating zone 2, you want to join the
Monday heating phase from 11:30 am to 1:00 pm (11:30 to 13:00 h) to the
heating phase 5:00 pm to 10:00 pm (17:00 to 22:00 h). In other words you want
to heat continually from 11:30 am until 10:00 pm (11:30 until 22:00 h).
Your modified program will be saved under the program name "custom" and the
number of the heating zone.

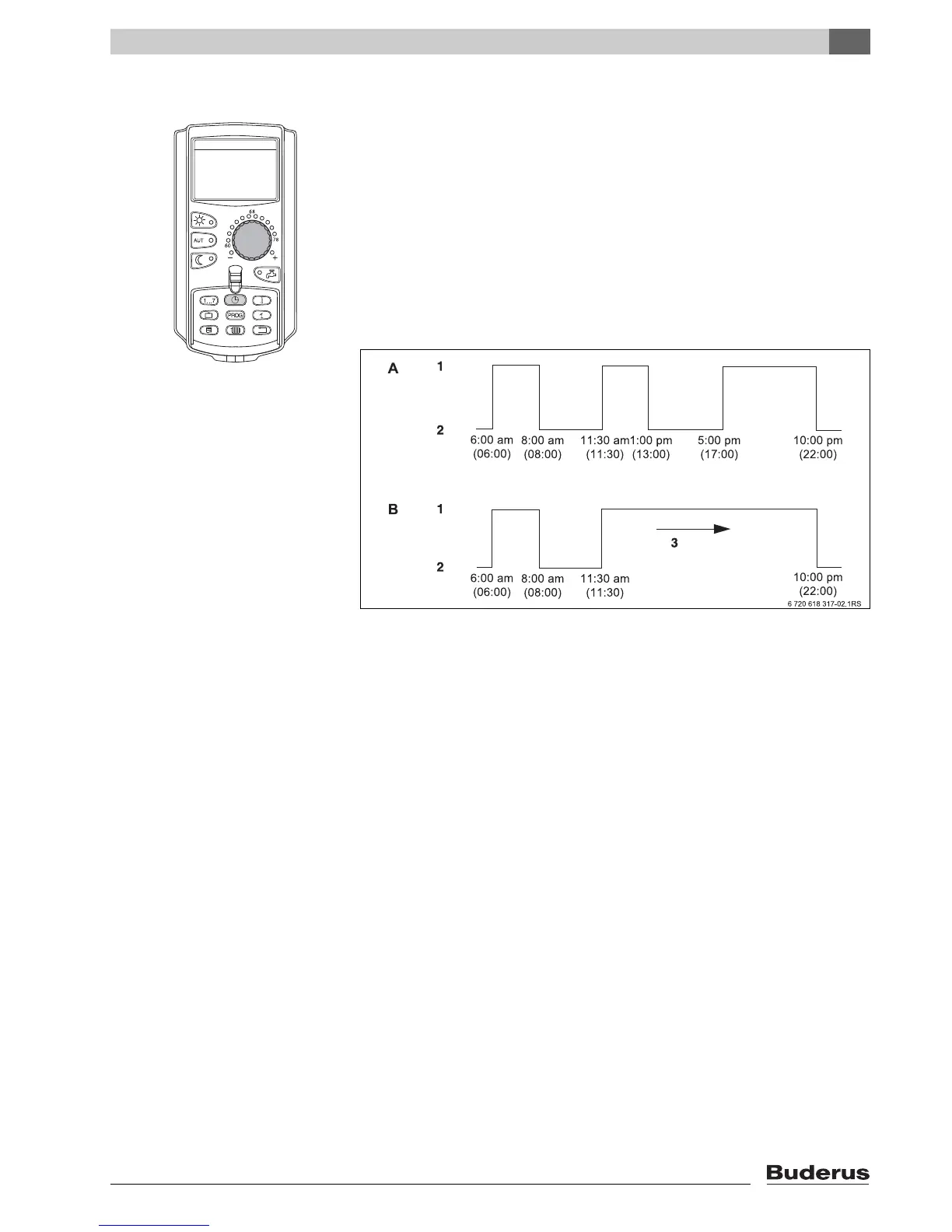

Fig. 19 Connecting two heating phases
A "daytime program"
B New program "custom program 2"
1 Day mode
2 Night mode
3 Turn from 1:00 pm (13:00) to 5:00 pm (17:00)
