7
Boiler block assembly
Logano G515 – 6 720 647 208 (2014/09) 21
7.8.3 Fitting the burner door
▶ Place a few drops of Silastic adhesive 6 inches – 8 inches (15 –
20 cm) apart in the packing grooves ( Fig. 31, [2]) on the front
section ( Fig. 31).
▶ Insert GP sealant rope into the packing groove on the front section.
The sealant rope joint should be located at the side ( Fig. 31, [2]).

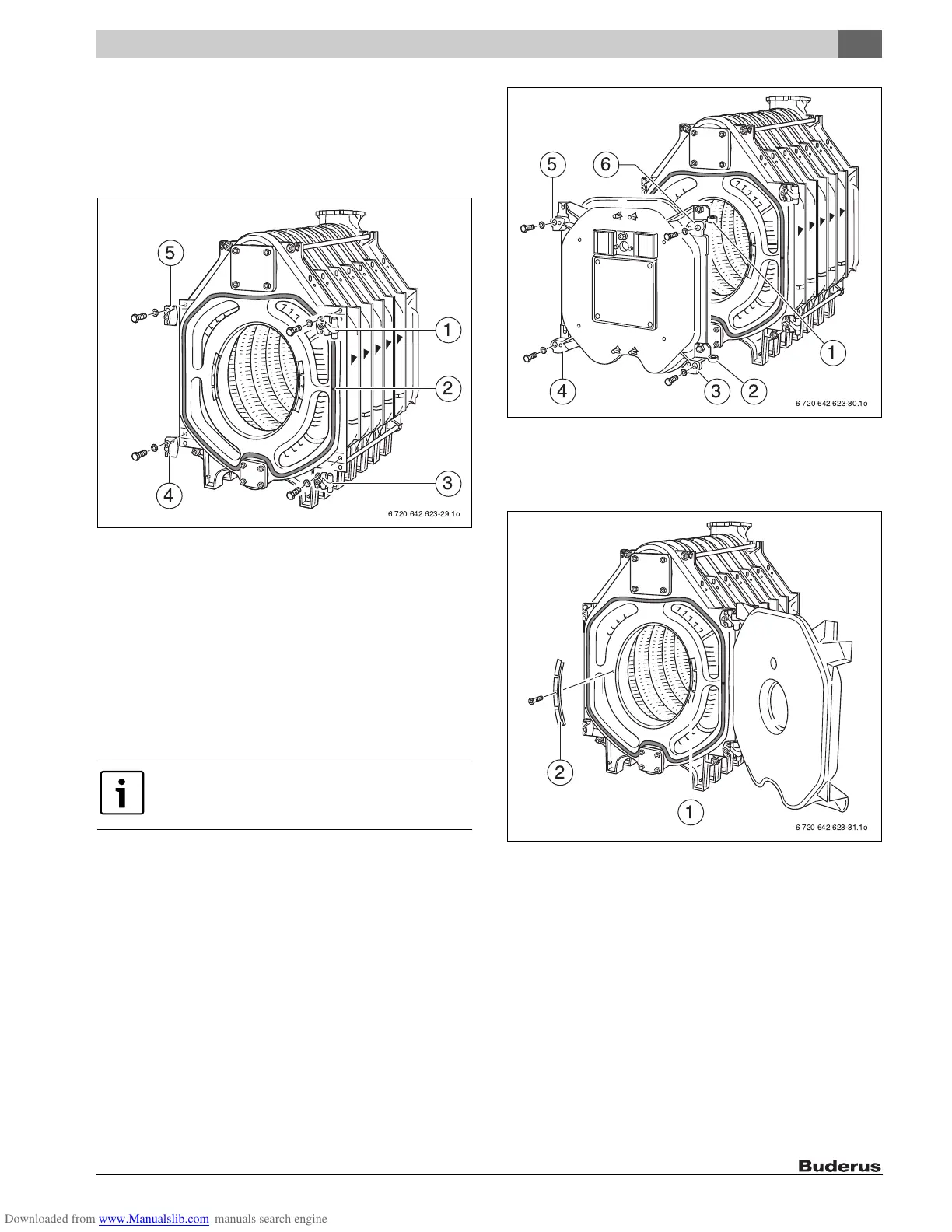

Fig. 31 Fitting the hinge pins and locking brackets
In the factory, both burner door hinge lobes are fitted on the right-hand
side ( Fig. 32 [1 and 2]). For left-hand closing, dismantle the hinge
lobes from the right-hand side and reassemble them on the left-hand
side of the burner door.
▶ Screw the hinge pins (right-hand) to the boiler front section with 2
machine screws M12 × 55 in each case ( Fig. 31, [1 and 3]). For
left-hand closing, secure accordingly on the left-hand side.
▶ Screw on locking brackets with run-on slopes for the burner door
(right-hand closing) to the front section with 2 machine
screws M12 × 55 ( Fig. 31, [4 and 5]). For left-hand closing,
secure accordingly on the right-hand side.
▶ Hook the burner door with the hinge lobes into the hinge pins.
Fig. 32 Hooking in the burner door
7.8.4 Hot gas check plates on front section
The hot gas check plates ( Fig. 33, [1 and 2]) are each screwed with
one hexagon socket screw to the front section at the factory.
Fig. 33 Position of hot gas check plates
Make sure the run-on slopes of the locking brackets are
on the inside of the boiler.
6 720 642 623-30.1o
34
1
2
5 6
