7
Boiler block assembly
Logano G515 – 6 720 647 208 (2014/09)24
▶ Align the longitudinal rails, screw on the brackets at the front and/or
rear section ( Fig. 40, [1 and 3]) and fully tighten.
▶ Push the center brackets ( Fig. 40, [2]) against the longitudinal
rails from below, then screw onto the boiler block and tighten.

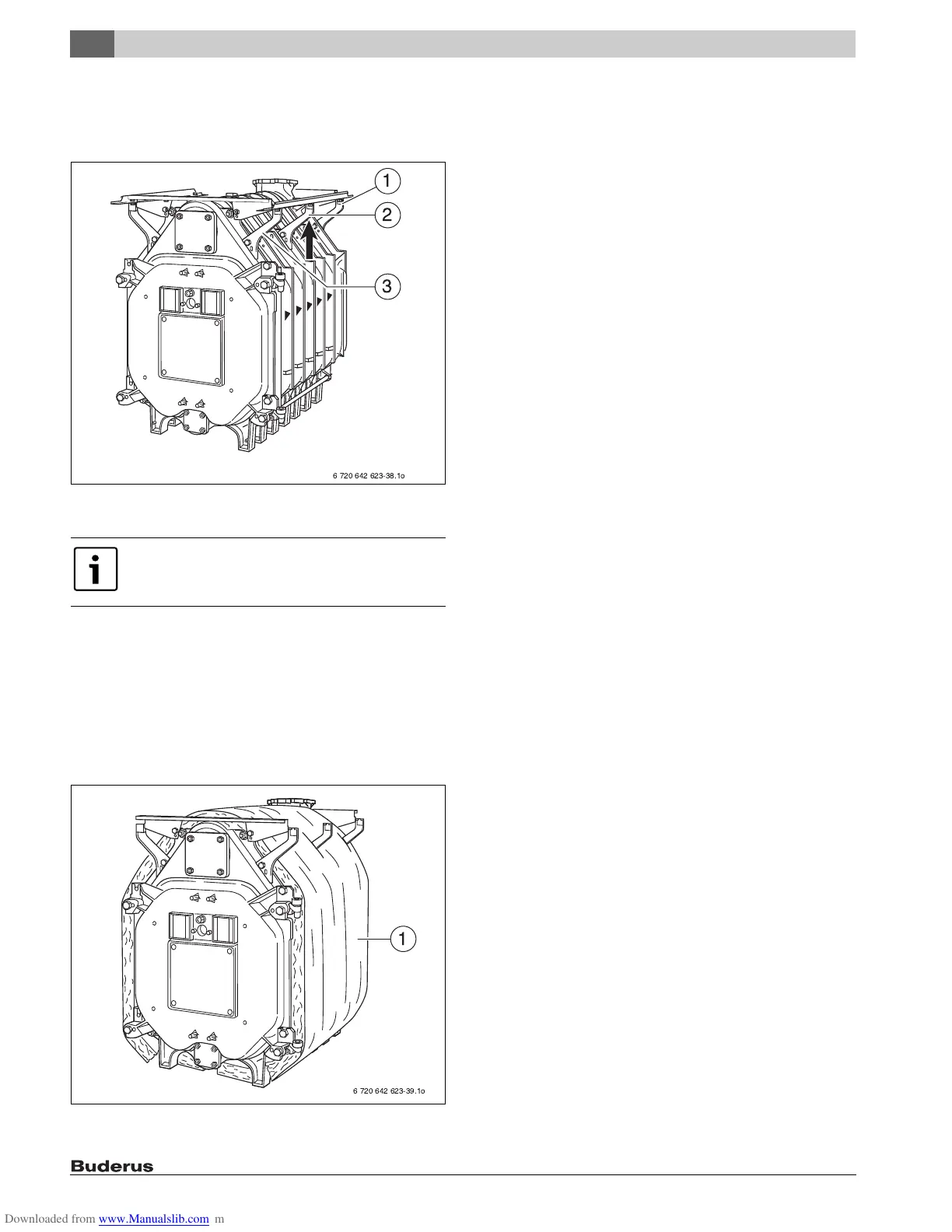

Fig. 40 Aligning the longitudinal rails
7.9.3 Fitting the thermal insulation
▶ The thermal insulation provided ( Fig. 41, [1]) corresponds to the
boiler size. Arrange the thermal insulation on the boiler block as
shown in the diagram in Fig. 42 (the numbers above the thermal
insulation that is shown spread out correspond to the number of
boiler sections).
▶ Guide the brackets through the cut-outs in the thermal insulation.
▶ Push the thermal insulation under the boiler block in the lower
section. The boiler feet are placed in the cut-outs in the thermal
insulation.
Fig. 41 Boiler block with thermal insulation
First of all, take the longitudinal rails off to install the
thermal insulation.
