7
Boiler block assembly
Logano G515 – 6 720 647 208 (2014/09) 23
7.9.2 Fitting the profile rails
▶ Fasten top front crosswise profile rails ( Fig. 37, [2]) to the cast
lugs ( Fig. 37, [1 and 4]) and screw on hand-tight with hexagon
bolts (M8 × 16). The folded edge on the front profile rail must face
forward.
▶ Fasten top rear crosswise profile rail ( Fig. 37, [3]) onto the cast
lugs and screw in place with hexagon bolts (M8 × 16). The folded
edge of the rear profile rail must point toward the rear.

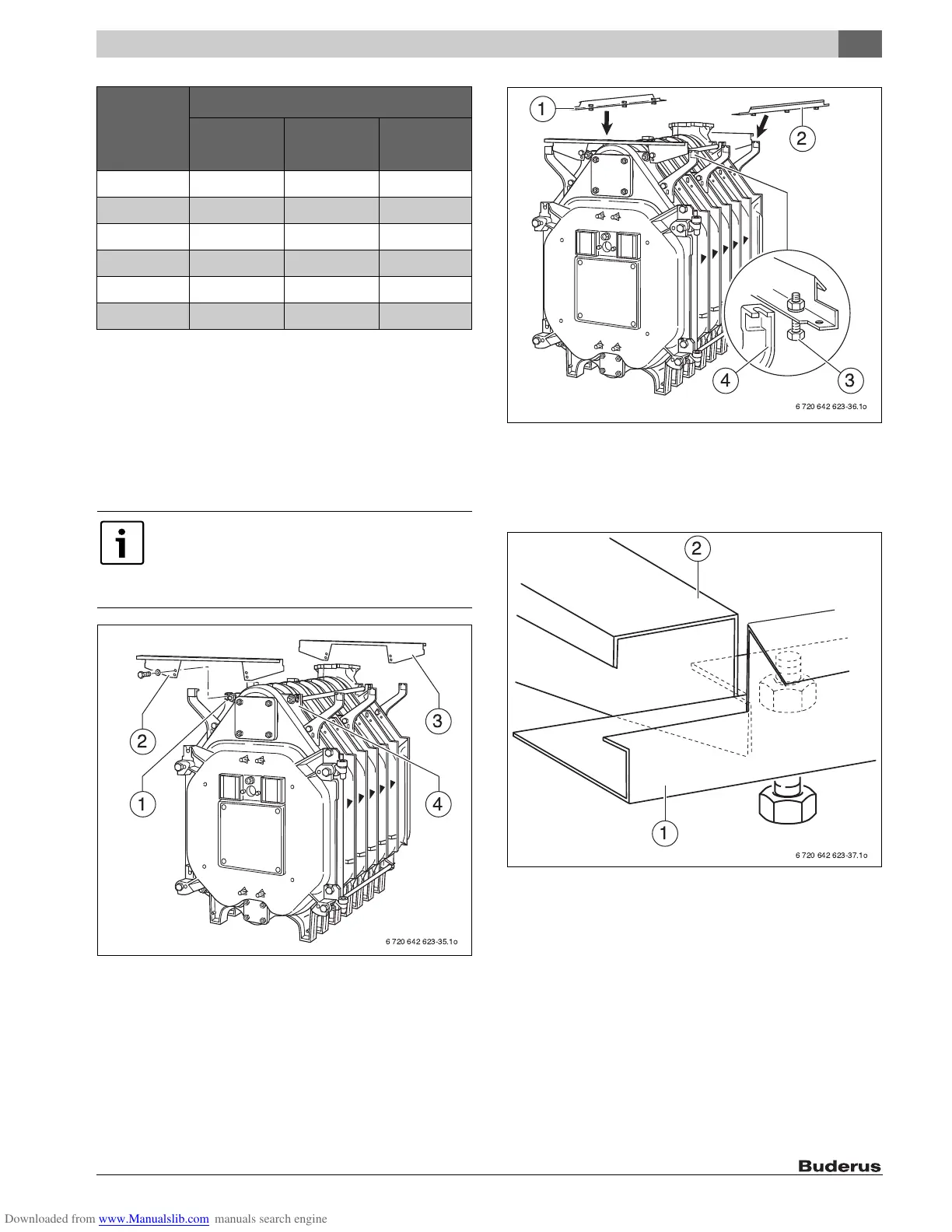

Fig. 37 Fitting the crosswise profile rails
▶ Place the longitudinal rails ( Fig. 38, [1 and 2]) on both brackets
on the rear and front section.
▶ Push longitudinal rails with pre-fitted screws ( Fig. 38, [3]) into
the notches in the brackets ( Fig. 38, [4]) and screw together.
Fig. 38 Installing the longitudinal rails
▶ Place longitudinal rail ( Fig. 39, [1]) with the notch at the front on
the notch of the crosswise profile rail ( Fig. 39, [2]).
▶ The longitudinal rail must be pushed from below against the
crosswise profile rail at the rear of the boiler.
Fig. 39 Place longitudinal rail on crosswise profile rail
Total number of
boiler sections
Right and left-hand installation on...
Front section
Section no.
Intermediate
section
Section no.
Rear section
Section no.
7147
8 1 4 8
9159
10 1 5 10
11 1 4 and 7 11
12 1 4 and 8 12
Table 12
▶ You can only align the longitudinal rails or brackets
before placing the thermal insulation.
▶ Align the longitudinal rails or brackets correctly prior
to installation of the side panels, covers and thermal
insulation.
