7
MA601990_20 [Original Instructions] 10/04/2010
6. Before installing the Vector Power Head check that the attachment collar (located on the power head)
is fully rotated clockwise when viewed from the bottom.
• This will position the long pin to the back of the unit.
• Position the short pin of the attachment collar to the front when installing the power head to the
base.

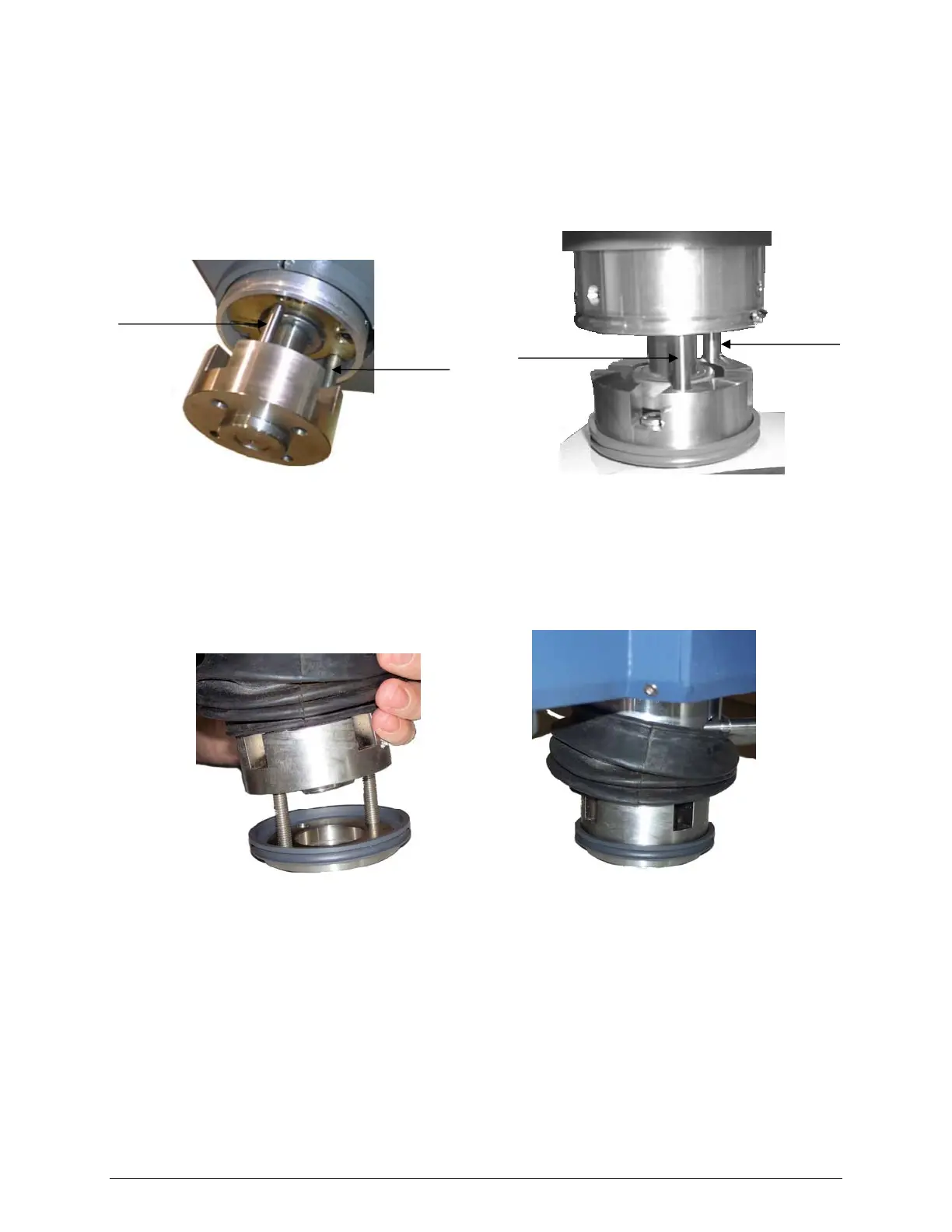

Figure 6 Attachment Collar with Short and Long Pin Positioning
7. Position the Vector Power Head on the grinder polisher through the two guide pins.
8. Place the short pin of the attachment collar to the front of the grinder polisher.
Figure 7 Vector Power Head Guide Pins
9. Insert the two 6 mm fastener screws with washers and spring washers in the open threaded inserts.
10. Remove the two guide pins and insert the two remaining 6 mm fastener screws.
Short Pin
Long Pin
Long Pin
Short Pin
