Nivotemp NT MD
The options are:
LED = output;
the LED lights up when the PNP switching output
is closed.
LED = -output;
the LED lights up when the PNP switching output
is open.
NOTICE
The display function of the status LED affects event logging! Please note chapter “Dia-
gnostic options”.

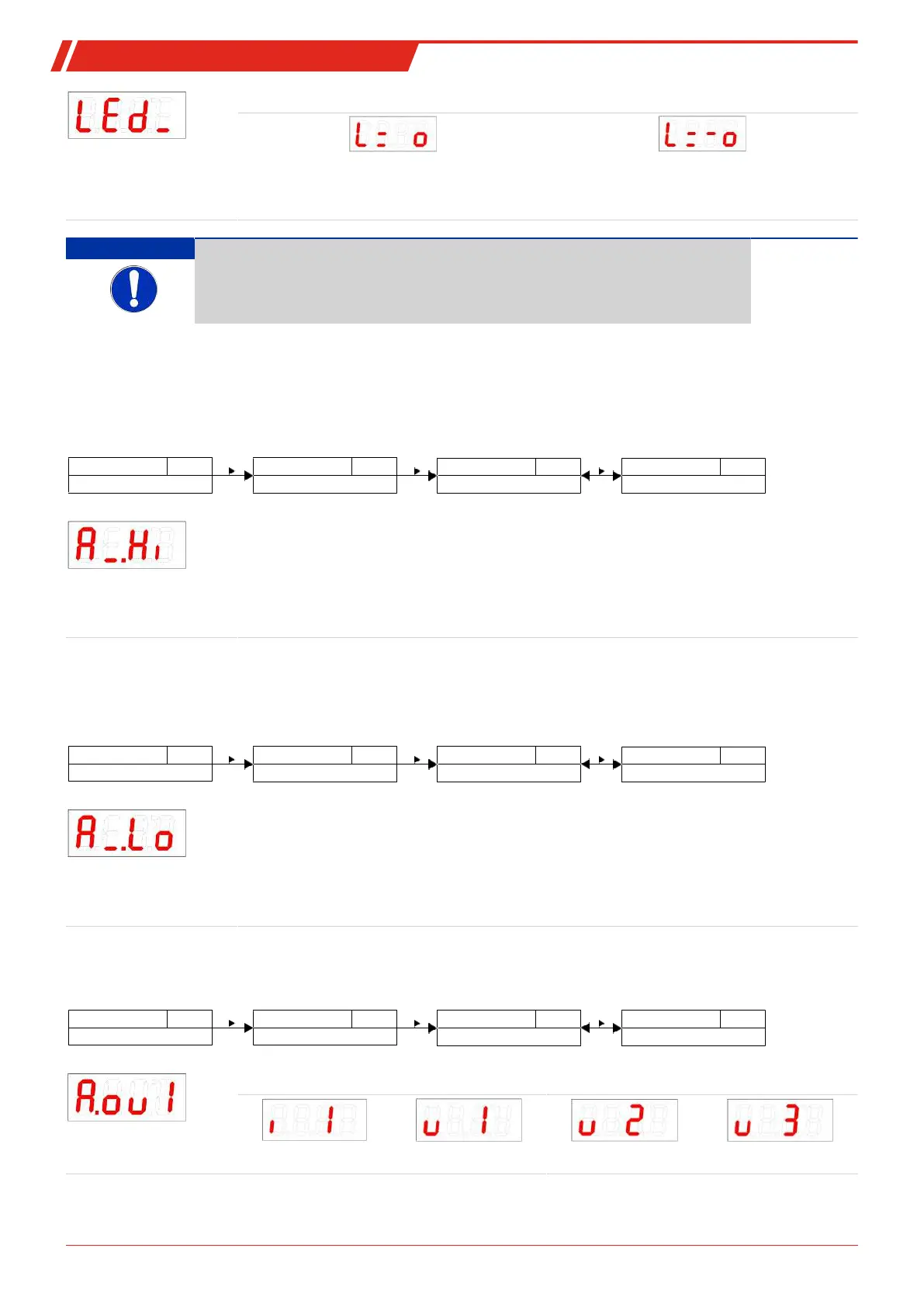

5.8 Analogue outputs
5.8.1 Analogue output x: Assigning the upper limit
Used to configure at which temperature to output the maximum analogue signal. This is configured in menu:
Measured variable
____
An_
Measured variable main menu
Analog OutX
A I.Hi
Analog MaxX
Maximum value assignment
____
Selection menu
[ o.Lo - o.Hi ]
Settings menu Analog X
Setting range:
0 °C to 100 °C
(32 °F to 212 °F)
Note:
– The output range setting must not be less than 10 % of the measuring range: A I.Hi – A I.Lo >=
10%
– If the range is set too low, the analogue value output may have grades.
5.8.2 Analogue output x: Lower limit assignment
Used to configure at which temperature to output the minimum analogue signal. This is configured in menu:
Measured variable
____
An_
Measured variable main menu
Analog OutX
A I.Lo
Analog MinX
Minimum value assignment
____
Selection menu
[ o.Lo - o.Hi ]
Settings menu Analog X
Setting range:
0 °C to 100 °C
(32 °F to 212 °F)
Note:
– The output range setting must not be less than 10 % of the measuring range: A I.Hi – A I.Lo >=
10%
– If the range is set too low, the analogue value output may have grades.
5.8.3 Analogue output x: Signal type assignment
The analogue output can be defined as a voltage or current output with different value ranges. This is configured in menu:
Measured variable
____
An_
Measured variable main menu
Analog OutX
A.ou_
Set A.OUtX
Output function
_ _
Selection menu
i I - u 3
Settings menu Analog X
The options are:
4mA to 20mA
2V to 10V
0V to 10V
0V to 5V
22 Bühler Technologies GmbH BE100022 ◦ 11/2020
